Impact Subsea

Impact Subsea is a leading developer of underwater sensing technologies for the marine industry. Our innovative and high-performance sensors are utilized by a global client base in a diverse range of sectors including offshore energy, environmental and oceanographic research, and defence.

High-Performance Underwater Sensors

Imaging Sonars

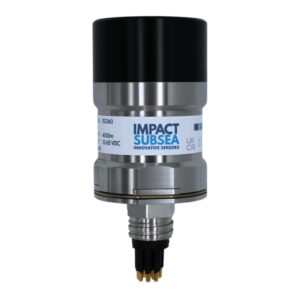

The ISS360 range features the world’s most compact imaging sonar, providing an ideal navigation, obstacle avoidance and target identification solution for ROVs, AUVs and underwater vehicles of any size. Utilizing a broadband composite transducer and advanced CHIRP acoustics (Compressed High Intensity Radar Pulse), these sonars offer exceptional 360-degree imaging clarity, and can be operated at any frequency from 600 to 900kHz.

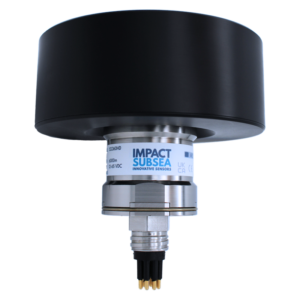

The ISS360 provides depth rating options of 4000 or 6000 meters, while the ISS360HD is rated to 6000 meters and also provides enhanced angular resolution and range. Both variants can be equipped with an optional pitch and roll measurement capability based on MEMS inertial sensors.

More information: ISS360 Imaging Sonars

Profiling Sonar

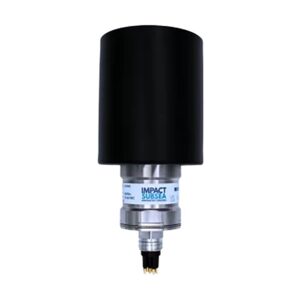

The high-performance ISP360 profiling sonar is a cutting-edge solution for demanding subsea measurement applications. Engineered to deliver unparalleled accuracy, it combines advanced acoustic technology with robust construction, setting a new benchmark in profiling sonar performance.

Designed for operation in harsh underwater environments, the ISP360 boasts a frequency range of 650kHz to 1.25MHz, offering exceptional versatility. Its acoustic systems support Continuous Wave (CW), Compressed High-Intensity Radar Pulse (CHIRP), and the proprietary Impact Subsea Signalling Scheme (IS3) for superior signal clarity and reliability.

More information: ISP360 Profiling Sonar

Altimeters

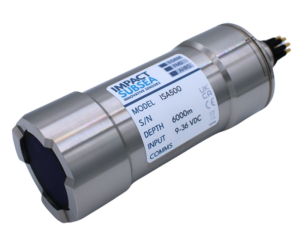

The ISA500 range of advanced altimeters utilizes cutting-edge acoustics to provide exceptionally long-range measurement at distances of over 120 meters, with an accuracy of 1 mm. The sensors can also be optionally upgraded with our Echogram technology, adding full backscatter visualization for single-beam echosounder capabilities with up to 2000 samples per ping. In addition, an integrated MEMS-based AHRS (Attitude & Heading Reference System) can be added for heading, pitch and roll measurement.

The ISA500 is available in either forward-looking or right-angled configurations, ensuring easy integration into a wide variety of underwater vehicles or towed platforms. It can be provided with acetal or rugged titanium housings, with depth options of 1000, 6000 and 11,000 meters.

More information: ISA500 Altimeters

Depth Sensors

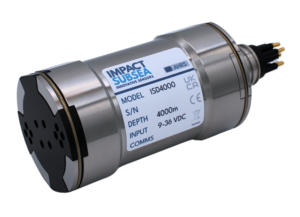

The ISD4000 is a survey-grade depth and temperature sensor that integrates a temperature-compensated piezo-resistive pressure sensor and a high-accuracy and low-latency RTD (Resistance Temperature Detector) probe. Depth data can be provided to ±0.01% or 0.005% full scale accuracy, with multiple options available for range. Temperature data can be provided to 0.1 or 0.05 degrees C accuracy.

The unit can also be fitted with a MEMS-based AHRS (Attitude & Heading Reference System) for heading, pitch and roll measurement. Heading data is highly resilient to temporary magnetic interference, thanks to a built-in soft and hard iron calibration feature.

More information: ISD4000 Depth Sensors

Attitude & Heading Reference System

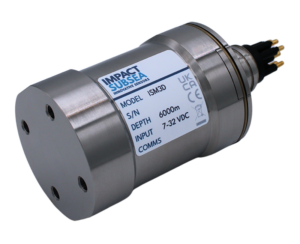

The ISM3D is an advanced high-accuracy AHRS for underwater vehicles and platforms, combining MEMS-based accelerometers, gyroscopes and magnetometers with a powerful sensor fusion processing system. The unit delivers robust heading data with accuracy to ±1° of local magnetic north, and pitch and roll data to ±0.07° accuracy. In environments with large amounts of ferrous metals or other magnetic disturbances, the magnetometers can be deactivated, and heading accuracy can be boosted thanks to a built-in soft and hard iron calibration feature.

The underwater AHRS can be provided in an acetal housing depth-rated to 1000 meters, a rugged 6000 meter-rated titanium housing, or as an OEM system.

More information: ISM3D Attitude & Heading Reference System

Flooded Member Detection System

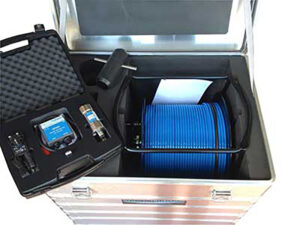

Our ISFMD flooded member detection system is based entirely on reliable high-accuracy ultrasonic technology, making it easy to deploy via ROV or diver with none of the logistical and safety issues posed by radiation-based solutions. Based around our ISA500 ultrasonic sensor probe, the system automatically adjusts acoustic settings, ensuring that both small and large members can be tested accurately and repeatedly. An optional depth sensor can be integrated to automatically record the depth of each check point.

The system is available with a 100 or 200 meter cable reel, and includes a topside box that enables easy plug-and-play connection for all components. Configuration, data reading and visualization, and automatic reporting are all provided by our powerful seaView software.

More information: ISFMD Flooded Member Detection System

seaView Software

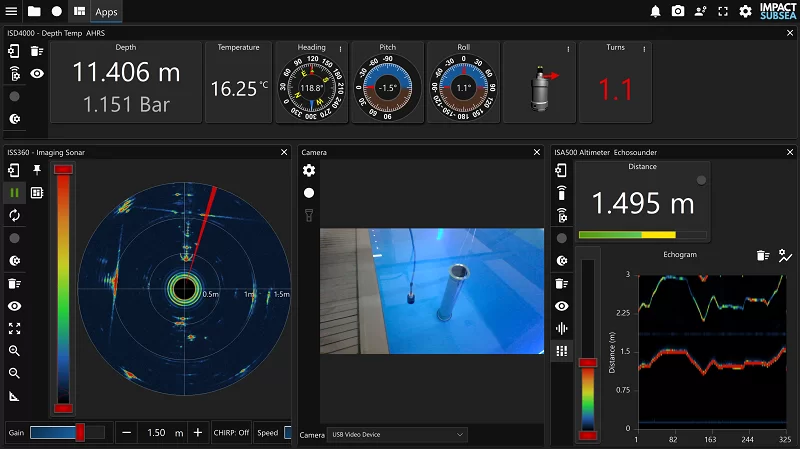

seaView is a powerful and intuitive software package that provides easy data viewing, logging, calibration and configuration for all Impact Subsea sensors. It allows data from multiple sensors to be displayed on screen in real-time, providing an all-in-one hub for controlling complex multi-instrument operations such as ROV surveys.

The regularly updated software provides a variety of useful functionality, including direct viewing and recording of video streams, logging from multiple sensors into a single file with optional GPS data, and custom output string creation.

More information: seaView Software
