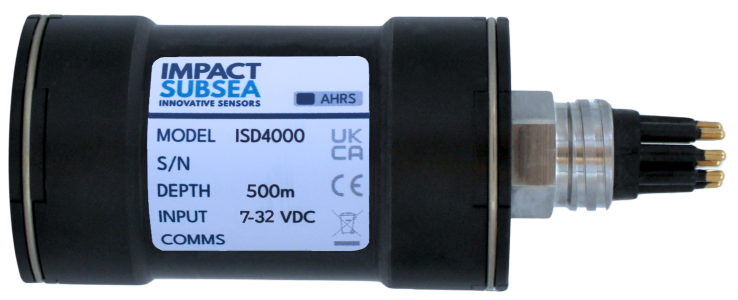

The ISD4000 is a survey-grade depth and temperature sensor that integrates a temperature-compensated piezo-resistive pressure sensor and a high-accuracy and low-latency RTD (Resistance Temperature Detector) probe located close to the water. Depth data can be provided to ±0.01% or 0.005% full scale accuracy, with multiple options available for range and configurable output rates up to 100 Hz. Temperature data can be provided to 0.1 or 0.05 degrees C accuracy.
The unit can also be fitted with a MEMS-based AHRS (Attitude & Heading Reference System) with sensor fusion for highly stable heading, pitch and roll measurement. Heading data is highly resilient to temporary magnetic interference, thanks to a built-in soft and hard iron calibration feature.
| Dimensions (D x L): | 47 x 115.5 mm |
| Weight (Air/Fresh Water): |
0.42/0.28 kg titanium 0.2/0.1 kg acetal |
| Power: | 32 mA @ 24VDC |
| Depth Rating: |
6000m titanium 500m acetal |
| Depth Readings: |
Accuracy ±0.01% full scale Resolution 0.001% full scale |
| Pressure Range: | 10, 30, 50, 100, 300, 400, 600 bar |
| Temperature: |
Accuracy 0.1oC Resolution 0.001oC |
| Attitude: |
Pitch ±90o Roll ±180o Accuracy 0.2o Resolution 0.1o |
| Heading: |
Accuracy ±1o Resolution 0.1o |
