AML Oceanographic

verified

Modular Hydrographic & Oceanographic Instrumentation for Survey, Research & Autonomous Marine Operations Canada

Visit Website

Saved

Save

Contact

Capability OverviewCompany Products Articles Locations Contact Visit Website

AML Oceanographic is a leading designer and manufacturer of sensors and instrumentation that serve a wide range of underwater and marine applications including hydrography, scientific research, offshore construction, and water quality monitoring. The company is a pioneer in the development of field-swappable sensors, and is also the inventor of the time-of-flight sound velocity sensors that are now used widely in multibeam sonar systems.

With 50 years of experience, AML supplies customers on all seven continents, with a wide-ranging after-sales support network and calibration centers around the world.

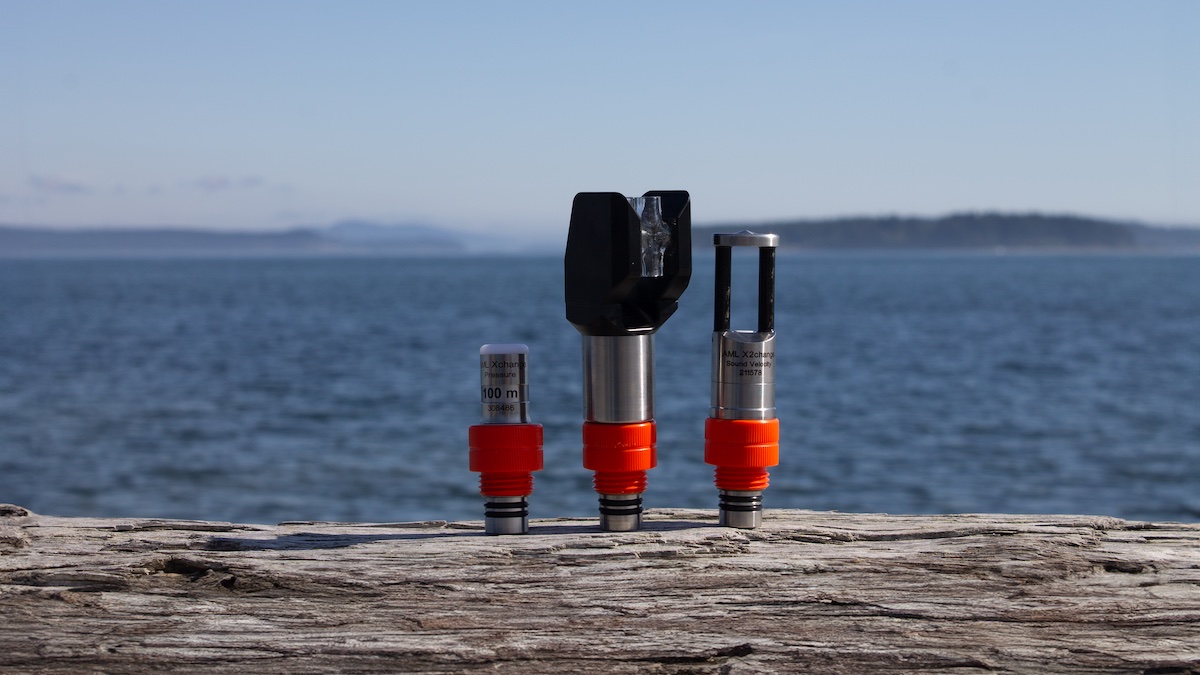

Hydrographic & Oceanographic Sensors

The X2Change series offers the industry’s most extensive portfolio of hydrographic and oceanographic sensors. Compatible with AML Oceanographic’s AML-1, AML-3, and AML-6 instruments, as well as Endura Loggers, these robust field-swappable units can also be integrated into OEM and third-party equipment.

All sensors contain their own embedded calibration, enabling them to be exchanged between different systems without affecting accuracy, and can be easily and directly installed onto the instrument end cap.

Sound Velocity Sensor

Range: 1375–1625 m/s
Accuracy: ±0.025 m/s
Resolution: 0.001 m/s
Max Depth: 6000 m

Sound Velocity & Temperature Sensor

Range: 1375–1625 m/s, -5 to + 45 °C
Accuracy: ±0.025 m/s, 0.01 °C
Resolution: 0.001 m/s, 0.001 °C
Max Depth: 6000 m

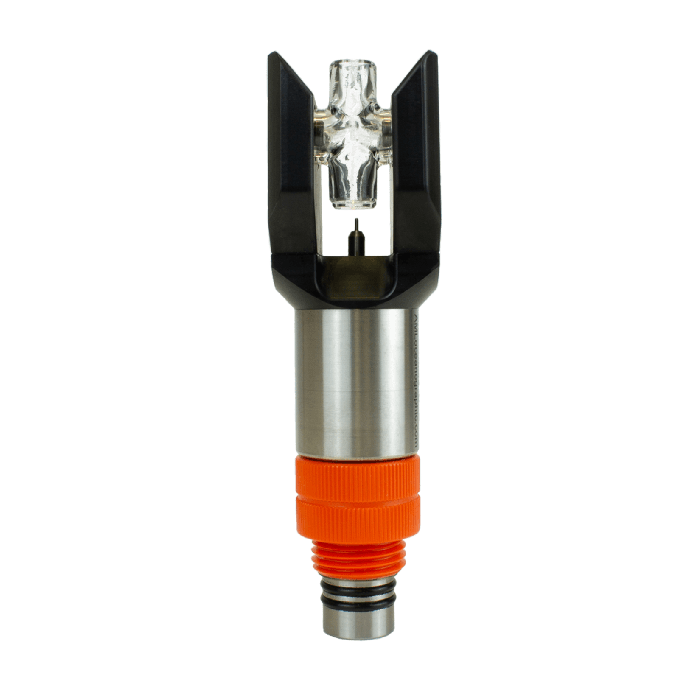

Conductivity & Temperature Sensor

Range: 0-90 mS/cm, -5 to + 45 °C
Accuracy: ±0.01 mS/cm, 0.005 °C
Resolution: 0.001 mS/cm, 0.001 °C
Max Depth: 6000 m

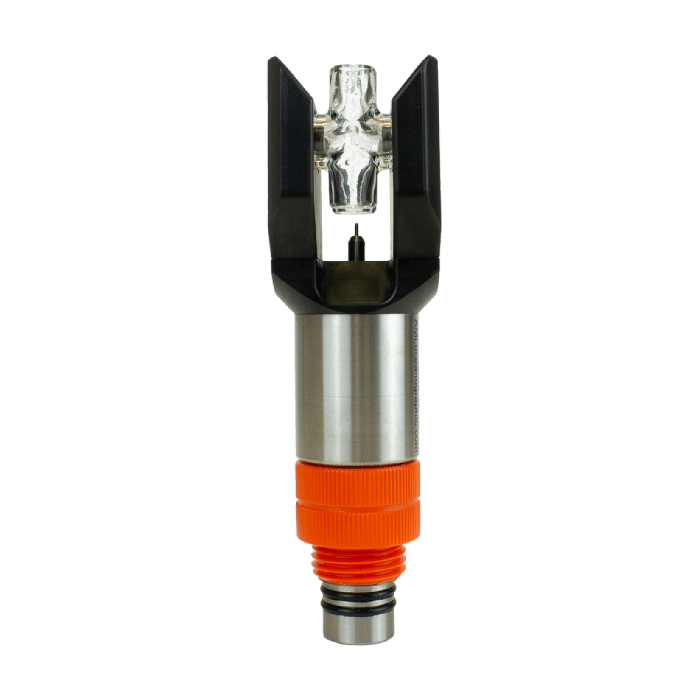

High Accuracy Conductivity & Temperature Sensor

Range: 0-90 mS/cm, -5 to + 45 °C
Accuracy: ±0.003 mS/cm, 0.002 °C
Resolution: 0.001 mS/cm, 0.001 °C
Max Depth: 6000 m

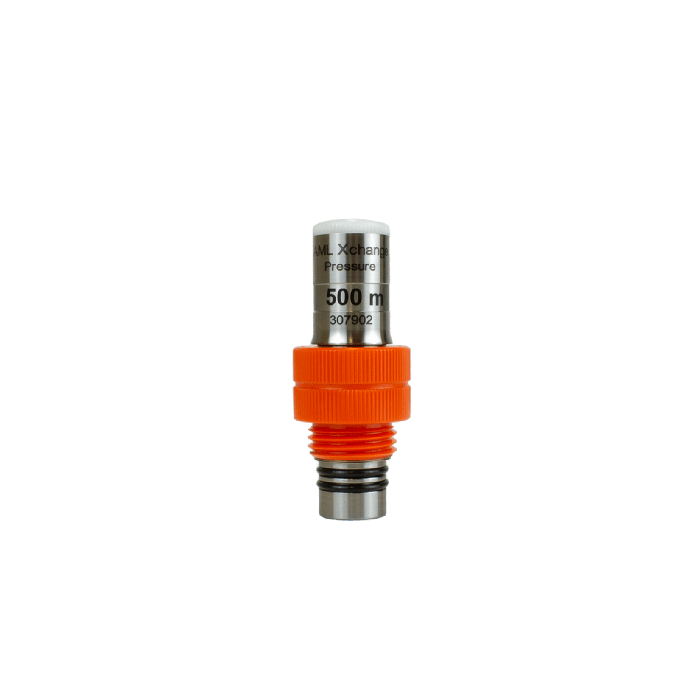

Pressure Sensor

Range: 0-50 to 0-6000 dBar
Accuracy: ±0.05 % FS
Resolution: 0.02 % FS
Max Depth: 6000 m

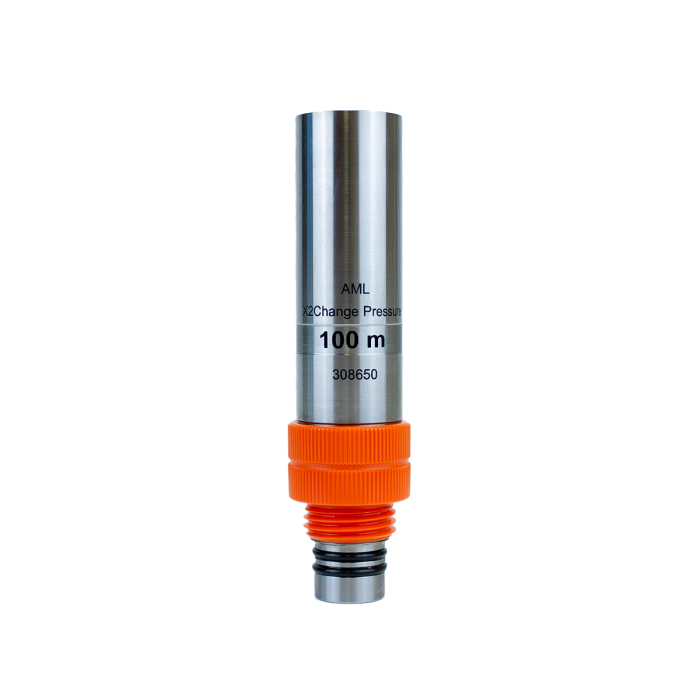

High Accuracy Pressure Sensor

Range: 0-6000 dBar
Accuracy: ±0.01 % FS
Resolution: 0.01 % FS
Max Depth: 100 to 6000 m

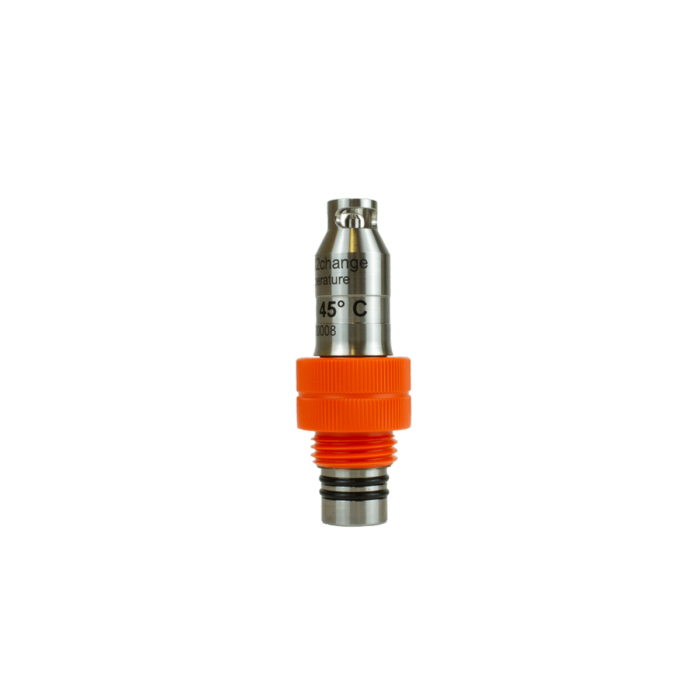

Temperature Sensor

Range: -5 to + 45 °C
Accuracy: ±0.005 °C
Resolution: 0.001 °C
Max Depth: 6000 m

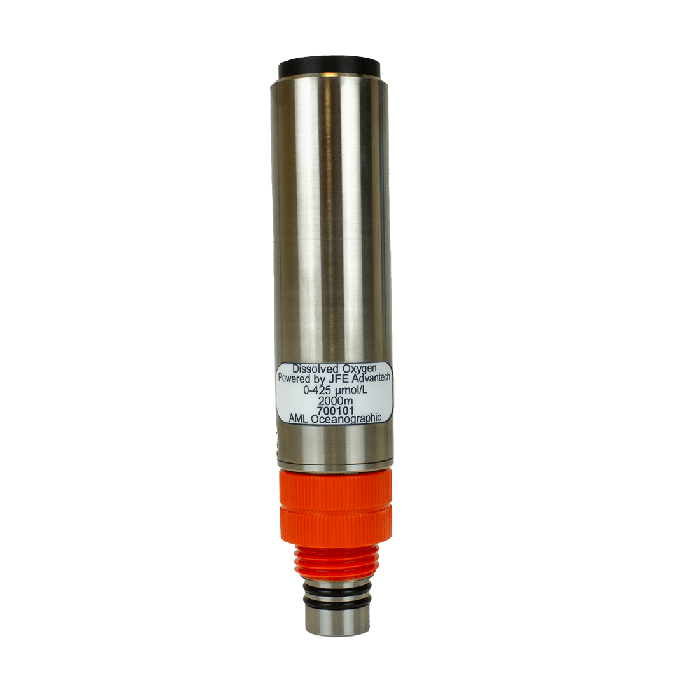

Dissolved Oxygen Sensor

Range: 0–425 μmol/L
Accuracy: ±2 % of reading or 2.0 μmol/L
Resolution: 0.01 μmol/L
Max Depth: 6000 m

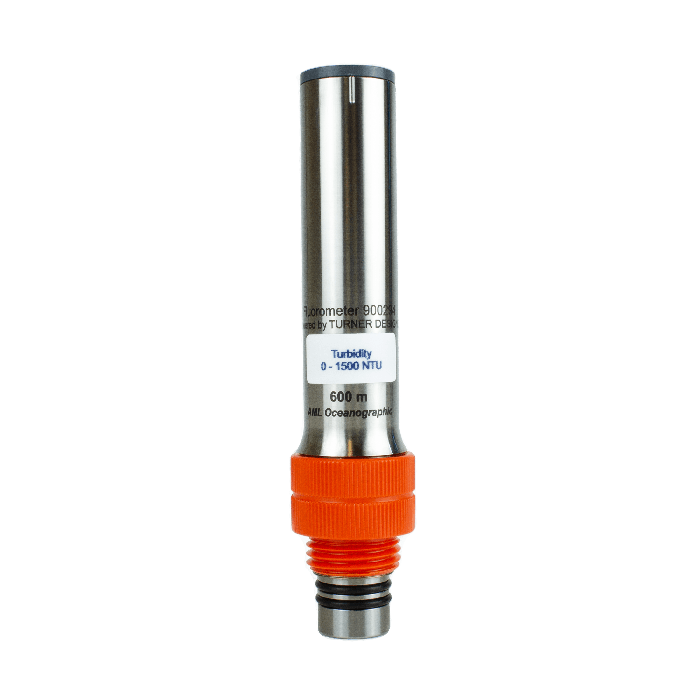

Turbidity Sensor

Range: 0-200 NTU
Accuracy: ±2 % of reading or 0.2 NTU
Resolution: 0.01 NTU
Max Depth: 2000 m

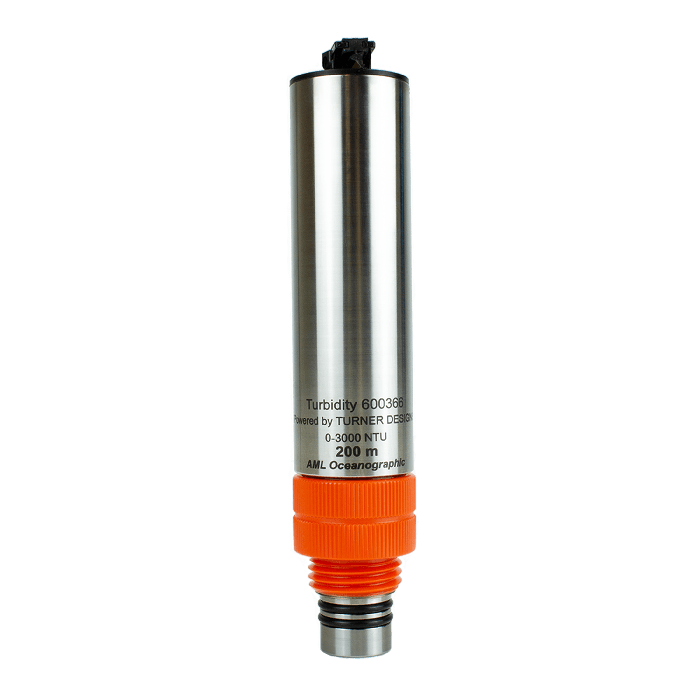

Turbidity with Wiper Sensor

Range: 0-3000 NTU
Accuracy: ±2 % of reading or 0.2 NTU
Resolution: 0.01 NTU
Max Depth: 200 m

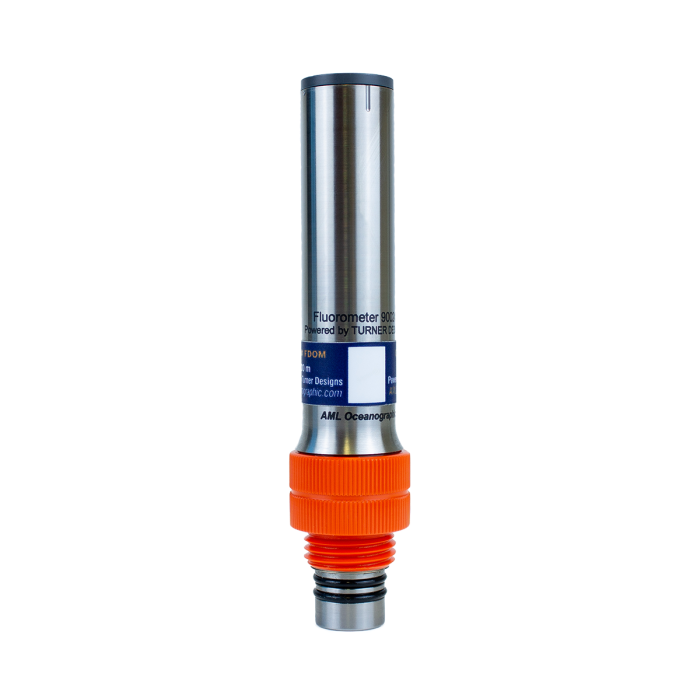

CDOM Sensor

Range: 0–1500 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

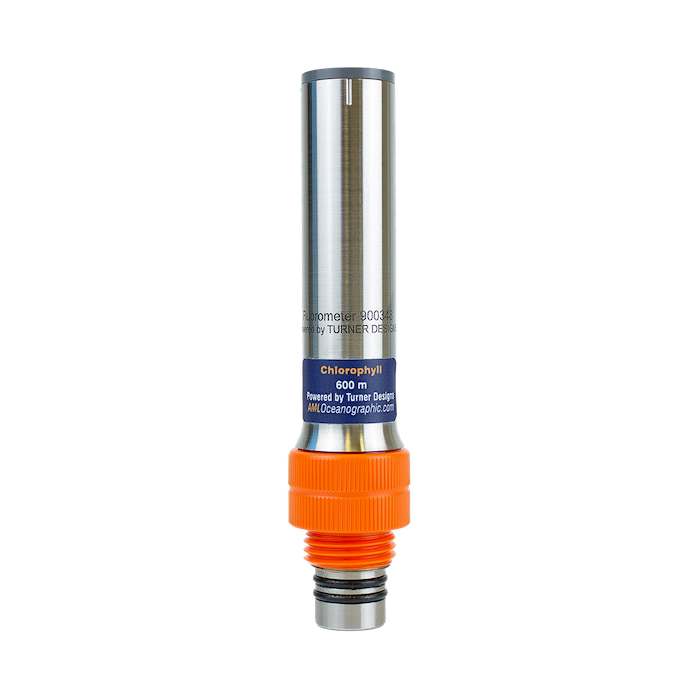

Chlorophyll A&B Red Excitation Sensor

Range: 0–500 μg/L
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

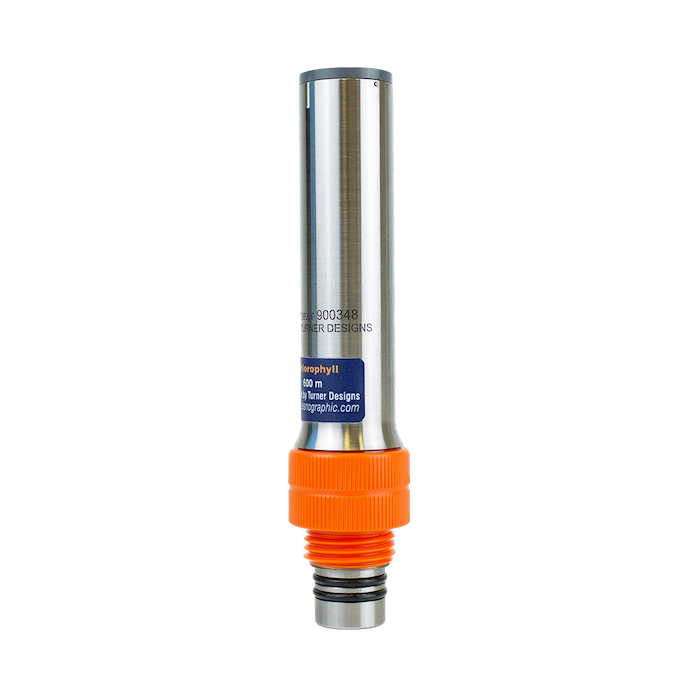

Chlorophyll A&B Blue Excitation Sensor

Range: 0–500 μg/L
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

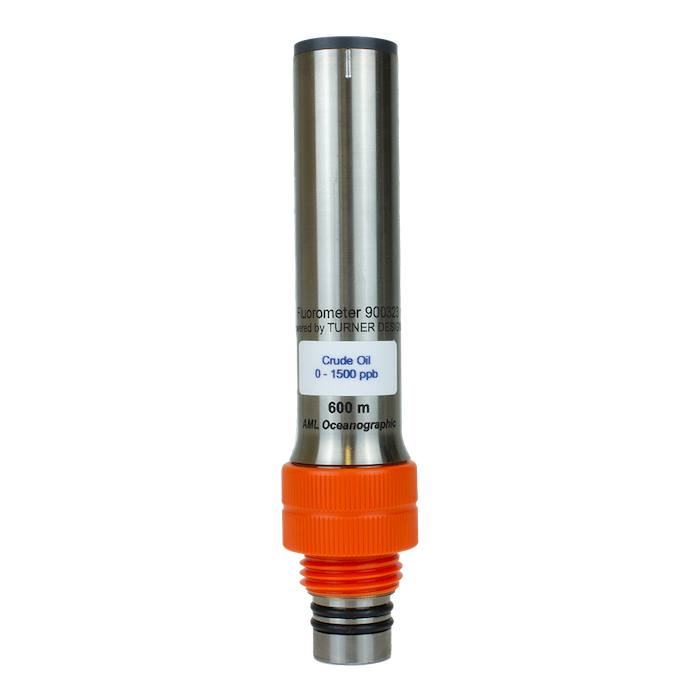

Crude Oils Sensor

Range: 0–1500 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

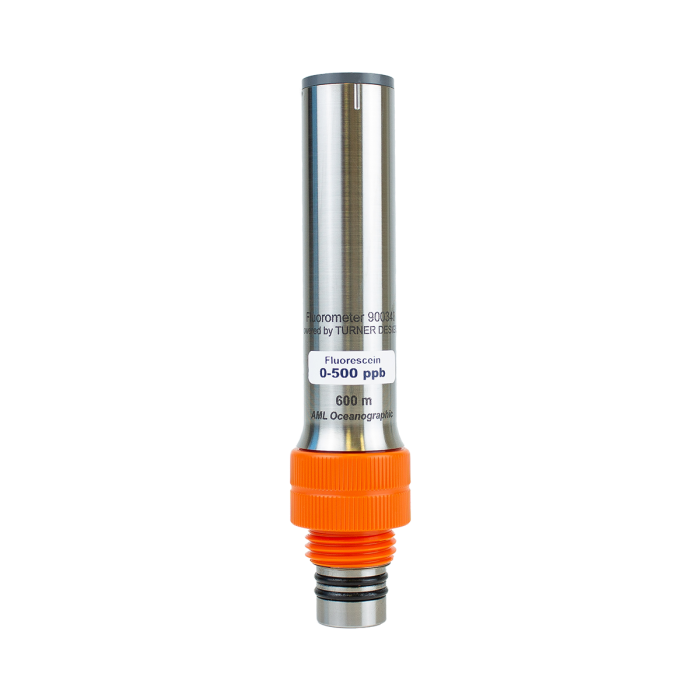

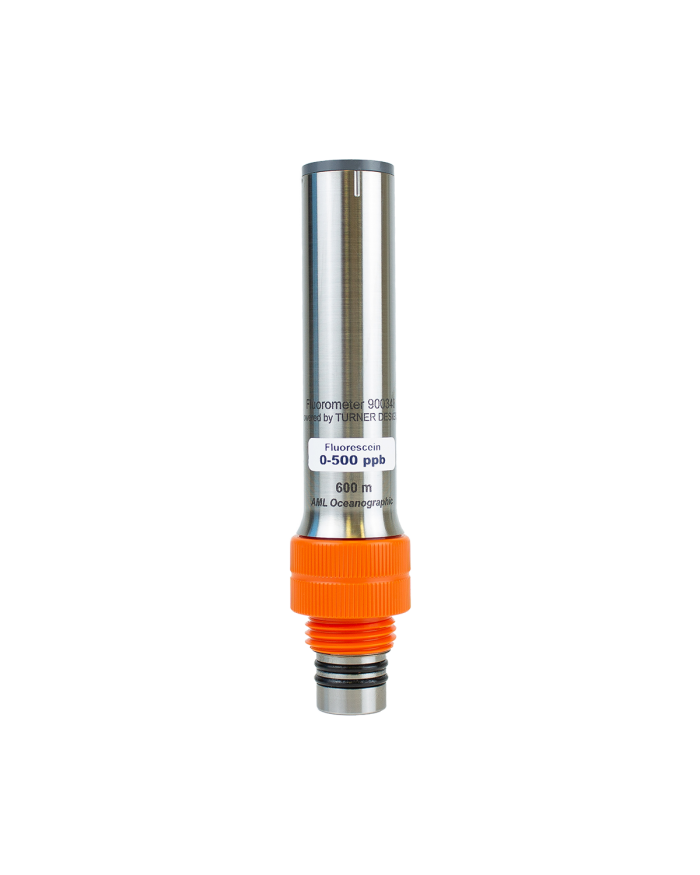

Fluorescein Sensor

Range: 0–150 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

Optical Brighteners Sensor

Range: 0–300 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

Phycocyanin Sensor

Range: 0–4500 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

Phycoerythrin (BGA) Sensor

Range: 0–700 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

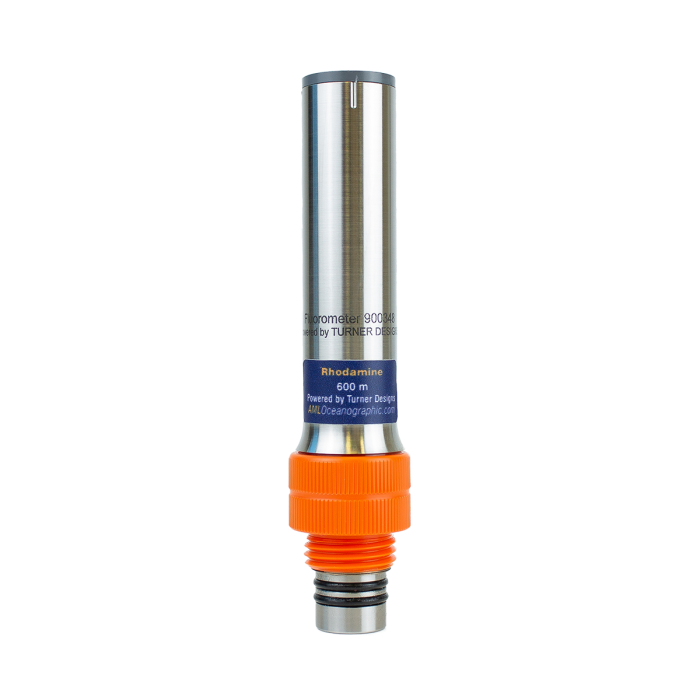

Rhodamine Sensor

Range: 0–200 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

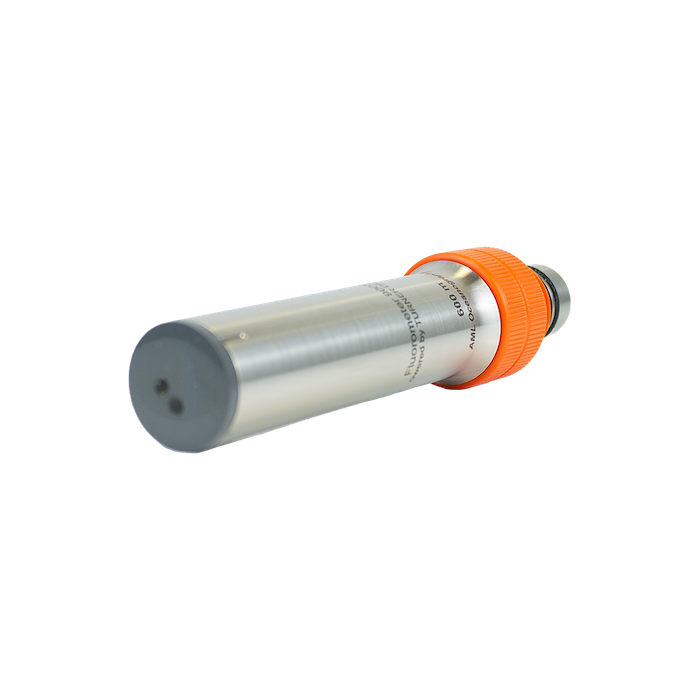

Tryptophan Sensor

Range: 0–5000 ppb
Accuracy: Linearity 0.99 R2
Resolution: 0.01
Max Depth: 2000 m

Single- & Multi-Sensor Instrumentation

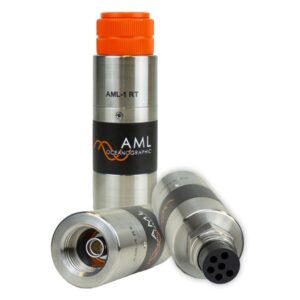

Single-Sensor Data Probe

The AML-1 is a modular and versatile underwater data probe that can be fitted with any single sensor from the X2Change family. It is ideal for beam steering in multibeam sonar applications, as well as data collection on buoys and underwater observatories.

Offering real-time data streaming via serial RS-232 or RS-485, it features a robust titanium housing that allows it to operate at depths of down to 6000 meters.

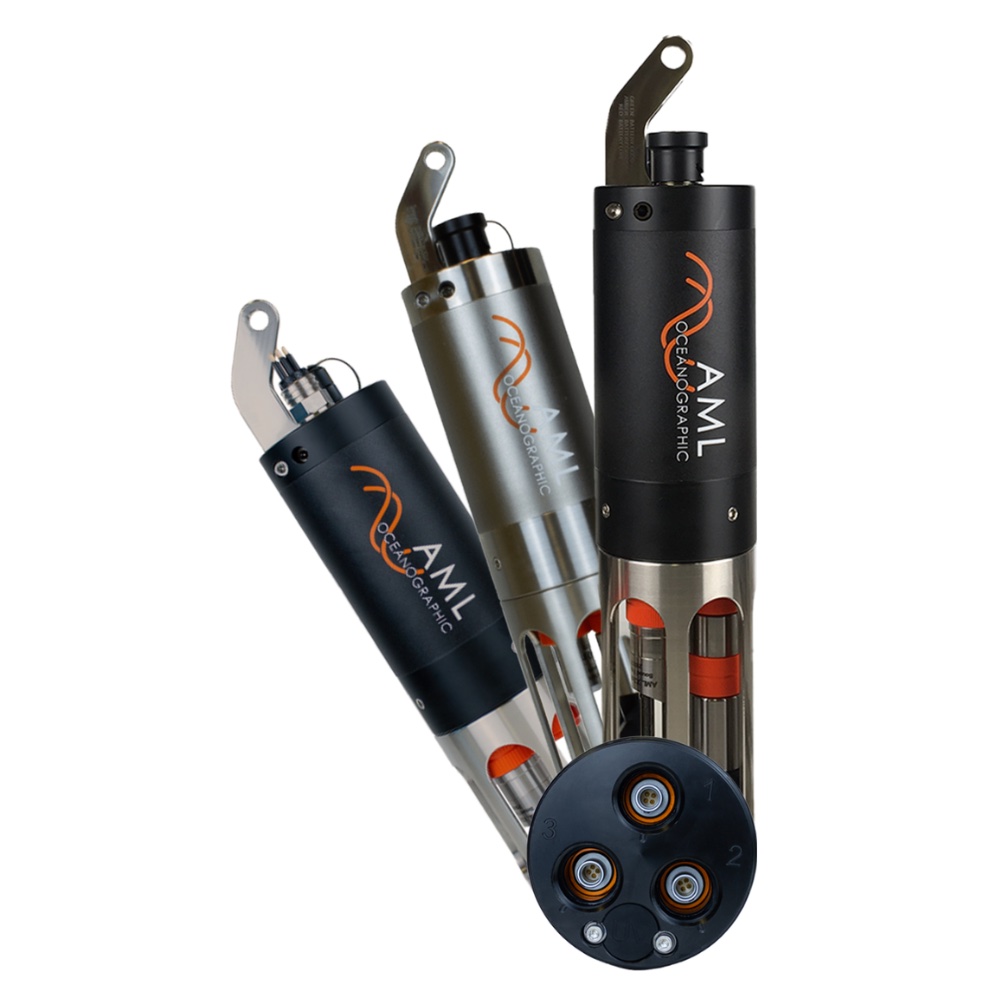

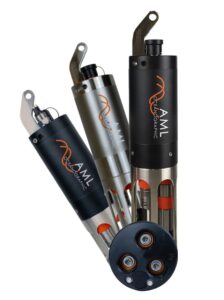

Multi-Sensor Oceanographic Profiler

The AML-3 is a highly versatile oceanographic instrument for water column profiling and monitoring applications, and can be fitted with any three sensors from the X2Change family. It is ideal for underwater vehicles as well as fixed-site observatories. As some X2Change sensors are dual-parameter, this allows the AML-3 to directly measure up to four distinct parameters simultaneously.

The instrument is available in three variants – an entry-level system for real-time data streaming without battery or memory, a version with a Lithium-ion battery and onboard memory, and a premium option that offers both real-time streaming and data logging capabilities.

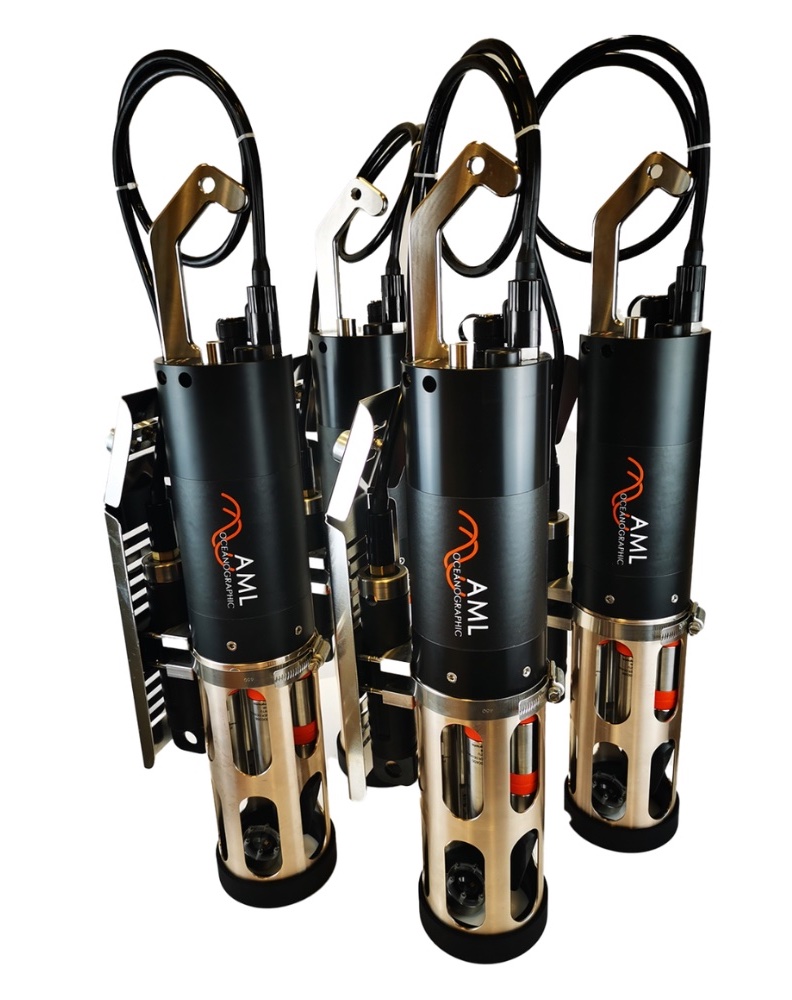

Multi-Parameter Underwater Sonde

The AML-6 is a multi-parameter sonde that is designed to combine CTD data with other oceanographic parameters such as Dissolved Oxygen, pH, ORP, or Fluorometric data. It can be equipped with up to six sensors from the X2Change family, and can also be fitted with UV biofouling control to ensure enhanced data quality and reduced maintenance requirements.

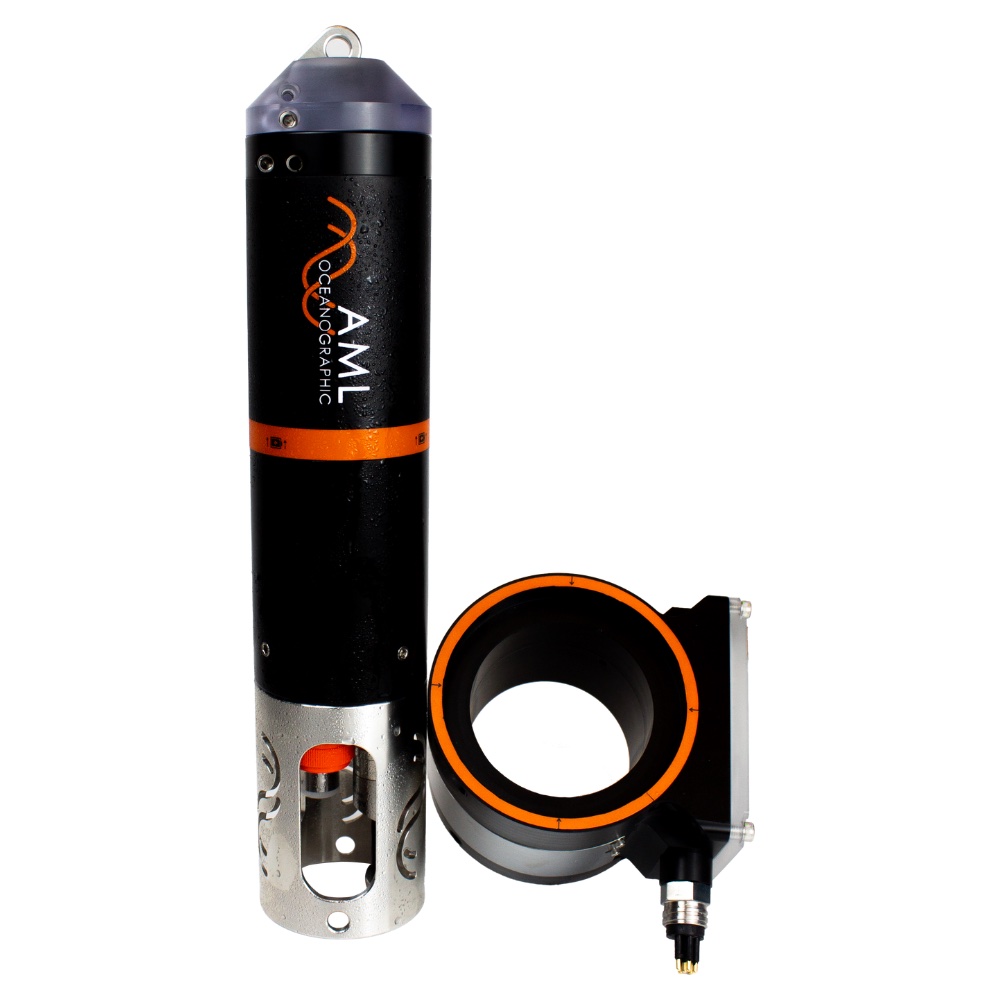

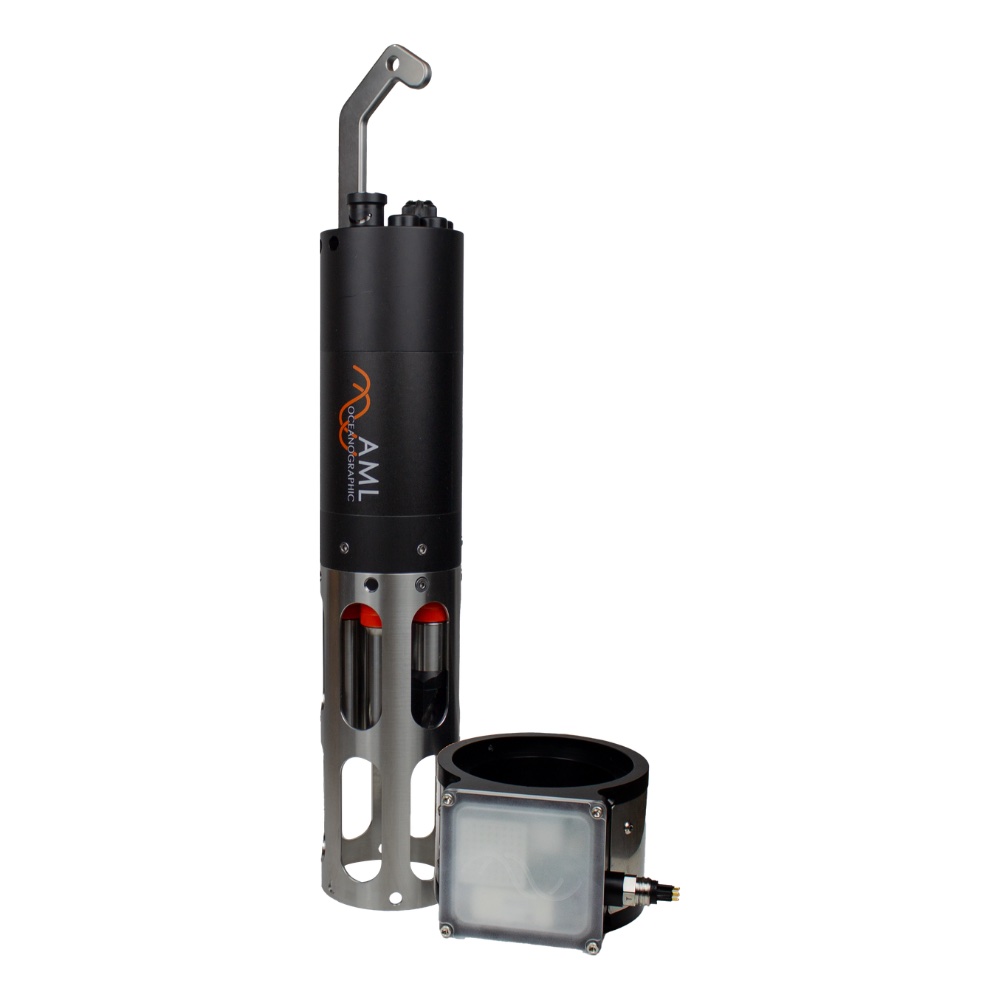

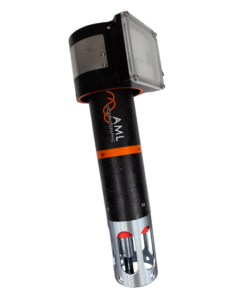

Endura Loggers

AML’s Endura Loggers are connector-free and wirelessly charged instruments that have been designed specifically for demanding unmanned and autonomous vessel applications. With effectively unlimited endurance and enhanced mechanical reliability, these advanced profilers unlock new capabilities for hydrographic and oceanographic surveyors.

Endura Loggers are available with three or six ports for field-swappable X2Change sensors.

UV Biofouling Control

AML Oceanographic’s advanced biofouling solutions are designed to protect underwater sensors and marine equipment, utilizing ultraviolet lamps to prolong the time between required maintenance without utilizing TBT or other harmful chemicals.

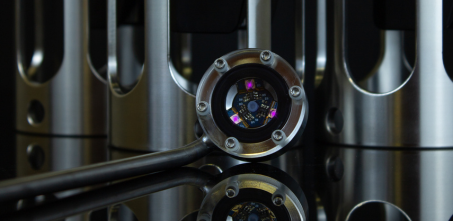

Street Lamp UV is a highly efficient solution designed to be directly integrated with AML instrumentation, drawing just 1W of power at 12V. With a maximum depth rating of 500 m, it ensures optimal biofouling control within a range of approximately 30 cm.

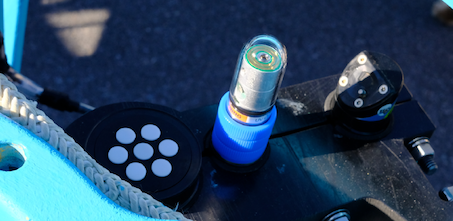

The Cabled UV system is intended for applications where all AML instrumentation sensor ports are occupied. It is available in both vertical and horizontal configurations, with minimal power draw and excellent anti-biofouling performance.

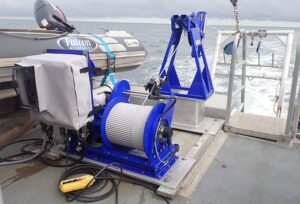

Moving Vessel Profilers

AML’s MVP (Moving Vessel Profiler) systems are designed to continuously and autonomously collect high-resolution water column data in real time, offering unmatched survey efficiency and the ability to capture a wide array of environmental and scientific parameters. With options for USVs, smaller survey vessels, and larger oceanographic platforms, the MVP product portfolio offers the state of the art in underway profiling systems.

MVP Roam
Designed for maximum portability
Up to four data collection parameters
Operates at depths of down to 60 m

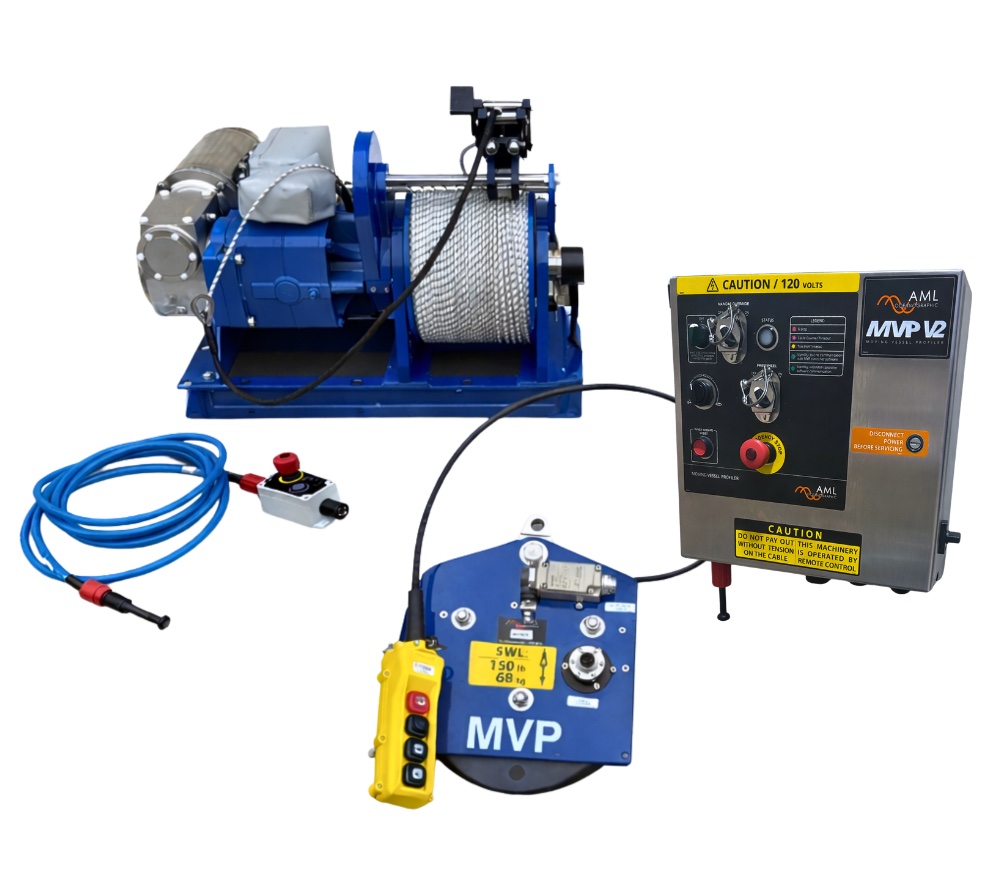

MVP30 V2
Smallest fixed system with 185 m cable
Up to six data collection parameters
Operates at depths of down to 125 m

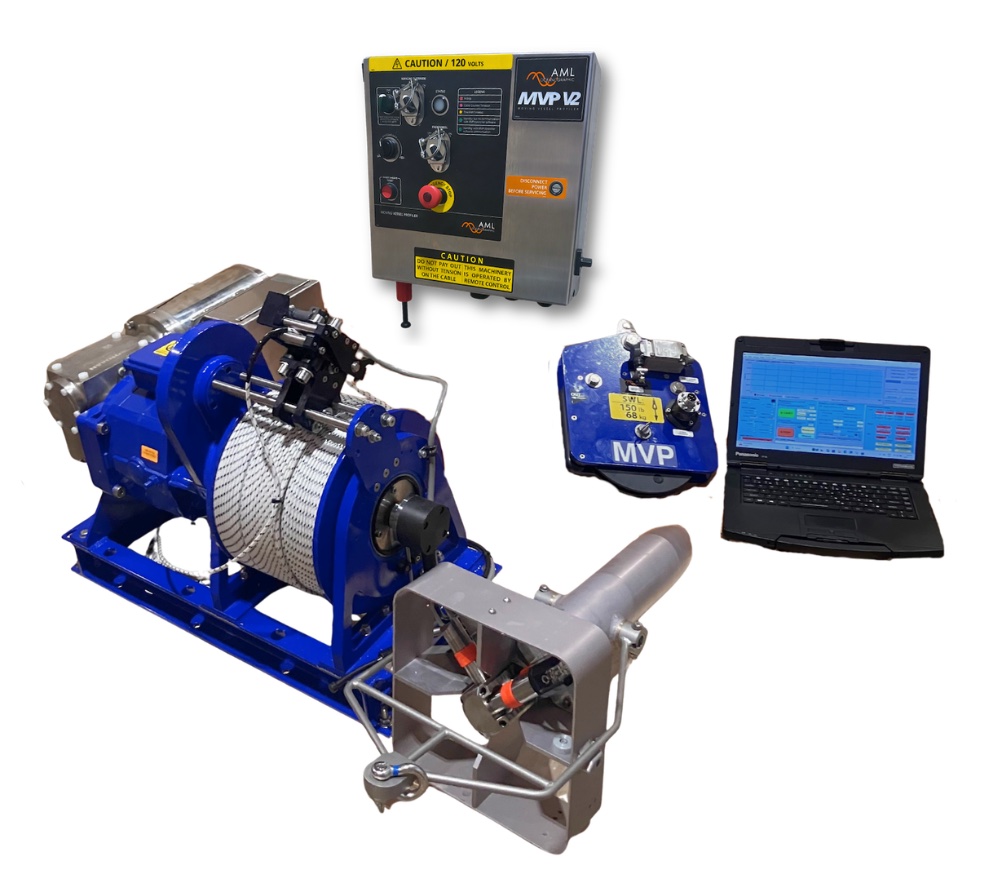

MVP30-350 V2
Up to 400 m cable length
Up to six data collection parameters
Operates at depths of down to 350 m

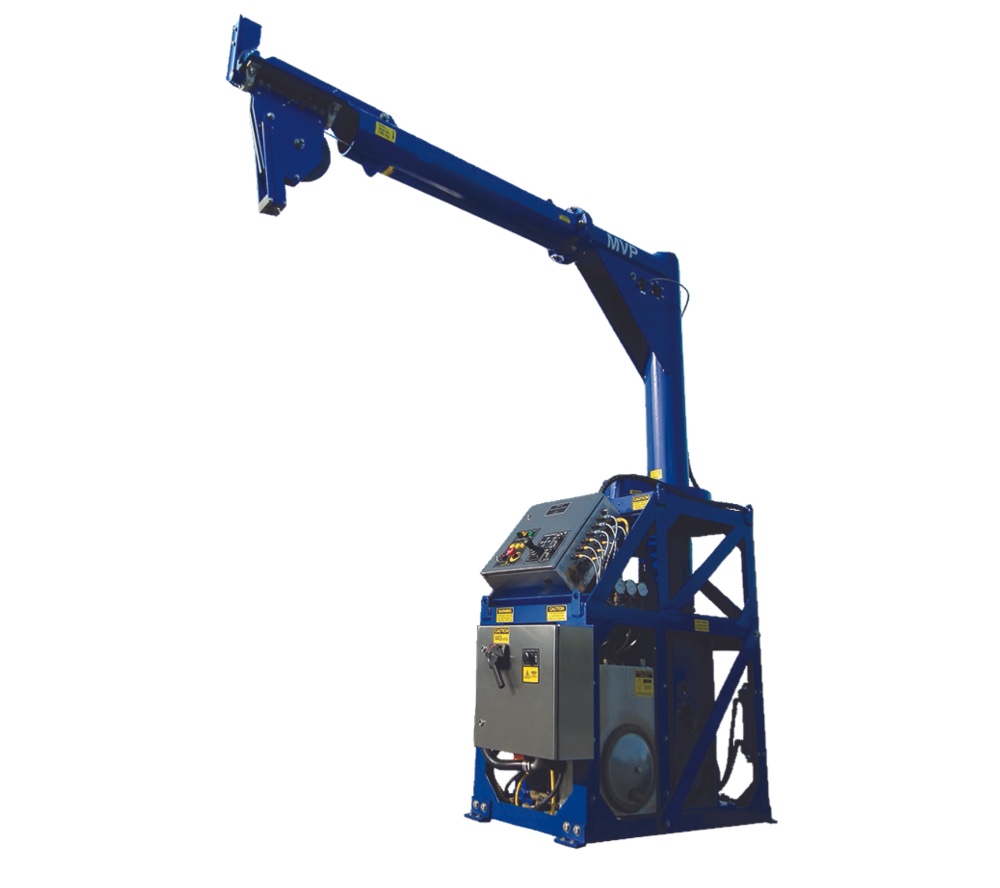

MVP200
Large MVP system for advanced survey applications
Up to 13 data collection parameters
Operates at depths of down to 660 m

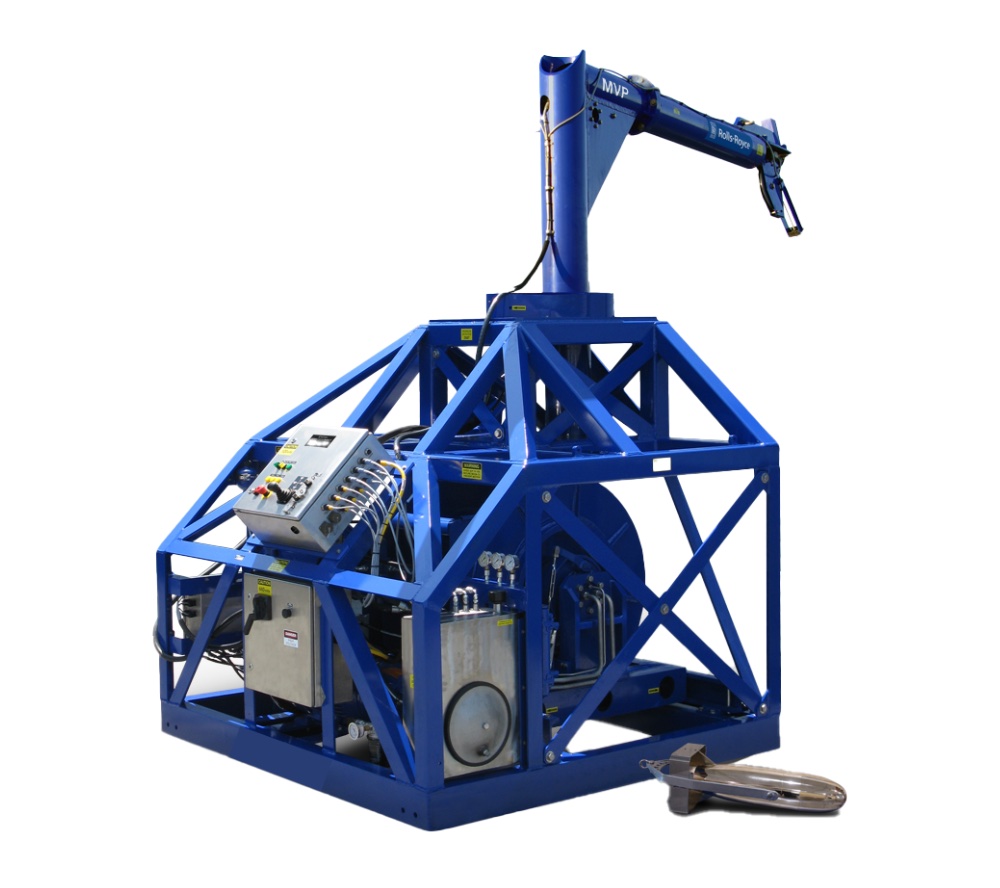

MVP300
Largest MVP system for up to sea state 7 conditions
Up to 13 data collection parameters
Operates at depths of down to 3700 m

Products

Sound Velocity Sensor

Field-swappable time-of-flight sound velocity sensor with embedded calibration

Sound Velocity & Temperature Sensor

Field-swappable temperature & time-of-flight sound velocity sensor with embedded calibration

Conductivity & Temperature Sensor

Field-swappable temperature & conductivity sensor with embedded calibration

High Accuracy Conductivity & Temperature Sensor

Field-swappable temperature & conductivity sensor with embedded calibration

Pressure Sensor

Field-swappable pressure measuring sensor with embedded calibration

High Accuracy Pressure Sensor

Field-swappable higher-accuracy pressure measuring sensor with embedded calibration

Temperature Sensor

Field-swappable temperature sensor with embedded calibration

Dissolved Oxygen Sensor

Field-swappable dissolved oxygen sensor with embedded calibration

Turbidity Sensor

Field-swappable turbidity sensor with embedded calibration

Turbidity Sensor with Wiper

Field-swappable wipered turbidity sensor with embedded calibration

CDOM Sensor

Field-swappable dissolved organic material sensor with embedded calibration

Chlorophyll A&B Red Excitation Sensor

Field-swappable algal abundance measuring sensor head for high-DOM environments

Chlorophyll A&B Blue Excitation Sensor

Field-swappable algal abundance measuring sensor head

Crude Oils Sensor

Field-swappable oil detecting sensor with embedded calibration

Fluorescein Sensor

Field-swappable flow path measurement sensor with embedded calibration

Optical Brighteners Sensor

Field-swappable optical brightener measurement sensor with embedded calibration

Phycocyanin Sensor

Field-swappable freshwater blue-green algae detection sensor with embedded calibration

Phycoerythrin (BGA) Sensor

Field-swappable saltwater blue-green algae detection sensor with embedded calibration

Rhodamine Sensor

Field-swappable rhodamine dye measurement sensor with embedded calibration

Tryptophan Sensor

Field-swappable tryptophan measurement sensor with embedded calibration

AML-1

Modular single-sensor probe for data collection & multibeam sonar applications

AML-3

Modular multi-sensor profiler for data collection & water column measurement

AML-6

Modular multi-parameter sonde for data collection & water column measurement

Endura-3

Infinite-endurance profiler system with three sensor ports

Endura-6

Infinite-endurance profiler system with six sensor ports

MVP Roam

Moving vessel profiler designed for maximum portability

MVP30 V2

Smallest fixed moving vessel profiler with 185-meter cable

MVP30-350 V2

Moving vessel profiler for depths of down to 350 meters

MVP200

Large moving vessel profiler for advanced survey applications

MVP300

Largest moving vessel profiler for up to sea state 7 conditions

Articles

Latest

AML Oceanographic Joins OST Ecosystem with Advanced Hydrographic Sensor Solutions

AML Oceanographic designs and manufactures advanced underwater sensors and instrumentation for hydrography, scientific research, offshore construction, and water quality monitoring applications worldwide

May 29, 2026

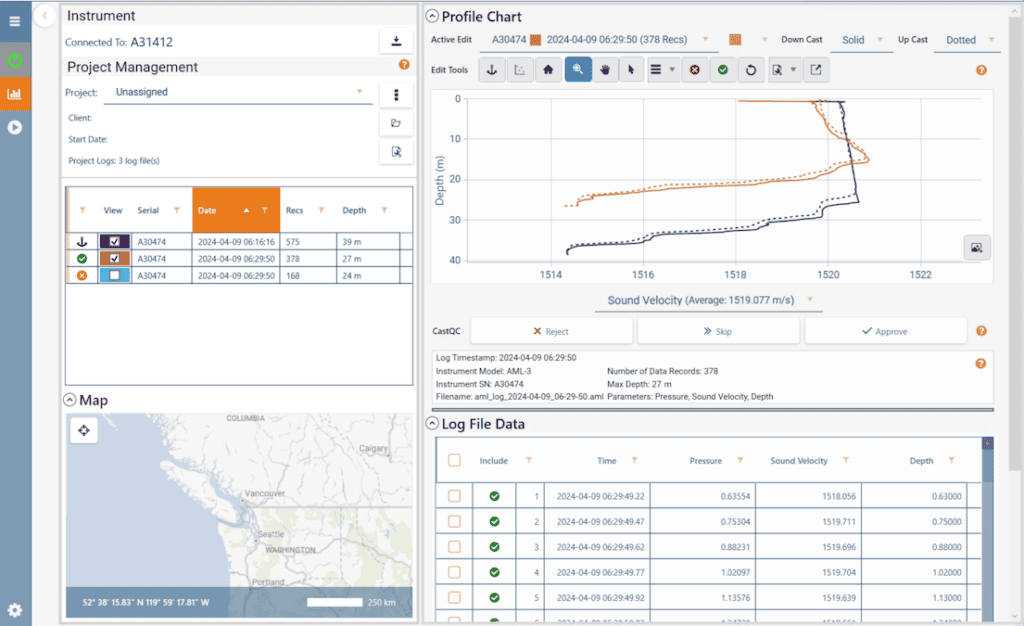

AML Oceanographic Releases Sailfish 2.0.0.0 with GPS & Export Upgrades

AML Oceanographic has introduced version 2.0.0.0 of its Sailfish software platform, bringing upgraded GPS functionality, more flexible data exporting, and improved connectivity for instrument setup, sampling, and data management workflows

May 19, 2026

Compact Underway Profiler Introduced for Water Column Measurements

AML Oceanographic has expanded its ocean profiling portfolio with the MVP Roam™ underway profiler, a compact platform capable of autonomously collecting up to four environmental parameters at depths of up to 60 meters

Mar 16, 2026

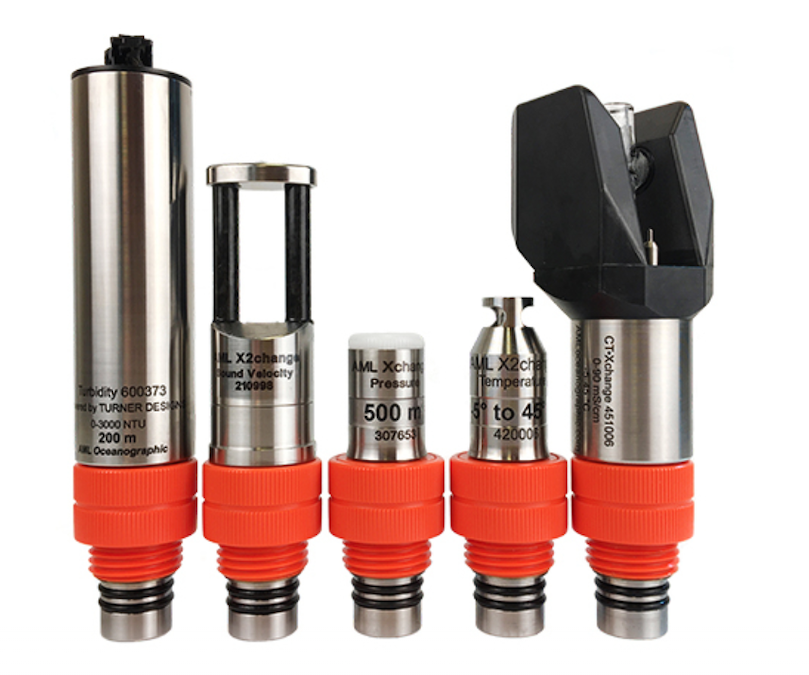

Defining & Measuring Sensor Accuracy in Oceanographic Instrumentation

AML Oceanographic examines how sensor accuracy in oceanographic instrumentation is defined, measured and validated, outlining the relationship between precision, trueness and bias alongside the statistical and calibration methods used to assess sensor accuracy

Nov 18, 2024

AML Oceanographic MVP200 Chosen for Swedish Research Vessel

AML Oceanographic’s MVP200 Moving Vessel Profiler has been selected for the Swedish research vessel RV Svea to support continuous real-time collection of CTD, dissolved oxygen, and chlorophyll A data during environmental monitoring missions in the Baltic Sea

Oct 27, 2024

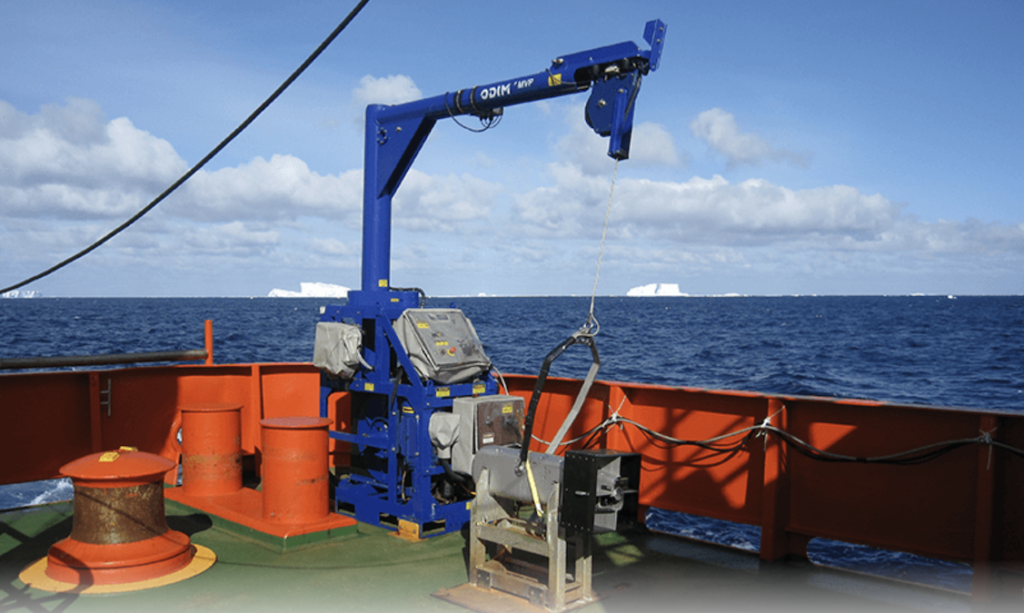

Moving Vessel Profilers in Dynamic Marine Survey Operations

AML Oceanographic examines how Moving Vessel Profilers (MVPs) support continuous sound velocity profiling during nearshore, post-storm, and complex towed marine survey operations

Oct 26, 2024

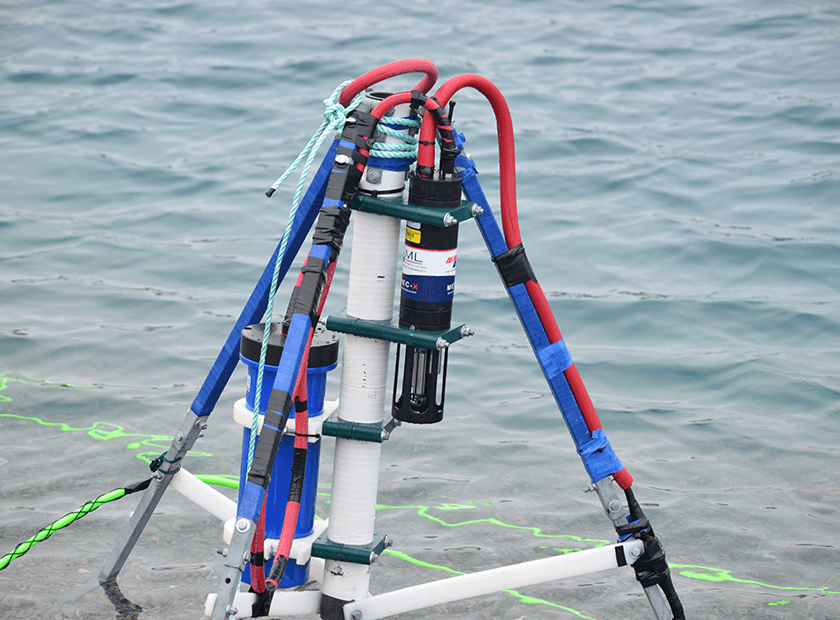

UV Biofouling Control Enables Long Duration Arctic Deployments

Ocean Networks Canada utilized AML Oceanographic’s UV biofouling control technology and modular instrumentation during an Arctic subsea monitoring deployment at Gascoyne Inlet

Oct 26, 2024

AML-3 XC Expands Instrumentation Versatility with Dual Data & Power Capabilities

AML Oceanographic's new X2•Series model integrates an additional connector to support simultaneous real-time communication and internal data logging

Oct 21, 2024

AML Oceanographic Expands Global Network with New European Service & Calibration Hub

Strategically located Amsterdam facility aims to slash lead times and logistical hurdles for European clients requiring expert sensor maintenance

Oct 17, 2024

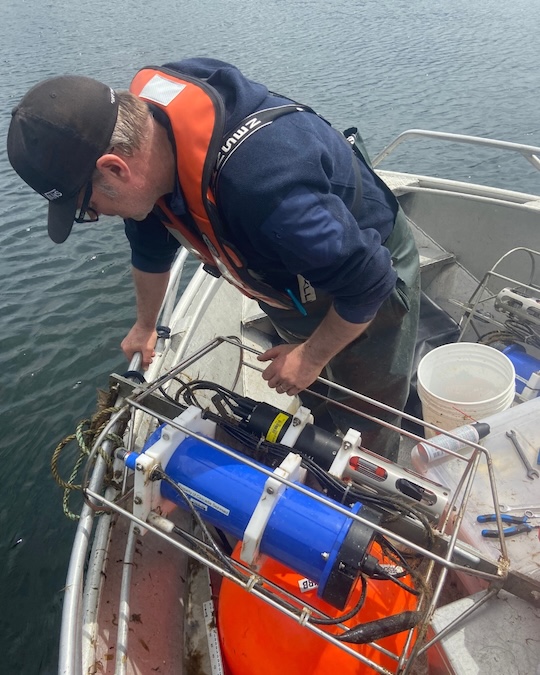

Long Duration Oceanographic Monitoring for Kelp Farm Ecosystem Research

AML Oceanographic’s AML-6 instruments are supporting Cascadia Seaweed’s research into how cultivated kelp environments may influence fish biodiversity and marine habitat conditions

Oct 15, 2024

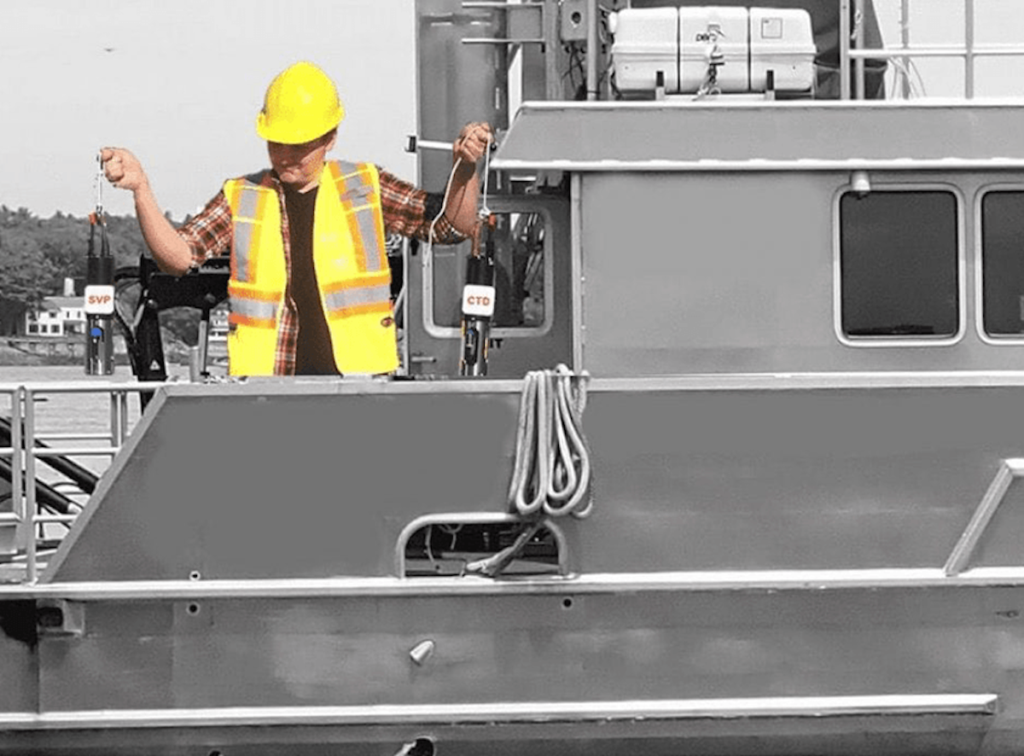

AML Oceanographic Details Why Sound Velocity Measurement Methods Matter

AML Oceanographic explains the differences between Conductivity, Temperature, and Depth profilers and Sound Velocity profilers, outlining how each method obtains sound speed data for hydrographic and marine survey operations

Oct 10, 2024

AML Oceanographic Supplies Moving Vessel Profiler for Oceanographic Research

The MVP30-350 system will enable continuous 24/7 high-resolution data collection to map Atlantic Ocean eddies & carbon uptake

Oct 10, 2024

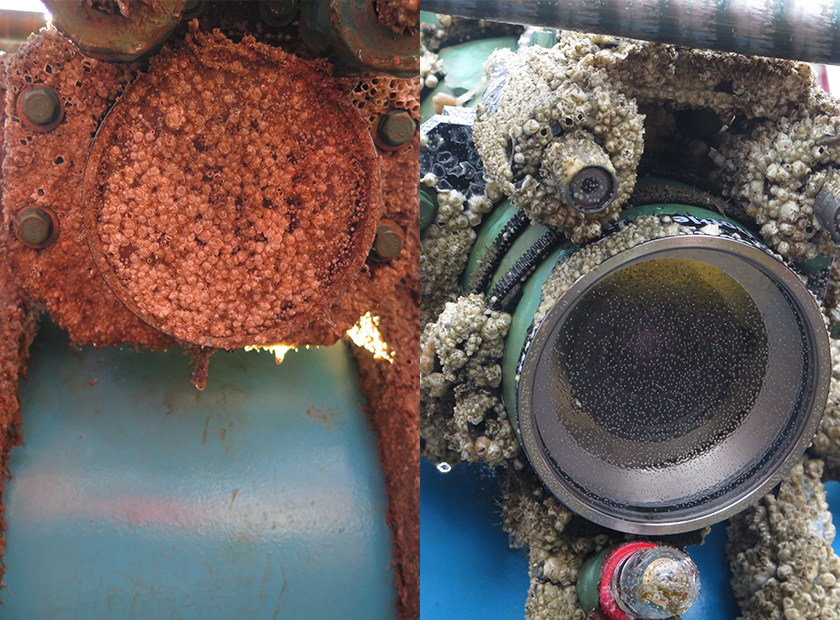

Mitigating Biofouling & Extending Sensor Longevity in Coastal Upwelling Zones

Oregon State University successfully implemented AML Oceanographic UV technology to protect fragile subsea sensors from extreme biofouling, ensuring data accuracy and reducing maintenance costs during six-month deployments off the Oregon coast

Sep 15, 2024

Regional Offices & Locations

British Columbia Canada A300-2261 Keating Cross Rd. Victoria BC, Canada V8M 2A5 +1 250 656-0771 Contact Website

Nova Scotia Canada 112-121 Ilsley Avenue. Dartmouth NS, Canada B3B 1S4 +1 902 593-1175 Website
