An underwater camera dome, also referred to as a dome window or optical dome, is a pressure-resistant hemispherical or custom-shaped enclosure that covers a camera or sensor on an underwater system. Its primary function is to protect the internal imaging system while maintaining undistorted visibility and light transmission across a range of wavelengths. Underwater camera domes are widely used in ROV imaging and profiling systems, autonomous underwater vehicles (AUVs), subsea monitoring stations, and scientific exploration equipment.
The dome’s optical characteristics are optimized to prevent refraction and distortion caused by the transition from water to air. Unlike flat viewports, dome lenses enable cameras to preserve their natural field of view underwater, improving the quality of the images captured.
Types of Optical Domes for Underwater Applications
There are multiple types of optical domes available for use in underwater and subsea systems. The choice of material and design depends on the specific performance requirements, such as depth rating, spectral transmission, durability, and cost.
Acrylic dome windows

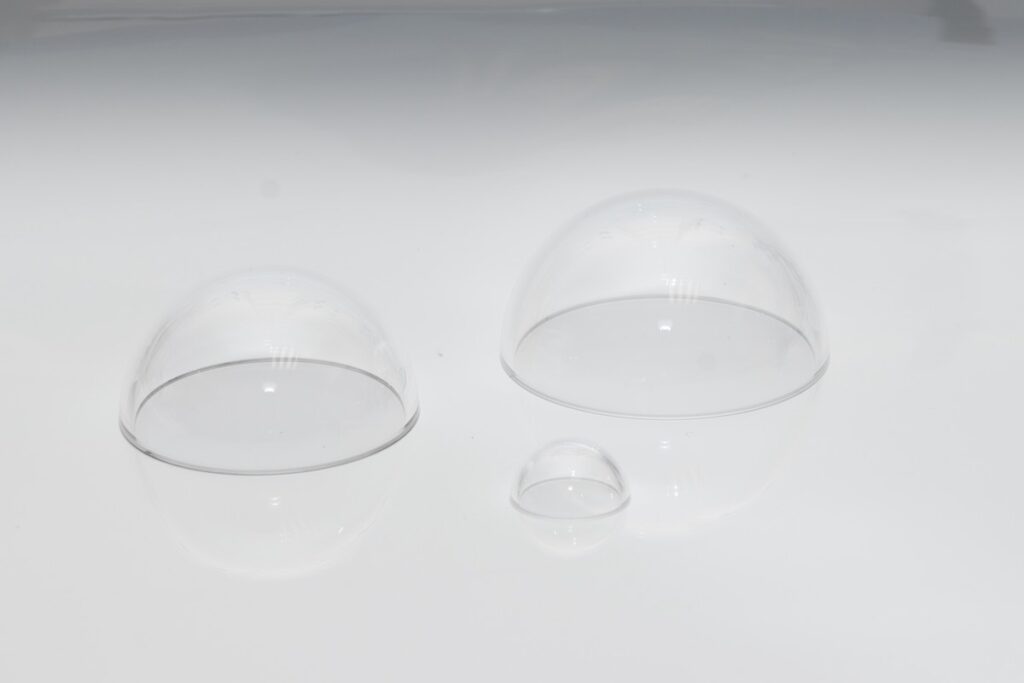

Optical Domes by Knight Optical.
Acrylic domes are commonly used in shallow to moderate depth ROVs and underwater camera systems. Acrylic offers high impact resistance and good optical clarity, making it a cost-effective choice for general underwater imaging. Its low density also contributes to reduced system weight, which is beneficial in mobile underwater platforms.
Glass dome windows
Glass domes, especially those made from borosilicate or fused silica, are preferred for high-performance ROV cameras and scientific instruments operating at significant depths. Borosilicate glass domes are renowned for their exceptional thermal and chemical stability, making them an ideal choice for deep-sea and thermally variable environments. Fused silica domes offer exceptional UV and infrared transmission properties, often used in infrared optical dome applications where multispectral imaging is required.
Optical domes can also be custom-fabricated to meet specific field-of-view requirements, incorporating anti-reflective coatings, hydrophobic surfaces, or tailored curvature to enhance imaging performance. Infrared optical domes, for example, are specifically engineered to transmit infrared wavelengths while maintaining clarity and durability at depth.
Applications of Underwater Camera Domes
Underwater camera domes are essential components in a wide range of subsea imaging systems. ROV cameras, in particular, benefit from dome windows that reduce optical distortion and enable wide-angle views crucial for navigation, inspection, and data capture.
Common application areas include:
- Subsea inspection and maintenance: Used by oil and gas, wind energy, and telecom industries for pipeline inspection, structural monitoring, and cable surveys.
- Oceanographic research: Deployed in deep-sea exploration missions to document biodiversity, geological features, and chemical conditions.
- Environmental monitoring: Used in long-term underwater observation stations to record changes in marine ecosystems.
- Marine archaeology and surveying: Dome windows protect high-resolution imaging systems used in mapping seafloors and documenting submerged artifacts.
- Defense and security: Integrated into underwater surveillance systems and military-grade ROVs for reconnaissance and hazard identification.
High-performance ROV cameras often require specialized optical domes that offer minimal chromatic aberration and high transmittance across wide spectral ranges. Dome lenses for underwater imaging ROVs are often optimized for integration with sonar, lidar, or multispectral cameras, forming part of larger ROV integrated profiling systems.
Borosilicate vs Fused Silica Domes
A common question in subsea optical system design is the choice between borosilicate and fused silica domes. Both materials are types of glass, but they offer distinct advantages:
- Borosilicate is less expensive and suitable for most visible spectrum applications. It offers good resistance to thermal shock and chemical corrosion, making it suitable for general-purpose ROV domes.
- Fused silica provides superior optical performance, particularly in the UV and IR spectra. It has higher purity, better thermal stability, and lower birefringence, which is ideal for scientific-grade instruments.
Fused silica is typically the material of choice in infrared optical dome configurations and high-performance imaging payloads where every photon counts.
Integration with Underwater Imaging Systems
Modern ROV imaging and profiling systems rely heavily on well-designed dome interfaces. Dome windows support high-resolution image capture while ensuring environmental isolation of sensitive optics. These systems often utilize underwater cameras for ROVs equipped with dome lenses, which allow for 180-degree views or panoramic scanning.
Underwater domes are also vital in systems that combine visual and non-visual sensors, such as sonar arrays, laser scanning modules, and spectrometers. These integrated systems require precise dome geometries and material transparency tailored to the complete sensing suite.
Subsurface Durability and Long-Term Reliability
Durability is paramount in subsea environments, where dome failure can compromise entire missions. Engineers often select domes with enhanced coatings, impact-resistant designs, and rigorous hydrostatic testing to ensure reliability under repeated use. Dome windows used in critical applications are often paired with wiper systems, anti-fouling coatings, and mechanical sealing features to prolong service life.
Key Considerations When Choosing an Underwater Camera Dome
Choosing the right underwater camera dome is not just about withstanding pressure; it’s about optimizing the entire imaging system for clarity, reliability, and performance in complex marine environments. The material, geometry, and optical properties of the dome must align with the specific requirements of the mission, whether it involves scientific observation at 6,000 meters or high-speed inspection of offshore infrastructure.
Operators must weigh critical factors such as field-of-view preservation, spectral transparency, and mechanical resilience. Acrylic dome windows may offer cost and weight advantages in less demanding environments, while borosilicate and fused silica domes are essential for precision imaging, thermal stability, and infrared transmission. Understanding the trade-offs, such as borosilicate vs fused silica or acrylic vs glass, is vital for matching dome performance to operational demands.
As ROV cameras and underwater imaging technologies continue to advance, the demand for specialized dome windows is expected to grow. Future developments are expected to include hybrid materials, improved coating technologies, and custom geometries that further reduce distortion and enhance multi-sensor compatibility. For engineers and operators alike, investing in the right optical dome is an investment in mission success, long-term durability, and uncompromised image fidelity beneath the surface.
