Digital Video Recorders (DVR) for Subsea and Marine Video Acquisition

Digital video recorders tailored for subsea and marine environments are ruggedized systems designed to capture, store, and overlay high-resolution video alongside sensor metadata, like GPS coordinates, depth, heading, temperature, and more. They integrate video inputs from ROVs, drop cameras, or man‑portable rigs and combine them with real‑time data feeds via overlay software or hardware modules inside DVR units. Key
features include:

• Resilient enclosure form factors: rack-mounted units for vessel integration and laptop-based portable stations for deck-level deployment.
• Overlay functionality: video recording overlay systems supporting timestamp, geospatial, and multi-camera overlays.
• Recording media options: SSD, RAID, or hardened HDD storage, sometimes with hot-swappable or removable options for rapid media handoff.

Types of Subsea/Marine DVR Systems

Rack‑mounted DVR systems

Ideal for integration into vessel equipment racks, these units offer:

•

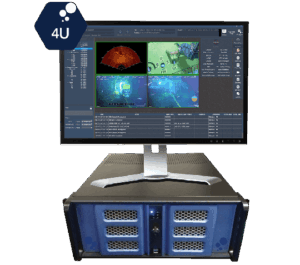

  EdgeDVR 4U Rack-Mounted by Digital Edge Subsea.

  Chassis‑based hardware video recorder architecture with multiple video and data ports (HD‑SDI, Ethernet, serial).

• Support for rack mount DVR modules capable of HD encoding, sensor overlay, and networked access.
• Hot‑swappable SSD modules or RAID arrays to ensure continuous recording and quick media exchange.

These solutions are ideal for long-duration missions, such as pipeline inspection, marine surveys, and rig servicing, where centralized systems manage multiple cameras and data streams.

Laptop‑Based DVR Workstations

Portable and flexible, laptop DVR systems deliver:

• Integrated FMV recording, video capture system components, and overlay program software for real‑time timestamping and sensor metadata display.
• Console-style user interface via keyboard and monitor, leveraging ruggedized laptop builds.
• Ideal for field deployments, portable setups on small boats, or verification tasks where mobility and rapid redeployment are priorities.

Comparing rack-mounted vs. laptop-based DVR solutions

Core System Components

Video capture hardware

Video acquisition systems typically ingest SDI, HDMI, or composite analog feeds. Multi-camera capabilities are common, supporting simultaneous input channels for side-by-side or picture‑in‑picture recording.

Overlay modules/software

Video overlay system components may include:

• Hardware multiplexers that insert onboard sensor data before encoding.
• Software DVR tools on laptops or consoles for real-time overlay of GPS, depth, attitude, heading, and timestamp feeds.
• Geospatial FMV integration overlay from precision navigation systems.

Storage media and management

Recording requires durable media solutions:

• SSD or SSD-based DVR options for robust shock resistance, often in sealed, removable cartridges.
• Portable DVRs may combine SSDs with RAID protection for redundancy.
• Recording durations vary with resolution; for example, 4K at 30 fps may consume upwards of 30 GB/hour, necessitating large-capacity solid-state drives (SSDs) or fast removable media.

Console control and monitoring

User experience is enhanced through console DVR configurations:

• Rugged laptops act as control consoles with a user‑friendly UI for overlay setup, camera switching, and metadata tagging.
• Monitor or dual-monitor setups provide clear video feeds alongside status indicators.

Applications of Marine DVR Systems

Survey and inspection

Underwater cameras recording wellheads, pipelines, bridges, and cables benefit from overlaid timestamps, depth, and heading. Subsea digital video recorders preserve evidence and structure mapping in long‑term projects.

ROV and portable dives

Rugged DVR+ Overlay Laptop by SubC Imaging.

Portable DVRs capture FMV feeds during real-time operations, whether working from crew boats or deploying from small vessels. Multi-camera recording overlay enables side‑by‑side comparison and synchronized playback.

Scientific research and environmental monitoring

Marine biologists and oceanographers utilize recording overlay systems to log sensor data, such as temperature, salinity, and GPS, concurrently with video, thereby streamlining analysis in post-processing.

Defense and security

Live video capture systems robust enough for mission-critical use support undersea surveillance and vessel inspection, benefiting from console DVRs that integrate geospatial FMV overlays for situational awareness.

Integration Considerations

Sensor & data interface

Ensure your DVR system supports serial, Ethernet, or custom I/O to import data from depth sensors, heading devices, GPS, or custom geospatial systems. Multiplexed overlay requires precise timestamp synchronization.

Video standard support

Systems must be capable of handling high-bitrate video, such as HD, 4K, and SDI signals, via robust video capture system hardware.

Storage throughput

Design storage for sustained high-bandwidth recording. A single uncompressed HD stream can demand 30–50 MB/s; multi-camera setups require RAID configurations or high-performance solid-state drives (SSDs).

Ruggedness & certification

Equipment must meet industrial standards for shock, vibration, temperature, and sometimes subsea-grade IP ratings.

Software compatibility

Overlay program and DVR software should integrate with standard tools used in post-processing and annotation workflows.

DVR Recording Workflows

1. Pre‑deployment setup: Configure video channels, overlay parameters (e.g., timestamp, geospatial, multi-camera layout), and storage path.
2. Mission recording: DVR system ingests live video, overlays metadata in real time, and writes to SSD/RAID. The console monitors status.
3. Post‑mission media exchange: Removable media is secured, drives are swapped or archived, and recording logs are documented.
4. Playback and analysis: Multi-channel playback with overlay allows precise mission review and data extraction.

Technical Depth: Overlay Mechanics

Video multiplexing hardware

Hardware multiplexers convert data feeds into overlay-ready signals and inject them into live video outputs or encoder inputs, enabling low-latency overlays ideal for mission-critical timing.

Software DVR overlay

Embedded in laptop workstations or console software, the DVR overlay program reads incoming sensor data (e.g., NMEA GPS), formats it (including timestamp, speed, and position), and renders it in configurable layouts.

Full-Motion Video (FMV) with georeferencing

Using tracking metadata (e.g., inertial navigation or GPS), geospatial FMV systems embed live coordinate data frame by frame, which is critical for precise mapping and intelligence.

Supporting Equipment & Accessories

Underwater DVR systems often include multi-camera meshes, power distribution units, access to remote recorder status via Ethernet, and specialized playback consoles for fleet operators. Portable DVR configurations frequently feature ruggedized monitors and video capture system kits that snap into racks or laptop bays.

Digital video recorders for subsea and marine applications blend high-performance video capture, sensor data overlay, and ruggedized form factors. Whether rack-mounted consoles integrated into vessel OPS suites or portable laptop units carried to field sites, these marine DVR systems enable precise, reliable recording of geospatial FMV, time‑synchronized sensor metadata, and multi‑camera feeds. By carefully choosing the layout, whether rack or portable, along with overlay mechanics and media handling, operators meet the stringent demands of subsea inspection, ROV missions, environmental studies, and marine surveillance.
