EdgeDVR 4U Rack-Mounted is the most versatile version of the EdgeDVR platform, tailored for comprehensive subsea visual inspection and event logging. Housed in a 19″ 4U rack-mounted chassis, the system supports high-performance digital video capture in SD, HD, or 4K resolutions, and is available in Lite, Standard, and Pro configurations.
Designed to streamline survey workflows regardless of operator experience, the EdgeDVR 4U Rack-Mounted enables simultaneous real-time logging, recording, and data backup. Its rugged design, built-in redundancy, and robust storage capacity make it ideally suited for demanding marine and offshore environments.
The system incorporates three removable 10TB hard drives: two dedicated to synchronized survey video and photo data, and a third reserved for automatic Blackbox recording. A dual solid-state drive configuration hosts the Windows operating system, ensuring both fast boot times and operational resilience.

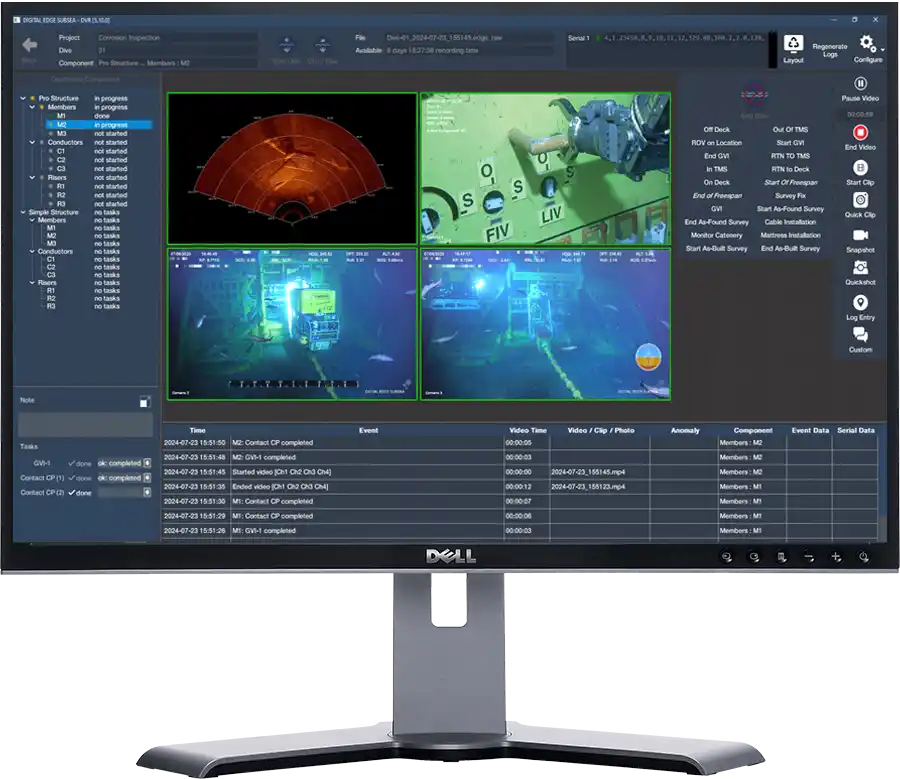

Additional features include digital overlay, automatic dive and anomaly log generation (Standard and Pro), and offline editing capabilities. With multibeam sonar input support, network streaming, and client viewing capabilities, EdgeDVR 4U seamlessly integrates into broader asset integrity frameworks and remote inspection operations.
Specifications:
| System Form Factor: | 19" 4U Rack-Mounted |
| Video Resolution Support: | SD, HD, 4K (720i, 1080p, 2160p) |
| Recording Channels: | 4 |
| Storage Configuration: | 3x Removable 10TB HDDs, 2x Internal SSDs |
