NMEA 0183 Network Devices

NMEA 0183 network devices are integral to modern marine systems, enabling efficient communication between a range of onboard vessel equipment such as sensors, navigational aids, and control systems.

Despite the emergence of newer standards like NMEA 2000, the NMEA 0183 protocol remains widespread in maritime technology, particularly in legacy systems and specific applications where its simplicity and reliability are advantageous. It ensures seamless data exchange across a wide variety of devices, including GNSS receivers, vessel autopilots, weather sensors, sonar systems, and radar units.

Advantages of NMEA 0183

NMEA 0183 offers several advantages that make it highly suited for meeting particular requirements within marine technology applications.

Cost-Effectiveness
The protocol’s simplicity makes it affordable to implement and maintain. The minimal hardware requirements and well-documented standards reduce development and operational costs.

Ease of Integration
Its text-based messaging system is easy to interpret and debug, allowing engineers and technicians to integrate and troubleshoot systems with minimal effort.

Compatibility
As a standardized protocol, NMEA 0183 enables equipment from various manufacturers to communicate effectively, ensuring interoperability and reducing compatibility concerns.

Limitations of NMEA 0183

While NMEA 0183 has a long history as a reliable solution for marine data exchange, it is not without limitations. These include:

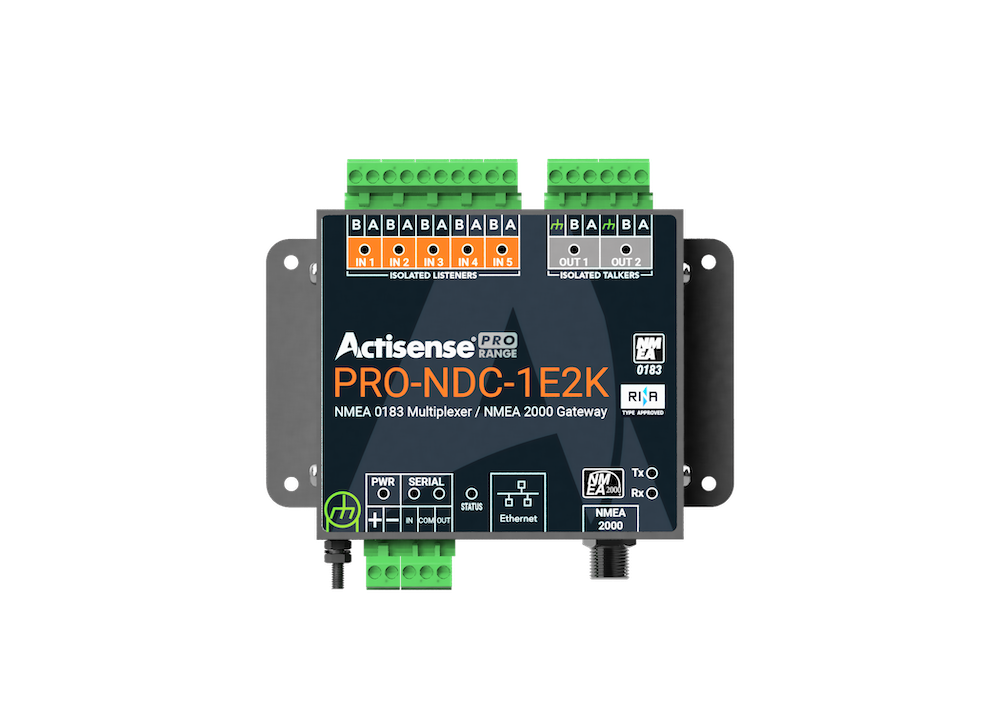

NMEA 0183 Multiplexer by Actisense

Limited Bandwidth

The protocol’s maximum data transfer rate of 4800 bps restricts the amount and speed of information that can be transmitted. This can be a bottleneck in systems requiring high-speed or high-volume data exchange.

Single-Talker Architecture

NMEA 0183 architecture requires all device outputs to be continuously on, meaning that a NMEA 0183 multiplexer must be used to connect multiple devices to the bus. This in turn means that only one device can broadcast at a time, in order to prevent several devices from “talking” over one another and data being corrupted or lost.

Power Requirements

Each device in an NMEA 0183 network requires its own power source, resulting in increased cabling and installation effort.

Scalability

Adding new devices to an NMEA 0183 network can be challenging, as the architecture does not support plug-and-play functionality.

Transition to NMEA 2000

The limitations of NMEA 0183 led to the development of NMEA 2000, a more advanced protocol designed to address the evolving needs of the marine industry. NMEA 2000 offers significant improvements and provides a solution to all of the limitations discussed above.

• Higher Data Rates: With a transfer rate of up to 250 kilobits per second (kbps), NMEA 2000 accommodates more complex and data-intensive applications.
• Bi-Directional Communication: Devices can simultaneously send and receive data, enhancing the network’s efficiency and responsiveness.
• Simplified Cabling: Devices on an NMEA 2000 network can draw power directly from the network, reducing wiring complexity.
• Plug-and-Play Functionality: The protocol’s architecture allows for easy addition and removal of devices without extensive configuration.

Despite these advantages, NMEA 0183 remains widely used, particularly in legacy systems and applications where its simplicity and cost-effectiveness are sufficient.

Compatibility Between NMEA Standards

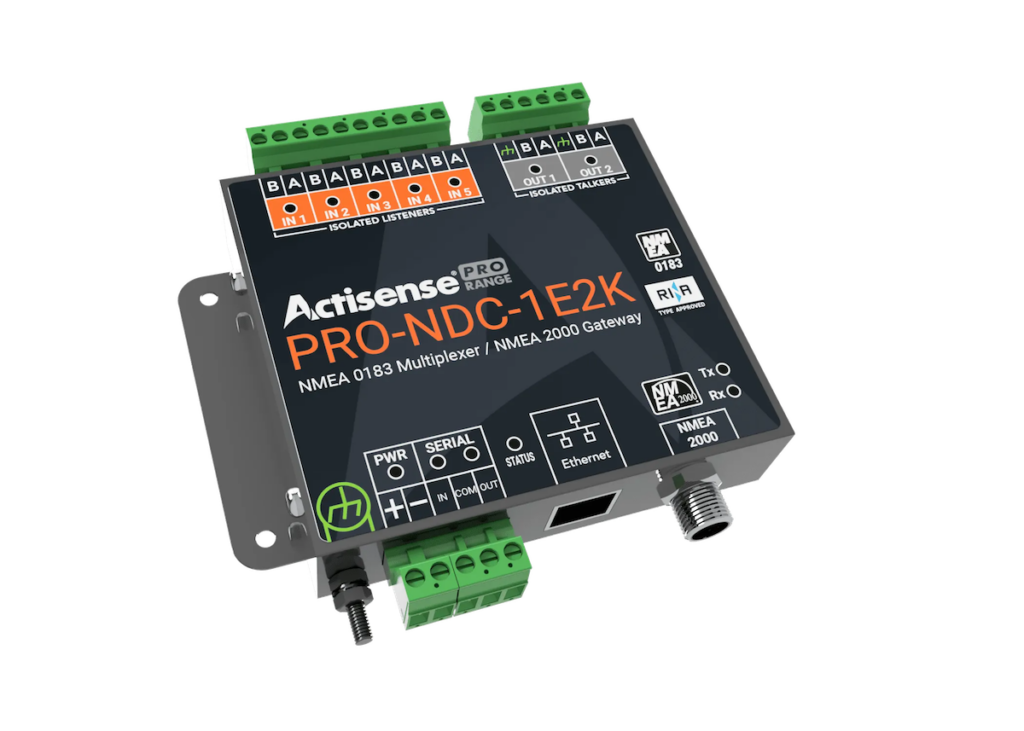

NMEA 0183 and NMEA 2000 are not natively compatible, as they operate on different physical and logical frameworks. However, hybrid networks can be created using gateways that facilitate bi-directional data conversion between the two standards. These gateways enable integration of NMEA 0183 devices into modern systems, preserving investments in existing equipment while leveraging the capabilities of NMEA 2000.

Applications of NMEA 0183 in Marine Systems

The NMEA 0183 standard is used by a wide variety of devices and equipment across a range of marine, offshore and oceanographic applications, including:

Navigation Systems

GNSS receivers use NMEA 0183 to transmit precise positional data to chart plotters, autopilots, and other navigational aids, ensuring safe and accurate vessel operation.

Environmental Monitoring

Weather sensors and oceanographic instruments rely on the protocol to deliver real-time data on wind speed, temperature, and sea conditions to onboard systems.

Sonar and Radar Integration

NMEA 0183 facilitates the communication of depth, target detection, and other critical information from sonar and radar units to display and logging systems.

AIS Systems

Automatic Identification Systems (AIS) use NMEA 0183 sentences to share vessel information, enhancing safety and traffic management in busy waterways.

NMEA 0183 System Challenges and Solutions

While the simplicity of the NMEA 0183 standard reduces development time and costs, the single-talker architecture and limited bandwidth can be restrictive in complex systems. Multiplexers and repeaters are often employed by designers and systems integrators to manage these limitations, ensuring reliable communication in multi-device networks.

Additionally, software solutions have been developed to optimize NMEA 0183 data parsing and analysis. These tools enable users to filter and process specific sentences, reducing the load on receiving devices and improving overall system performance.

The Future of NMEA 0183 in Marine Technology

While the marine industry continues to evolve and embrace newer technologies and standards, NMEA 0183 remains a valuable tool for specific applications.

Its compatibility with legacy systems and straightforward implementation make it ideal for many simpler applications and requirements. However, as demands for higher data rates and integrated functionality grow, NMEA 0183 is increasingly supplemented by NMEA 2000 and other advanced protocols.

In hybrid networks, NMEA 0183 serves as a bridge between older and newer technologies, ensuring seamless communication across a range of systems, and is likely to remain a viable option for some time.
