Single Beam Echo Sounders

Precision in Seafloor Mapping & Water Depth Measurement

Single beam echo sounders (SBES) are indispensable instruments in oceanography, hydrography, and marine research, designed for accurately measuring water depth and analyzing seafloor topography. Through transmitting sound pulses directed straight down to the seafloor and measuring the return time, SBES devices generate reliable, precise data. This straightforward yet effective technology makes single beam echo sounders essential tools for various marine and coastal applications, offering clear benefits in a range of depths and environments.

Jump to section:

• How Single Beam Echo Sounders Work
• Applications of Single Beam Echo Sounders in Marine Science
• Single Beam vs. Multibeam Echo Sounder
• Key Advantages of Single Beam Echo Sounders
• The Future of Single Beam Echo Sounding

How Single Beam Echo Sounders Work?

Single beam echo sounders operate by sending out sound waves, or “pings,” from a transducer mounted on a vessel or platform. These sound waves travel to the seafloor and reflect back, with the time taken for the echo’s return calculated to determine depth. Utilizing the speed of sound through water, single beam echo sounders can produce accurate depth readings by converting this data into a depth measurement. Because of this precise method, single beam echo sounders are particularly effective for gathering vertical depth data.

Single beam echo sounders measure the water depth directly below the vessel, making them well-suited for applications that require accurate depth information in a single location. For broad, large-area seafloor mapping or detailed bathymetric models, a multibeam system may be more advantageous. However, SBES units are commonly used in hydrographic surveys, harbor maintenance, dredging, and navigation to provide targeted depth readings and initial seafloor characterizations.

Single beam echo sounders may use a number of different frequencies for measurement:

• Lower frequencies provide greater ranges, due to less attenuation of the sound wave, but provide less resolution, and the opposite is true for higher frequencies.
• Higher frequencies such as 200 kHz are thus typically used for shallow-water surveying and measurement, whereas lower frequencies such as 24 to 33 kHz are used in deeper water.

Single beam echo sounders may be single- or dual-frequency, with the latter providing greater versatility for different environments and detail requirements.

Applications of Single Beam Echo Sounders in Marine Science

Single beam echo sounders play an essential role in fields like oceanography, coastal management, and environmental monitoring. They can be mounted on both manned and unmanned vessels, and are utilized for a wide range of applications, including hydrographic and bathymetric surveying, oceanographic research, dredging and construction, and fish-finding.

Hydrographic Surveys

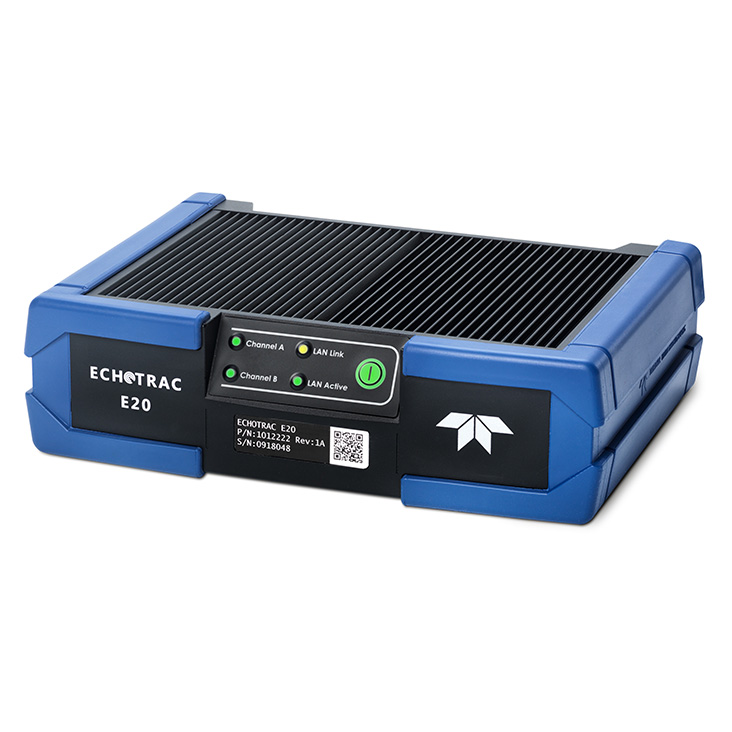

Single Beam Echo Sounder, ECHOTRAC E20 by Teledyne Marine

SBES is widely used for hydrographic surveys, including river and harbor navigation channel surveys. The precise depth data supports safe navigation, infrastructure planning, and dredging operations.

Sediment Analysis and Seafloor Characterization

While multibeam systems provide a broader view, SBES offers valuable information on seafloor characteristics by evaluating echo strength and reflection patterns. Marine scientists and geologists utilize this data to understand sediment types and analyze changes in seabed structures over time.

Coastal Monitoring and Management

Coastal erosion and sediment transport can significantly impact the environment. Single beam echo sounders are frequently employed to monitor these changes, providing essential depth information to track erosion patterns, sedimentation, and other dynamic coastal processes.

Biological and Environmental Studies

Researchers studying marine habitats, fish populations, or underwater vegetation also benefit from the depth and seafloor data gathered by single beam echo sounders, using these measurements as reference points for assessing changes in ecosystem structures.

Single Beam vs. Multibeam Echo Sounder

Understanding the difference between single beam and multibeam echo sounders helps in selecting the appropriate tool for specific projects. Single beam echo sounders measure depth in a focused vertical column beneath the transducer, making them more straightforward, easier to deploy, and cost-effective. Multibeam echo sounders, on the other hand, use multiple beams to cover a wider swath, capturing detailed images of the seafloor. This allows for complete seafloor coverage in a single pass, useful in applications like comprehensive seafloor mapping or creating high-resolution bathymetric charts.

For applications requiring detailed seafloor imagery or full area coverage, multibeam systems provide a more comprehensive option, but they also involve more complex setup and higher operational costs. In contrast, single beam systems are often preferred for targeted depth readings and preliminary surveys due to their simplicity, speed, and efficiency.

Key Advantages of Single Beam Echo Sounders

The practical design and efficient operation of single beam echo sounders offer several advantages:

• Cost-Effectiveness: Single beam echo sounders are generally more affordable than multibeam systems, making them ideal for routine surveys and monitoring projects where budget constraints are a consideration.
• Ease of Use: SBES devices are often easier to set up and require less training, making them accessible to smaller vessels or research teams that need quick and reliable depth readings.
• Focused Depth Measurement: With a single beam directed downwards, SBES units provide highly accurate depth readings directly below the transducer, eliminating noise from lateral reflections that can affect multibeam readings in shallower waters.
• Versatile Deployment Options: SBES systems are compatible with a range of vessel types, from research ships to small boats, expanding their applications to environments where larger systems may be impractical.

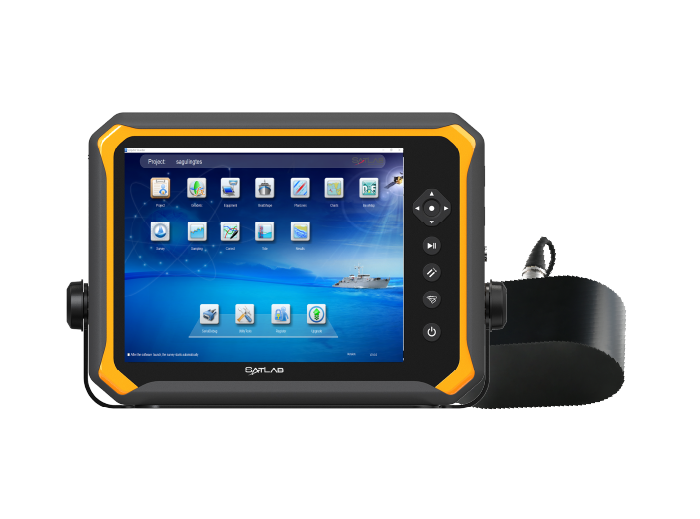

Seafloor Echo Sounder, HydroBeam S2 by SatLab Geosolutions

The Future of Single Beam Echo Sounding

Single beam echo sounders continue to evolve, incorporating innovations like digital signal processing, better noise reduction, and real-time data transfer. These improvements are expanding the reach of single beam systems in environmental monitoring and hydrographic surveying. For many ocean science and marine technology applications, single beam echo sounders remain a cornerstone of accurate, affordable, and versatile seafloor mapping and water depth measurement.

Enhancing Data Collection with SBES

Paired with GPS and data logging systems, single beam echo sounders offer enhanced data collection and georeferenced depth readings. These integrations make SBES systems suitable for modern mapping requirements, especially in shallow and inland waters where high precision is required without extensive survey equipment. Advanced models of single beam echo sounders now include real-time data processing and correction for variables like sound speed in water, compensating for temperature and salinity changes to ensure accurate readings.
