HydroBeam S2

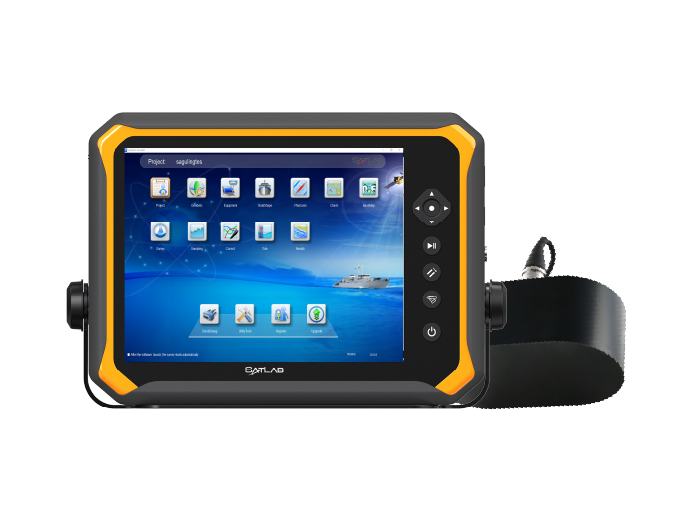

The HydroBeam S2 is a dual-channel echosounder designed for efficient bathymetric survey applications. The system features a rugged IP66-rated Windows 10-based acquisition unit with 1TB of storage and running Satlab's SLHydro Sounder software. The high-precision transducer includes an integrated temperature sensor for accurate real-time sound velocity calculation, ensuring enhanced accuracy for collected bathymetric data.
Providing a complete workflow for the acquisition, processing, correction and exporting of data, the HydroBeam S2 is ideal for a wide range of applications including deep-water exploration, reservoir assessment, and dredging.
| Dimensions: |
297 x 103 x 104 mm (With battery) 133 x 104 x 103 mm (Mainframe) |
| Weight: | 1 kg (with battery) |
| Battery: | 3150 mAh * 2 (Max. 90 mins battery life for each) |
| Indoor Accuracy: | ±2.5 cm |
| Indoor Precision: | ±1 cm |
| RTK Performance: |
0.8 cm + 1 ppm (H) 1.5 cm + 1 ppm (V) |
| Range: |
0.1 ~ 40 m @ 10% 0.1 ~ 70 m @ 80% |
| Camera: |
12 MP * 2 360o x 270o |
| LiDAR: |
360o x 59o 200,000 points/sec |
