Rotary Actuators for Marine and Subsea Applications

Rotary actuators are mechanical devices that produce rotational motion through energy conversion. They are commonly used to automate, control, or assist with movement in various systems. In marine, maritime, and subsea contexts, they must endure extreme pressures, corrosive saltwater environments, and variable temperatures while maintaining high performance and reliability.

Rotary actuators differ from linear actuators by providing rotational rather than straight-line movement, which is critical for steering, valve control, hatch operation, and robotic articulation. Whether operating on ship decks, underwater vehicles, or offshore platforms, rotary actuators must combine durability with precise control.

Jump to section:

• Applications of Rotary Actuators in Marine, Maritime, and Subsea Environments
• Types of Rotary Actuators Used in Marine Environments
• Key Considerations for Selecting a Rotary Actuator for Marine Use
• Comparing Linear and Rotary Actuators in Marine Settings
• Overview of Rotary Actuators

Applications of Rotary Actuators in Marine, Maritime, and Subsea Environments

Rotary actuators are used across a broad spectrum of applications, including:

• Subsea valve actuation: Controlling flow in pipelines and processing systems located on the seafloor often requires subsea electric rotary actuators or hydraulic variants that can withstand high pressures and remain waterproof over long deployment periods.
• Ship steering systems: Many vessels employ servo rotary actuators to manage rudder movement and trim tabs for enhanced navigational control
  Offshore drilling platforms: Actuator cylinders and rotary valve actuators regulate drilling equipment and safety valves on rigs where reliability is paramount.
• Underwater remotely operated vehicles (ROVs): Rotary vane actuators and heavy-duty rotary actuators power robotic arms, sensor arrays, and propulsion steering mechanisms.
• Surface marine equipment: Hydraulic and electric rotary actuators are commonly used in winches, cranes, and hatch covers, where controlled rotation and waterproof performance are essential.
• Maritime security and defense: Pneumatic rotary actuators and rotary electric actuators operate mechanisms such as weapon stations, radar masts, and defensive barriers aboard military vessels.

Types of Rotary Actuators Used in Marine Environments

Several types of rotary actuators are tailored for marine, subsea, and surface use:

Electric rotary actuators

Offering precision, programmability, and low maintenance, these actuators are ideal for applications requiring accurate positioning, such as sonar array deployment or navigation equipment adjustment.

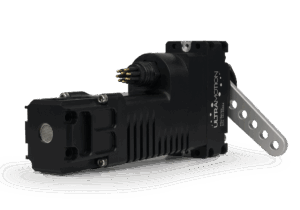

T3U Rotary Actuator by Ultra Motion.

Hydraulic rotary actuators

Preferred for high-torque applications like deck machinery and subsea drilling operations. They are robust against external pressures and are often used where very high forces are needed.

Pneumatic rotary actuators

Suitable for lighter tasks, pneumatic rotary actuators provide fast actuation in valve controls and hatch openings, especially where electric systems are impractical.

Rotary vane actuators

Using vanes and pressure differentials to create rotational force, these are compact and reliable for underwater and confined space applications.

Servo rotary actuators

These actuators combine rotary motion with feedback control systems and are essential where precise, responsive movements are critical, such as ROV manipulation arms.

Heavy-duty rotary actuators

Designed for the most demanding environments, these systems provide rugged, continuous operation for critical shipboard and offshore systems.

Key Considerations for Selecting a Rotary Actuator for Marine Use

Choosing the right actuator involves understanding several important factors:

• Waterproof design: Essential for subsea and surface applications where direct water exposure occurs. Look for IP-rated or purpose-built waterproof actuators.
• Corrosion resistance: Materials like stainless steel, special alloys, or marine-grade coatings enhance durability in saltwater environments.
• Torque and force requirements: Depending on the task, whether it’s delicate valve movement or heavy lifting, torque ratings must match the operational load.
• Type of energy source: Depending on system integration, choosing between electric, hydraulic, or pneumatic power affects actuator performance and maintenance needs.
• Range of motion: Specific applications may require different rotational ranges, such as 90°, 180°, or continuous 360° motion.
• Understanding the available options, from a simple DC rotary actuator for basic tasks to a high torque electric rotary actuator for critical systems, is essential for system reliability and efficiency.

Comparing Linear and Rotary Actuators in Marine Settings

While linear actuators provide straight-line motion ideal for pushing, pulling, or lifting, rotary actuators specialize in rotation. Some complex systems even integrate linear and rotary actuators to perform hybrid movements, improving versatility for tasks like multi-axis robotic arms on underwater exploration vehicles. Selection depends on the specific motion profile needed for the application.

Overview of Rotary Actuators

Rotary actuators are pivotal in marine, maritime, subsea, and surface industries by delivering controlled rotation under harsh conditions. Whether through electric, hydraulic, or pneumatic mechanisms, these devices ensure the reliable operation of critical systems. With a wide range of types available, from rotary pneumatic actuators to heavy-duty high-torque electric rotary actuators, users can select designs tailored explicitly for underwater environments, topside marine equipment, and dynamic offshore structures. Understanding the applications and capabilities of rotary actuators leads to better system performance, enhanced durability, and operational success across the ocean science and marine technology industries.
