Subsea cameras serve a crucial role in marine research, underwater inspections, and oceanographic studies. These cameras are available in multiple resolutions, including HD and 4K.
Some advanced subsea cameras provide both HD and 4K recording capabilities. SubC Imaging offers a selection of cameras that support both resolutions, including:

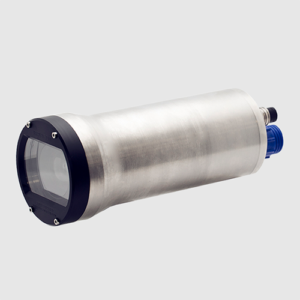

Rayfin Benthic 6000m Subsea Camera
Rayfin Mk2 Subsea Cameras
The Rayfin Mk2 Benthic 6000m and Rayfin Mk2 Coastal 500m models are highly adaptable. These cameras capture both 4K and HD video, along with digital stills, making them ideal for numerous subsea applications.
These cameras allow for extensive data collection, whether operating in shallow waters or depths of up to 6000m. Each model can record over 10 hours of 4K footage, more than 40 hours of HD video, and thousands of digital still images. Additionally, as a data-logging device, the Rayfin is equipped with built-in depth, tilt, and roll sensors, as well as the capability to store NMEA sensor data.

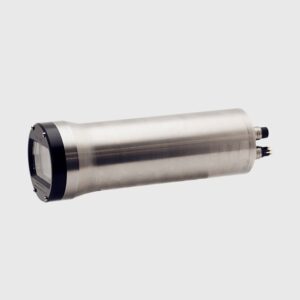

1Cam Mk6 Subsea Camera
SubC Imaging’s 1Cam Mk6 is another sophisticated subsea camera that supports both 4K and HD recording. Compact and lightweight, this camera delivers high-definition video, making it well-suited for scientific research, marine conservation, and various subsea operations.
The 1Cam Mk6 employs advanced sensor technology to produce high-quality images and video, even in low-light underwater environments. Featuring 20x optical zoom, it allows users to focus on specific objects or areas, providing enhanced control and flexibility in imaging.
Understanding Video Resolution
Video resolution refers to the number of pixels composing each frame of a video. In simple terms, it indicates the quantity of individual color points displayed on a screen. A greater number of pixels enhances the clarity and realism of the video, as it allows for a more detailed and vivid image.
Resolution is typically measured in a 16:9 aspect ratio, which is standard for most television screens and computer monitors. The first number in this ratio represents the width, while the second denotes the height of the display.
HD Subsea Cameras
An HD subsea camera is specifically designed for underwater environments, capturing video in high-definition (HD) resolution. These cameras provide a resolution of 1920 x 1080 pixels, making them roughly five times more detailed than standard definition (SD) cameras.
HD subsea cameras are widely used for underwater inspections and scientific studies where superior image quality is essential for analyzing conditions beneath the surface and studying marine organisms. Industries such as oil and gas also rely on HD cameras to inspect subsea infrastructure and equipment, ensuring operational safety and preventing environmental hazards.
4K Subsea Cameras
4K subsea cameras, also known as Ultra High Definition (UHD) cameras, capture footage at a resolution of approximately 4,000 pixels horizontally. This resolution is four times greater than that of HD cameras, resulting in a significantly enhanced level of detail.
These cameras are particularly beneficial in applications where exceptional video quality with enhanced color and contrast is required. In underwater inspections, 4K cameras enable the detection of minor cracks, corrosion, and damage.
In marine biology and oceanography, 4K resolution supports in-depth analysis of marine species, their habitats, and underwater ecosystems. Additionally, in underwater cinematography, 4K cameras are favored for documentaries, films, and television productions, delivering striking underwater visuals and an immersive viewing experience.
HD vs 4K
Certain circumstances may warrant the use of an HD subsea camera, while others may necessitate a 4K option. Consider these factors when making a decision:
- Cost: Generally, 4K subsea cameras are more expensive than HD models. If budget constraints are a concern, an HD camera may be a more practical choice.
- Depth of field: In shallower waters with less intricate details, an HD camera may suffice. However, for deeper dives where capturing finer details is necessary, a 4K camera could be a better option.
- Intended use: The purpose of the footage is another determining factor. High-resolution 4K cameras are advantageous for underwater inspections, as they provide enhanced visibility of subsea structures and facilitate more accurate assessments. Conversely, HD cameras are suitable for routine maintenance, offering sufficient clarity at a lower cost.
- Storage capacity: Since 4K video files are significantly larger than HD files, storage limitations should also be considered when selecting a camera.
Ultimately, both HD and 4K subsea cameras have distinct advantages, making them suitable for various underwater imaging applications. The choice will depend on factors such as required detail level, cost, and storage capacity.
For those requiring versatility, certain subsea cameras, such as SubC Imaging’s Rayfin Mk2 and 1Cam Mk6, support both HD and 4K recording, making them ideal options for a range of underwater imaging needs.
