Profiling Sonar Sensors and Systems

Profiling sonar systems provide highly accurate measurements and in-depth analysis of underwater environments, making them essential for applications such as ocean exploration and environmental research. Unlike imaging sonar, which focuses on creating visual representations, profiling sonar specializes in acquiring highly accurate data on underwater topography and sediment structures. This page explores the technology behind profiling sonar, its various types, and the wide range of applications it supports, from hydrographic surveys to aquaculture monitoring.
Overview Profiling Sonar Sensors and Systems
By Staff Writer Last updated: February 3rd, 2025

What Is Profiling Sonar?

Profiling sonar refers to advanced acoustic technology designed to measure the contours, depth, and characteristics of underwater environments. By emitting sound pulses and analyzing their echoes, profiling sonar delivers precise vertical data, making it invaluable for tasks like seabed mapping, sediment analysis, and pipeline inspection.

Profiling Sonar vs. Imaging Sonar

Profiling sonar and imaging sonar serve complementary roles in underwater technology but differ in their core functionalities:

Profiling Sonar

Profiling Sonar by Impact Subsea

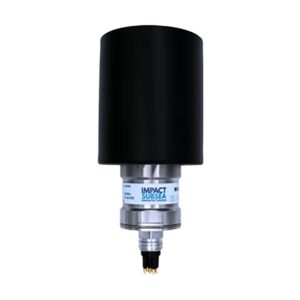

ISP360 Profiling Sonar by Impact Subsea

Primarily used for collecting vertical profiles of the seabed or other underwater features. It is ideal for applications requiring depth measurement and structural analysis.

Imaging Sonar

Imaging sonar and its associated technologies focus on creating visual, often photographic-quality images of underwater objects and areas, making it more suitable for tasks like underwater archaeology or infrastructure inspections.

While imaging sonar offers a broader field of view, profiling sonar provides unparalleled accuracy in measuring specific points or transects, making it indispensable for bathymetric and hydrographic surveys.

Types of Profiling Sonar

Different types of profiling sonar systems are tailored for specific applications, each leveraging unique features to optimize performance:

  • Chirp Sonar: Produces high-resolution images by using a broad frequency range, making it effective for sediment profiling and sub-bottom analysis.
  • Multibeam Sonar: Multibeam sonar offers a wide swath of data collection, ideal for large-scale hydrographic surveys and underwater mapping.
  • Side-Scan Sonar with Profiling Capabilities: Side-scan sonar combines imaging and profiling to capture detailed views of the seabed and its structure.
  • Synthetic Aperture Sonar (SAS): Provides ultra-high-resolution profiles, often used for military and advanced research applications.
  • Sub-Bottom Profilers: Specialized for analyzing sediment layers beneath the seabed, widely used in geological studies and environmental monitoring.

Applications of Profiling Sonar

Profiling sonar is a versatile technology with diverse applications across industries:

Underwater Mapping and Hydrographic Surveys

Profiling sonar is a cornerstone of accurate underwater mapping. It offers detailed data for creating bathymetric charts, which are essential for navigation, dredging operations, and harbor maintenance.

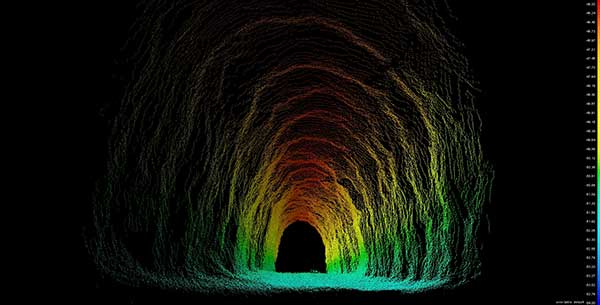

sonar profiling technology by Teledyne Marine

Environmental Monitoring

This technology is critical for monitoring aquatic ecosystems, assessing coastal erosion, and conducting flood risk assessments. Profiling sonar helps researchers track sediment movement and evaluate habitat changes.

Offshore Energy Exploration

Profiling sonar systems are integral to offshore wind farm surveys, pipeline inspection, and seabed profiling for oil and gas exploration. By identifying seabed conditions and potential hazards, they ensure safe and efficient operations.

Fisheries Research and Aquaculture Monitoring

Marine biologists and fisheries managers use profiling sonar to study fish populations, assess aquaculture environments, and optimize sustainable practices.

Underwater Archaeology and Infrastructure Inspection

Profiling sonar aids archaeologists in locating and studying submerged artifacts, while engineers rely on it to inspect underwater structures such as bridges, dams, and offshore platforms.

acoustic imaging sonar technology

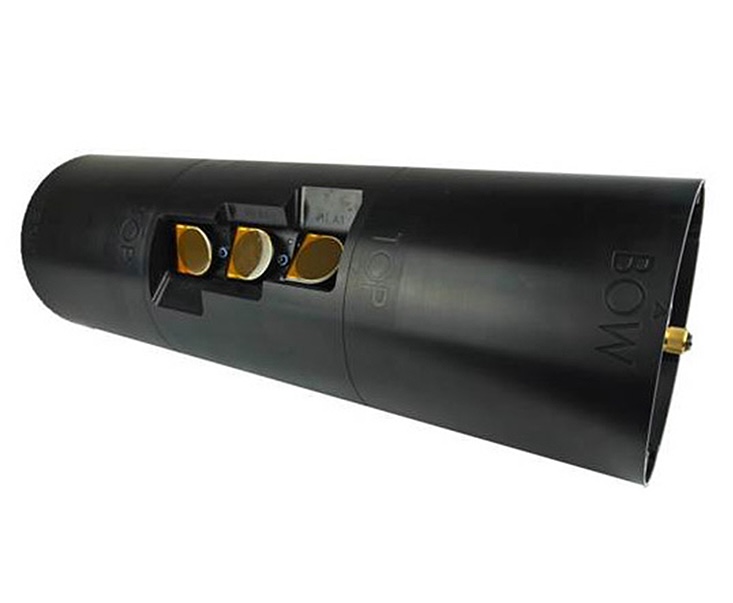

BlueView T2250-360 Tunnel Profiler for Subsurface Inspection by Teledyne Marine

Profiling Sonar in Modern Research

Advancements in sonar technology continue to enhance the capabilities of profiling systems. From integrating low-frequency sonar for deeper penetration to deploying sonar-equipped drones for rapid data collection, the evolution of profiling sonar is expanding its impact on scientific and industrial fields.

Profiling sonar represents a critical advancement in underwater technology. It offers unmatched precision and reliability for vertical measurements and structural analysis. Its versatility spans industries, supporting applications from seabed mapping to environmental monitoring. By distinguishing itself from imaging sonar, profiling sonar delivers the depth and accuracy needed to address complex underwater challenges.

Products (2)

BlueView T2250-360 Tunnel Profiler

High-Resolution 360° Profiling Sonar for Subsurface Inspection

High-Resolution 360° Profiling Sonar for Subsurface Inspection
...is an advanced profiling sonar designed to deliver 360° subsea imaging for tunnel and cave...
ISP360 Profiling Sonar

High-performance profiling sonar for underwater measurement and research

High-performance profiling sonar for underwater measurement and research
...gh-Performance Profiling Sonar is a cutting-edge solution for demanding subsea measurement... .... Its acoustic systems support Continuous Wave (CW), Compressed High-Intensity Radar Pulse (CHIRP),...

Related Articles

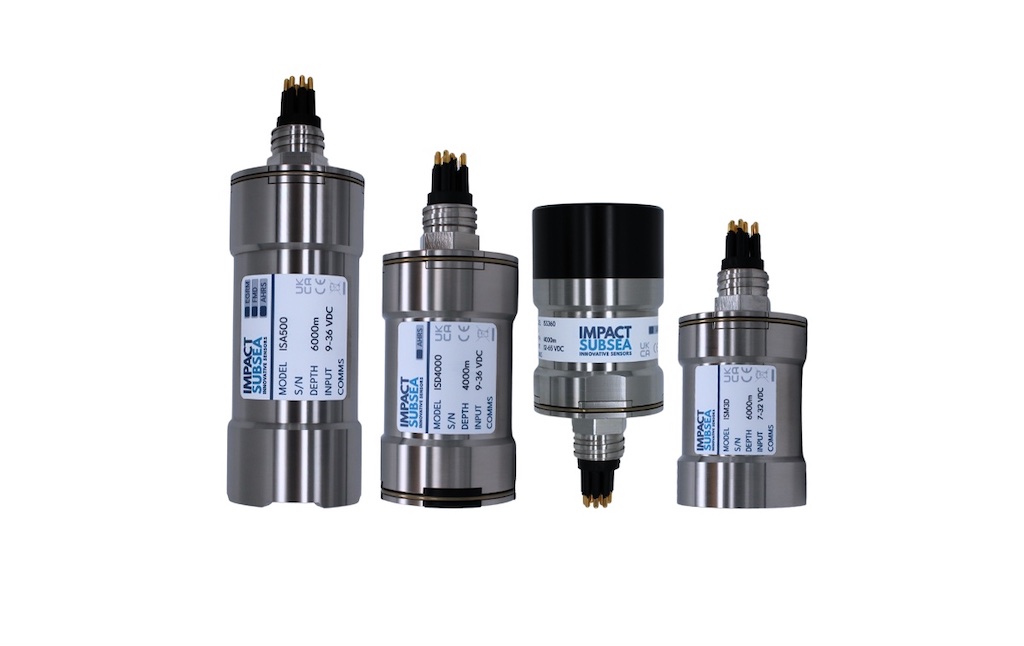

Profile Spotlight: Impact Subsea & Underwater Sensing Technologies

Impact Subsea has been working with OST to showcase its marine sensing technologies, designed for offshore energy, environmental & oceanographic research, defense, and more

Dec 17, 2024

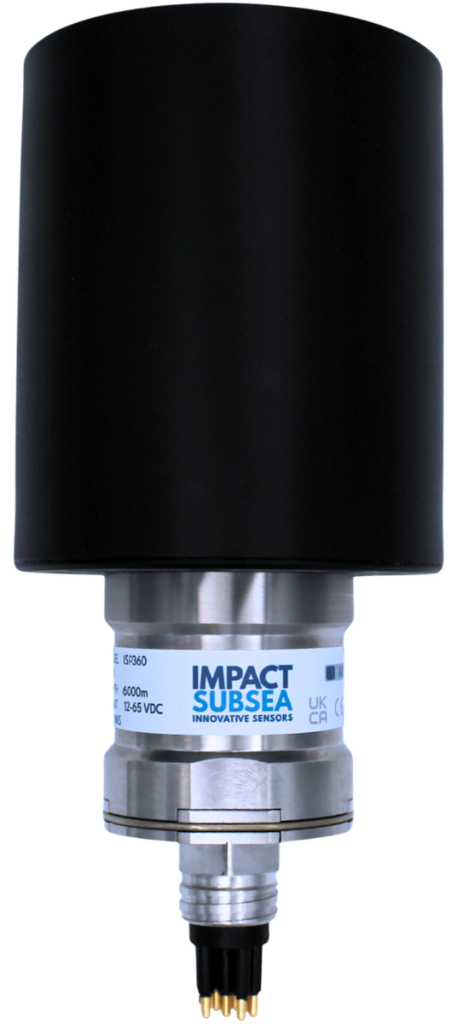

New Profiling Sonar Released with Acoustic Signaling Technology
