DTG3 Remotely Operated Vehicle
The DTG3 is a rapidly-deployable ROV with a rugged machined anodized aluminum body, designed to undertake inspections and surveys under harsh environmental conditions. Equipped with three precision thrusters and a patented pitch system, it features automatic stabilization and can rotate 180 degrees to perform lateral movements.
The vehicle is equipped with a full HD camera (upgradeable to 4K) on a 270-degree rotating platform, providing a wide range of view for maximum situational awareness. It can also be fitted with a range of other add-ons to enhance functionality, including:
- Grabber: enables retrieval of objects, holding of tools, and deployment of equipment.
- Laser Scalers: provide size estimation during visual inspections.
- USBL Positioning: provides information on the relative position of the ROV.
- Thickness Gauge: evaluates the thickness of steel on tanks and hulls.

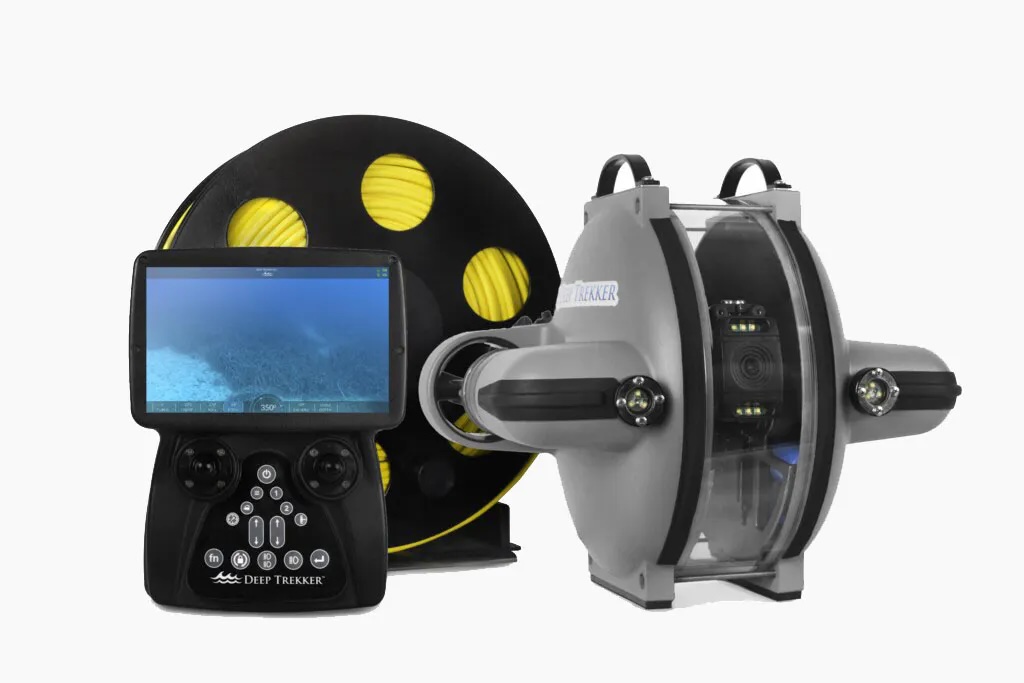

The complete ROV kit can fit into a single Pelican case, and includes the advanced BRIDGE integrated controller, a 75m tether, and a tether reel.
| Dimensions (L x W x H) | 279mm (11.0”) x 325mm (12.8”) x 258mm (10.2”) |
| Weight (in air) | 8.5 kg (18.7 lbs) |
| Depth Rating | 200m (656 ft) |
| Operating Temperature | -10°C to 50°C (14°F – 122°F) |
| Camera Specs | Full HD 1080p - 1920x1080 30FPS 0.001 Lux, 270° |
| Lights | High-efficiency, fully-dimmable LED 1000 lumens tracking with camera Optional 1000-4400 lumens add-ons |
