Strategic Robotic Systems (SRS) is the developer of an innovative cutting-edge underwater vehicle platform that seamlessly combines tethered ROV, untethered AUV, and diver propulsion capabilities in one. Designed in close collaboration with marine operators and organizations, FUSION has been designed to undertake a wide variety of challenging subsea missions in the civilian, security and defense sectors.

FUSION

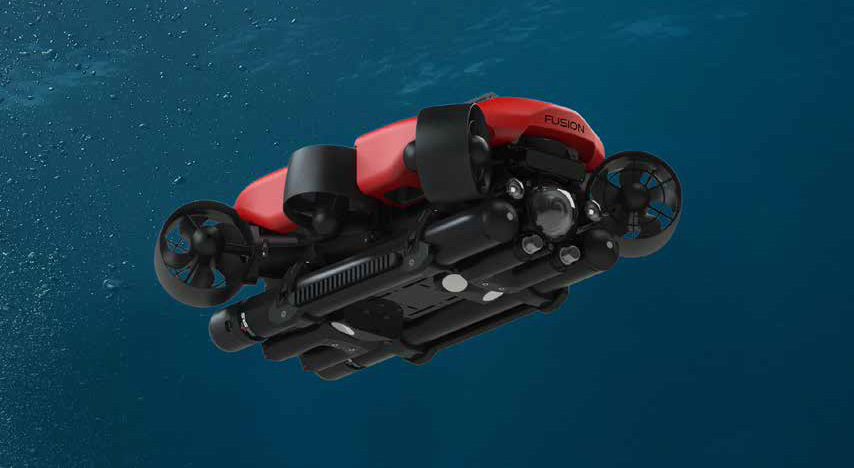

Hybrid underwater robotic vehicle with unparalleled multi-mission versatility

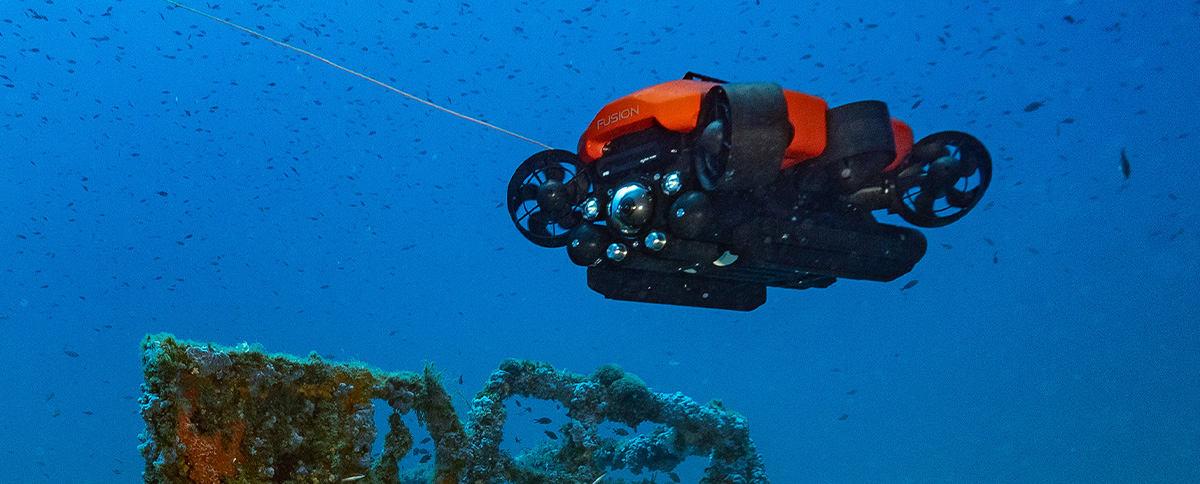

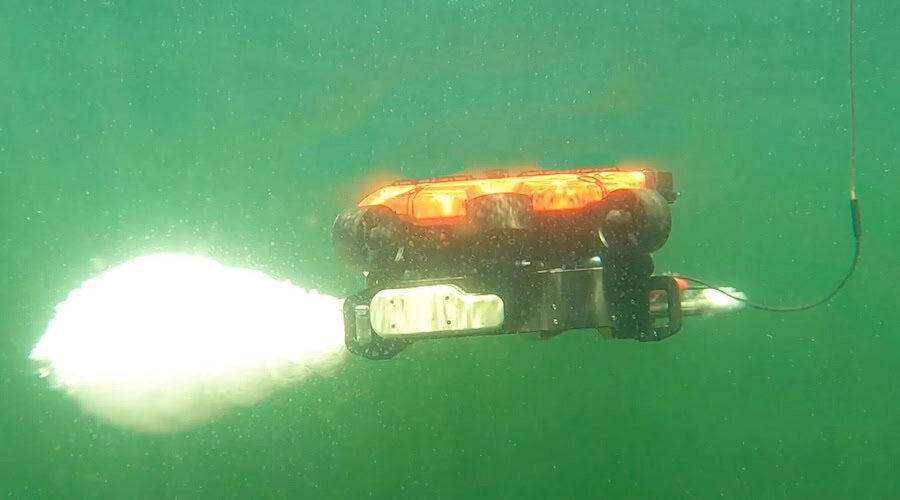

FUSION is the world’s first underwater vehicle platform to offer ROV, AUV and diver propulsion modes in the same system. Developed with the operator foremost in mind, it utilizes a sophisticated sensor suite to maximize operational abilities, with a simple and intuitive user interface that minimizes the learning curve and cognitive burden.

The multifunction underwater vehicle is powered by high-density Li-ion modules with rapid recharging and extended endurance capabilities. High-efficiency brushless DC thrusters with quick-release outrunner motors provide the utmost in maneuverability and reliability.

FUSION operates from an extremely small expeditionary footprint due to its battery power, allowing it to be rapidly deployed from a range of vessels of opportunity. It is compact and lightweight enough to be transported as excess checked baggage.

More information: FUSION hybrid underwater robotic vehicle

Multifunctional operating modes and modular payload options

FUSION’s unique ability to operate in three different modes makes it an unparalleled force multiplier for a wide range of demanding underwater operations. Switching between modes is easy, and the system can be deployed within minutes right out of the box.

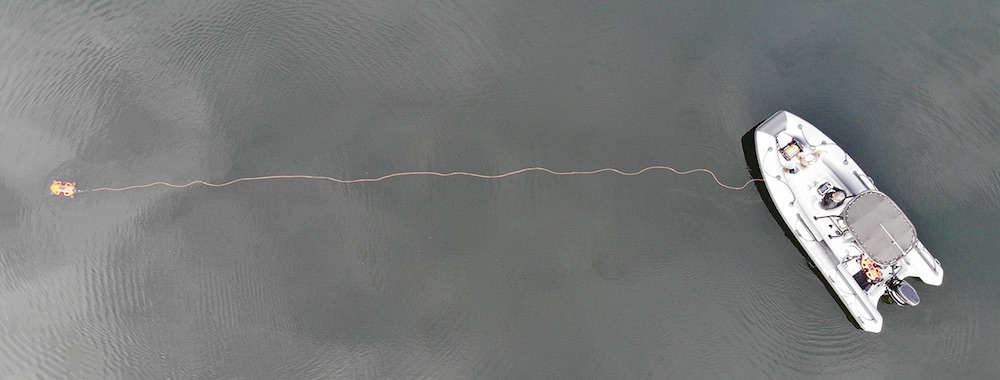

Tethered ROV – provided with a low-drag 500-meter tether as standard, FUSION is also available with 1000- or 2000-meter options. These longer cables are fiber optic and maintain the same small diameter. Both versions are strong enough to engage in recovery of underwater objects and even drowning victims.

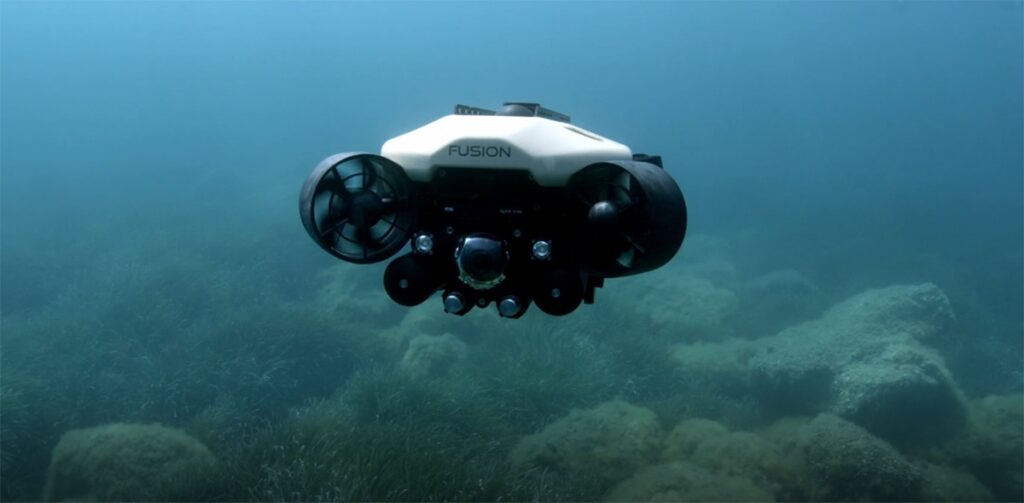

Untethered AUV – missions can be preprogrammed via the intuitive user interface, including complex operations that go far beyond simple grid-pattern surveys. A variety of high-resolution data can be captured, including sonar and video.

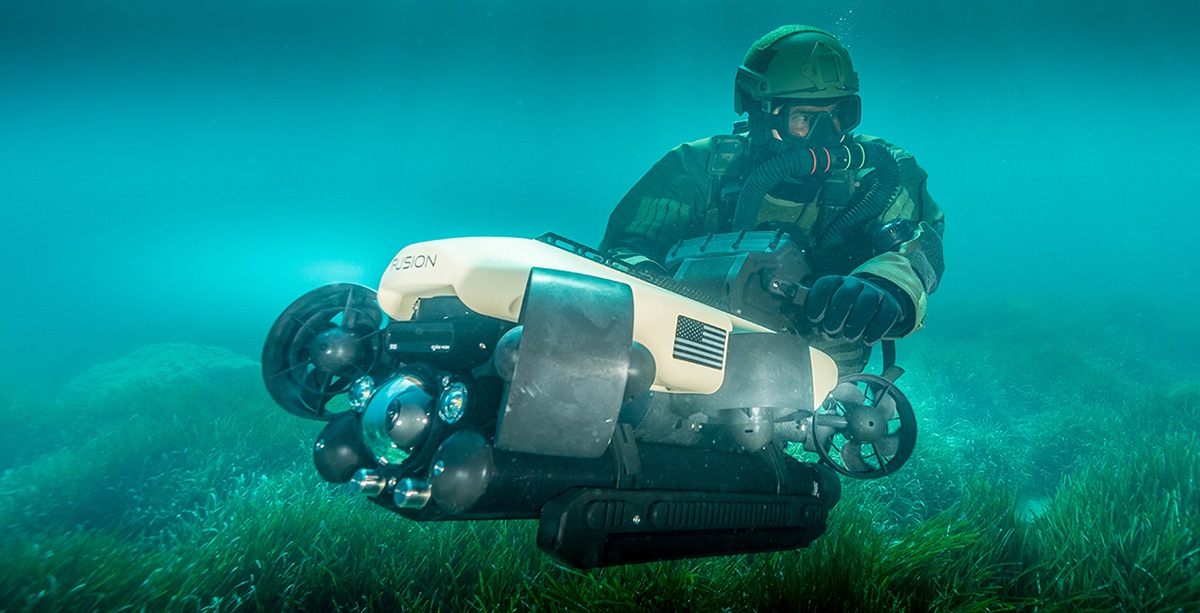

Diver Controlled Vehicle – with an easily-attached module, FUSION can be converted into a diver controlled vehicle. In this mode the vehicle can assist and tow the diver while enabling the operator to utilize the onboard sensors for navigation, imaging and data collection while using the vehicle’s thrusters for underwater traversal. In the diver controlled configuration the vehicle can also be operated completely subsurface as a fully submersed diver controlled ROV.

The versatile vehicle includes a modular payload bay and skids that can be equipped with a variety of sensors and equipment. Options include:

• 5kg and 10kg releasable payload containers with integrated buoyancy modules
• Various third-party EOD disruptor skids
• 450kHz and 900kHz Side Scan Sonar modules
• Two-function grabbers, up to 3kg lift and continuous rotation available
• Dual five-function manipulators with included control master arms
• 360 Scanning Sonar
• Laser Scaler
• Auxiliary Camera
• Magnetometer
• Metal Detector
• Thickness Gauge
• Diver Control Module

Custom engineered solutions for integration available on request.

Learn more: FUSION’s sensors and capabilities

Intuitive streamlined software hub & compact handheld controllers

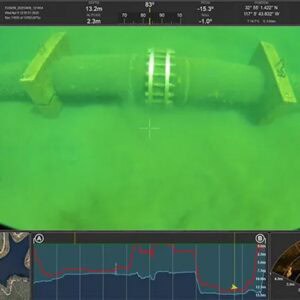

FUSION’s operator software consolidates control, visualization, mission planning, data logging and analysis, reporting and more into a single streamlined and intuitive user interface.

Capabilities include:

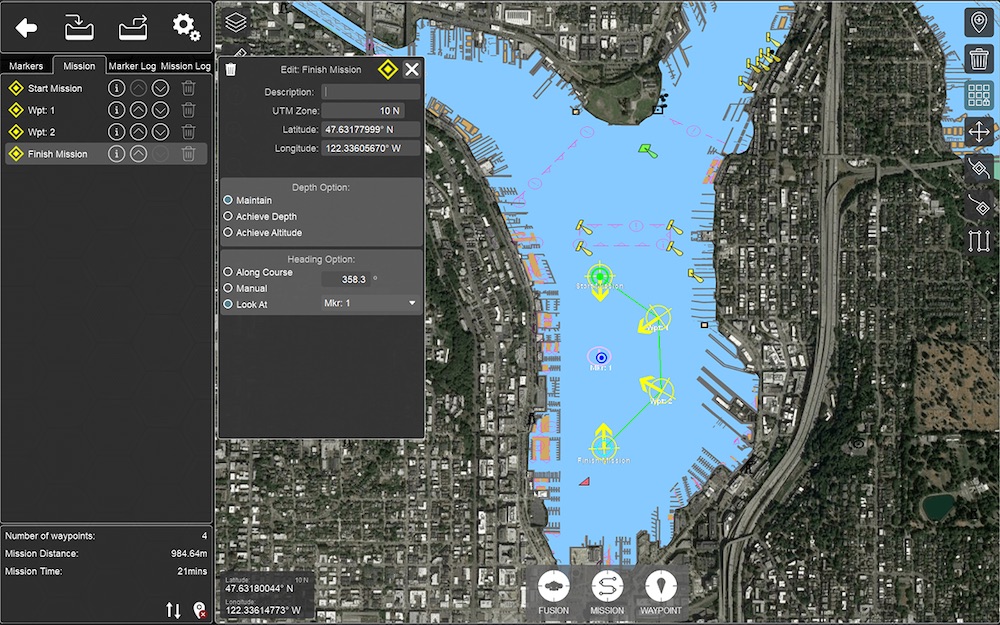

• Programming missions for AUV / Mission / Diver modes
• Downloading files collected during AUV missions
• Playback of logged files
• Real-time control in ROV mode

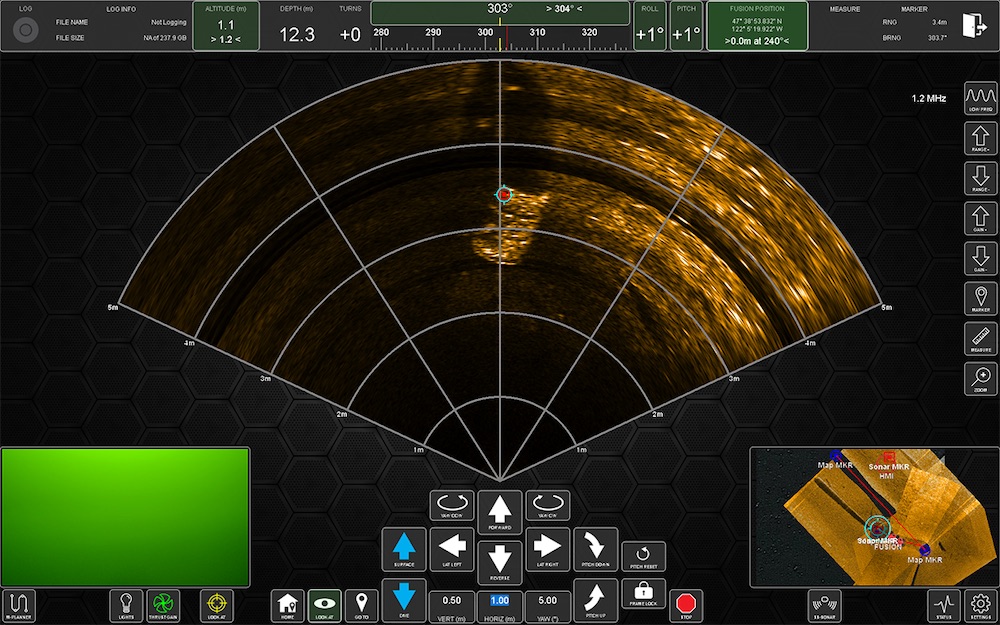

• Real-time sensor data visualization in ROV mode

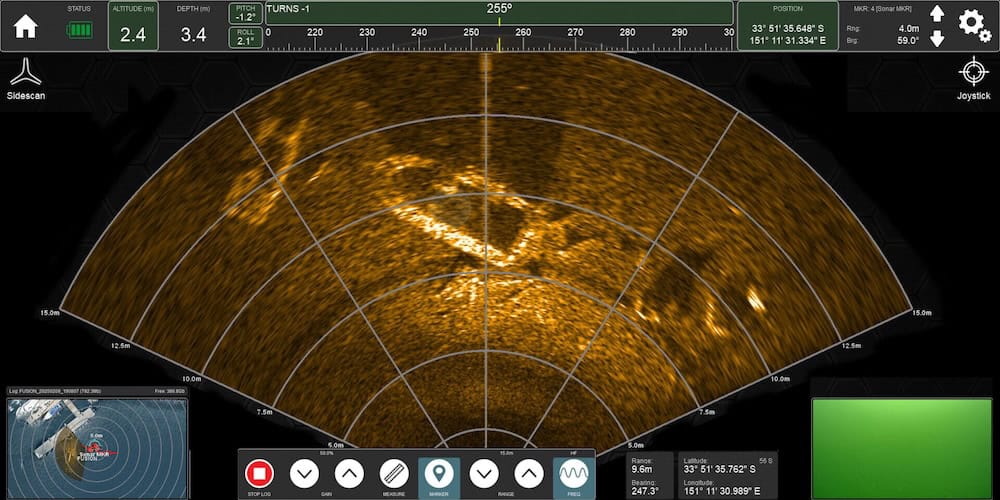

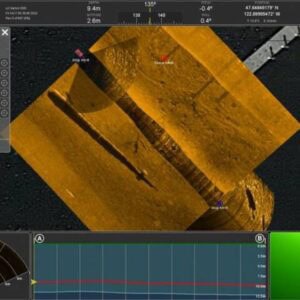

• Real-time data mosaic for forward and side scan sonars
• Post-mission automated report generation
• Data export and map generation
• Acoustic control and communications

The FUSION package comes with a choice of controller, both engineered with ergonomics and usability in mind and pre-installed with the user interface software.

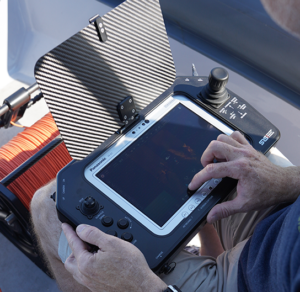

HMI Compact – small form factor handheld controller that can be operated while standing or sitting. It features a high-brightness touchscreen, single-axis and 3-axis joysticks, and a ruggedized housing built to withstand punishing marine conditions.
