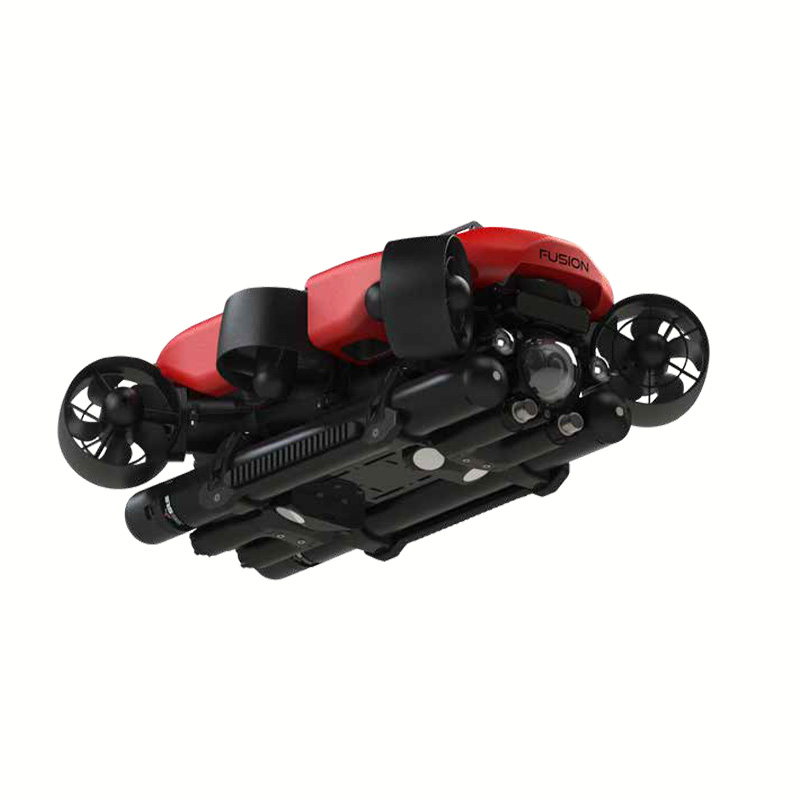

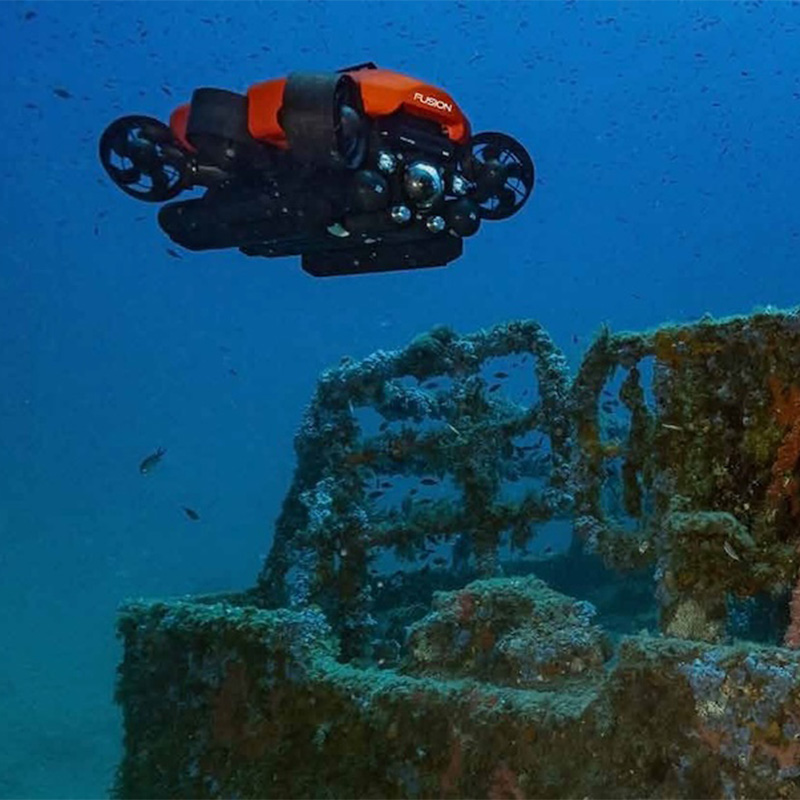

Strategic Robotic Systems' FUSION is the first underwater robotic vehicle on the market to seamlessly combine tethered ROV, untethered AUV, and diver propulsion capabilities in a single platform, offering a powerful force multiplier and true multi-mission versatility. Based around a cutting-edge suite of carefully selected and positioned sensors, including GNSS, USBL, DVL, AHRS and sonar, it delivers the utmost in stability and ease of operation.
The platform is powered by high-density Li-ion modules and high-efficiency brushless DC thrusters with quick-release outrunner motors for maximum reliability. Designed to be operational in minutes right out of the box, it can operate from a variety of vessels of opportunity with an extremely small expeditionary footprint, and is compact and lightweight enough to be transported as excess checked baggage.
FUSION's skids and modular payload bay can be equipped with a variety of sensors and equipment to outfit it for virtually any mission. Options include:
- Payload containers with integrated buoyancy modules
- Forward-looking sonars & DVLs
- Zero Point TiTAN EOD disruptor
- Side scan sonar
- Multifunctional grabbers and manipulators
The complete package also comes with a choice of controller, as well as pre-installed user interface software that provides an intuitive and streamlined center for control, visualization, mission planning, data logging and analysis, reporting and more.
| Dimensions (L x H): | 686 x 275 mm (27 x 10.8”) |
| Weight in Air: | 27.5 kg (60 lbs) |
| Depth Rating: | 305 m (1000 ft) |
| Endurance: | 3 – 4 hrs typical |
| Camera: | UHD 4K, 135o tilt, 110o FOV in water |
| Lighting: | 2 x LED, 1500 Lumen each |
| Forward Sonar: | Dual Frequency 750 kHz / 1.2 MHz / 3.0 MHz (optional)
130o/80o horizontal beam width 20o/12.5o vertical beam width 100 m/ 40 m (328 ft / 115 ft) max range 0.1 m (4 in) min range 4 mm / 2.5 mm (0.16 / 0.1in) range resolution 1o/0.6oacoustic angular resolution 15 Hz update rate 256 beams |
| USBL: | 1 km (3,280 ft) hemispherical range
1o angular resolution ±50 mm (2 in) range resolution 24-32 kHz frequency |
| DVL: | 1 MHz
50 m (164 ft) max range 0.2 m (0.65 ft) min range ±0.2% long range accuracy 0.01 mm/s velocity resolution ±16 m/s velocity range |
| Tether: | 500 / 1000 / 2000 m (1640 / 3280 / 6561 ft)
Fiber 2.4 mm (0.09 in) / Copper 3mm (0.12in) diameter |
