Advanced Motion Sensing Solutions for Offshore & Marine Autonomous Systems
AMCORIS, a specialist sensor technology brand from Channel Microelectronic, is an expert provider of advanced motion sensing solutions for offshore and marine autonomous systems.
With over 35 years of experience in the semiconductor industry and a proven track record in custom electronics and sensor design, we maintain an extensive network of partners, suppliers and customers around the world, and can offer international project management capabilities.
Our high-performance MEMS IMUs (inertial measurement units) provide precision three-axis angular velocity and linear acceleration measurement in miniature and low-power packages, with excellent stability thanks to a unique quartz crystal element design. The innovative sensors incorporate a suite of correction functions that maximize accuracy under demanding real-world conditions, including temperature, alignment, sensitivity and offset compensation.
AMCORIS IMUs are ideal for a range of marine platforms, enabling USV, AUV and ROV navigation and autonomy as well as roll and pitch stabilization. IP67-rated models are available for the most challenging operational environments.

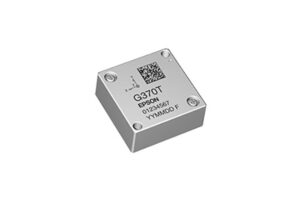

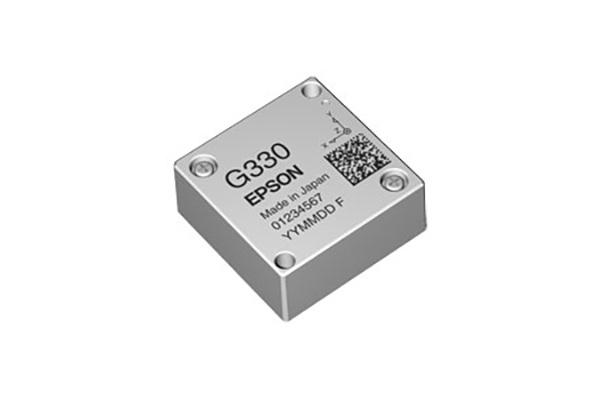

Best SWaP-C
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
1.2°/h bias instability
0.08°/√h ARW
SPI/UART interface

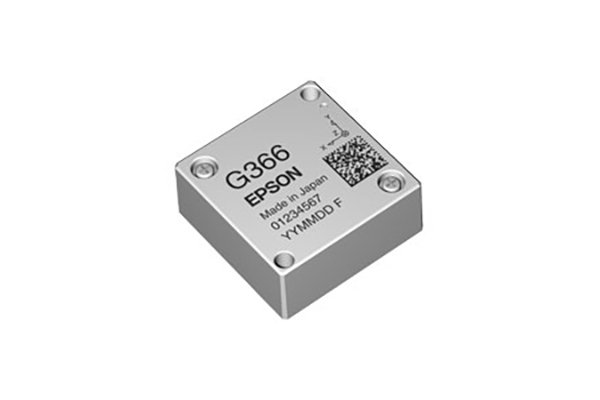

Entry Level
24 x 24 x 10 mm
±400°/s gyro range, ±8/16g accelerometer range
3°/h bias instability
0.1°/√h ARW
SPI/UART interface

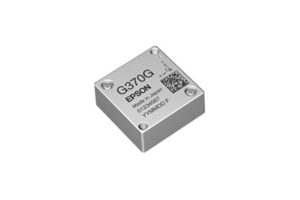

High Performance
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
0.8°/h bias instability
0.06°/√h ARW
SPI/UART interface

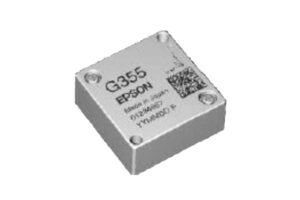

24 x 24 x 10 mm
±200°/s gyro range, ±8/16g accelerometer range
0.8°/h bias instability
0.03°/√h ARW
SPI/UART interface
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
1.2°/h bias instability
0.08°/√h ARW
SPI/UART interface

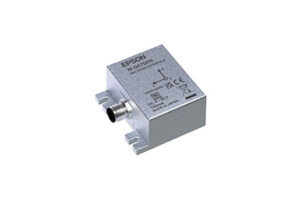

65 x 60 x 30 mm
±475°/s gyro range, ±15g accelerometer range
0.5°/h bias instability
0.04°/√h ARW
RS-422 interface

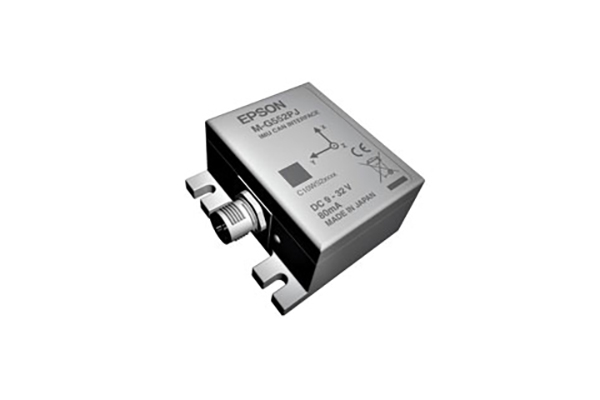

65 x 60 x 30 mm
±450°/s gyro range, ±10g accelerometer range
0.8°/h bias instability
0.06°/√h ARW
J1939 interface (CANopen or RS-422)

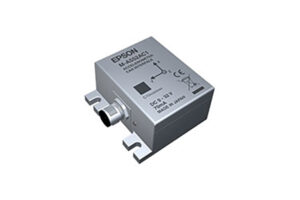

Our quartz accelerometers offer a range of advantages over standard MEMS technologies, including enhanced accuracy and stability, and provide digital outputs for easy integration into sensor systems. The product range includes IP67-rated models for operation in harsh environmental conditions, as well as options for SPI/UART, CAN and serial interfaces.
The compact units output precise and reliable linear acceleration data for marine autonomous systems stabilization and guidance, and are also ideal for structural monitoring and vibration and tilt sensing.

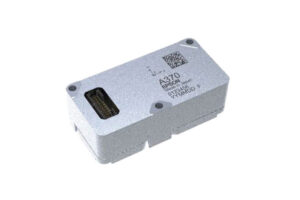

48 x 24 x 16 mm
±10g range
210 Hz bandwidth
1000 sps output rate
SPI/UART interface

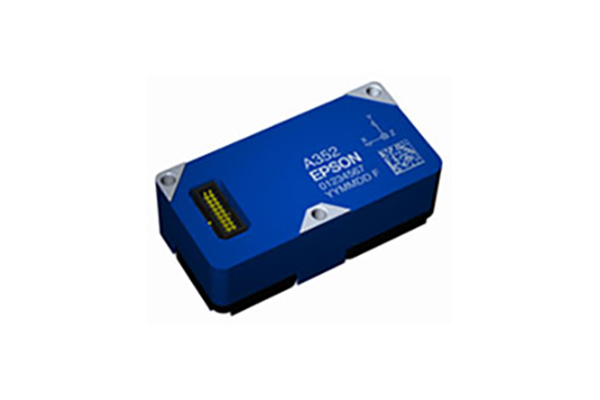

48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
SPI/UART interface

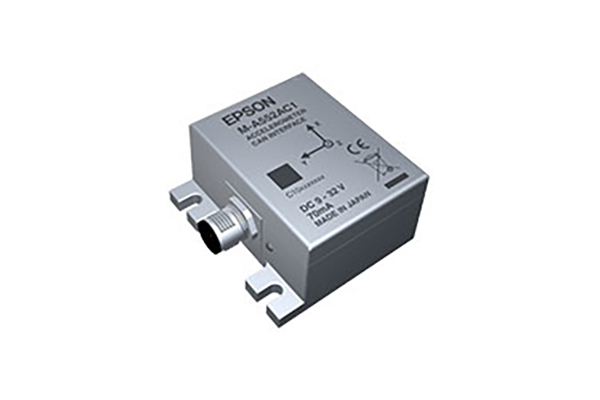

48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
CANopen interface
48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
RS-422 interface
Our vibration sensors utilize innovative quartz micromachining technology to provide precise and stable three-axis measurement of velocity and displacement associated with vibration. They feature a small form factor design and digital outputs for easy integration into existing systems, and a water- and dust-proof IP67-rated model is available for harsh marine environments.
The sensors are ideal for measuring vibration conditions and patterns in onboard vessel and submersible components such as motors and rotating machinery, enabling optimized operation and allowing for fault detection and predictive maintenance.

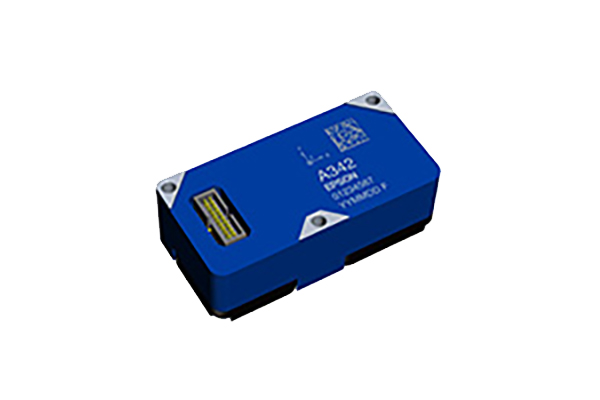

48 × 24 × 16 mm
±100 mm/s velocity range, ±200 mm displacement range
10 – 1000 Hz velocity frequency range, 1 – 100 Hz displacement frequency range
SPI/UART interface

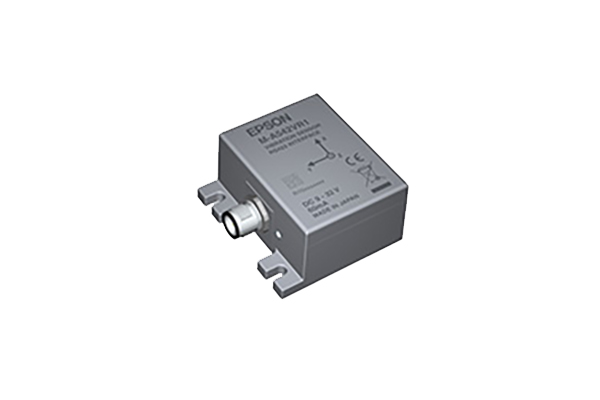

60 x 60 x 30 mm
±100 mm/s velocity range, ±200 mm displacement range
10 – 1000 Hz velocity frequency range, 1 – 100 Hz displacement frequency range
IP67-rated RS-422 interface

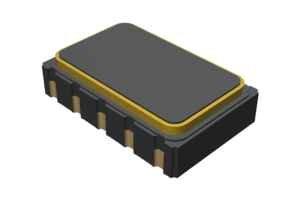

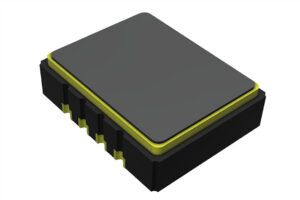

AMCORIS quartz gyro sensors are designed with a unique double-T structure crystal element, resulting in precision angular velocity outputs with stability levels that rival those of more expensive high-end gyroscope technologies.
The ultra-reliable sensors are ideal for precise positioning and stabilization of surface and subsea robotic vehicles and equipment, and can also be incorporated into navigation systems for autonomous operations.
5.0 x 3.2 x 1.3 mm
+/- 115 or 460°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface
5.0 x 3.2 x 1.3 mm
+/- 115 or 460°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SafeSPI interface
5.0 x 3.2 x 1.3 mm
+/-400°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface
5.0 x 3.2 x 1.3 mm
+/-400°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface
6.5 x 5.2 x 1.9 mm
+/-160°/s rate range
+/- 30g acceleration range
+/- 3°/s typical bias
SPI interface
