ROV Locator USBLs
Topside Unit Specifications:
Deepside Unit Specifications:
Cerulean Sonar’s ROV Locator (ROVL) family provides a range of cost-effective USBL positioning capabilities for UUVs (unmanned underwater vehicles) at depths of down to 300 meters. Three different variants are available:
- Mk II – utilizes separate GNSS devices on topside receiver and ROV transmitter to synchronize the clocks on each unit

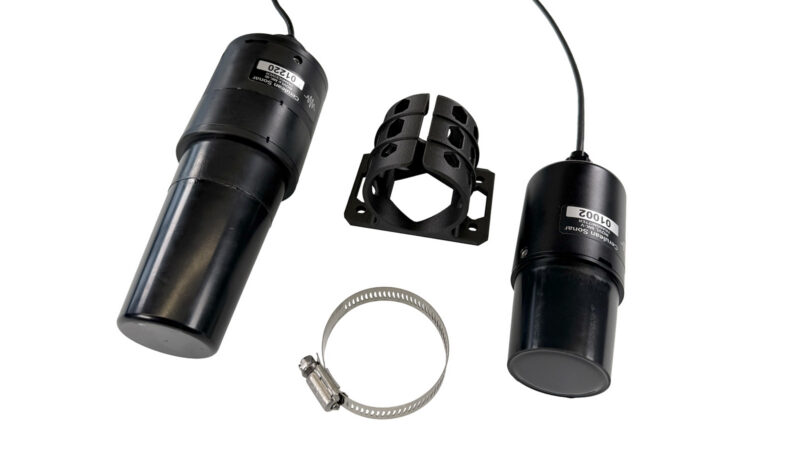

- Mk III – uses duplex acoustic communication with a transceiver on the topside and a transponder on the ROV, requiring no clock synchronization

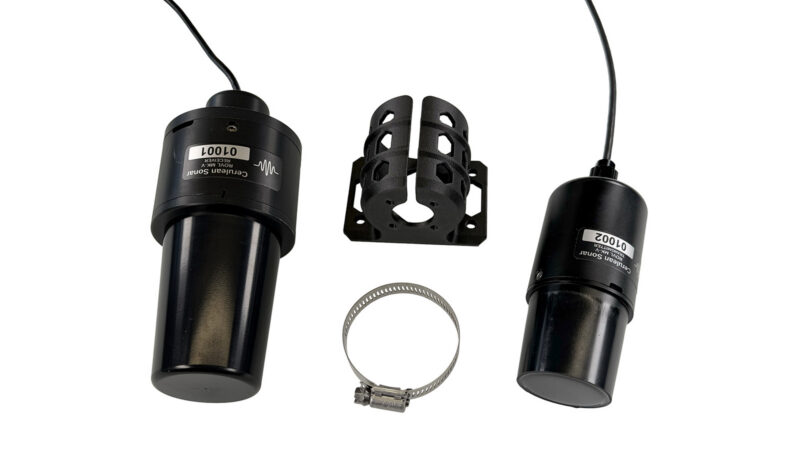

- Mk V – utilizes a common Ethernet connection with a private protocol similar to an NTP server for accurate and drift-free synchronization that is independent of the speed of sound and does not rely on GNSS
| Mk II | Mk III | Mk V | |
| Mass: | 335g | 600g | 325g |
| Weight in Water: | -65g | -120g | -75g |
| Power: | 5 – 28V, ~1.5W | ||
| Max Range: | 500m | 300m | 300m |
| Update Rate: | 1 Hz | 1Hz | 1 – 5 Hz (range dependent) |
| Ping Frequency: | 25 kHz | ||
| Apparent Yaw/Azimuth Resolution: | 0.1 deg | ||
| Apparent Elevation Resolution: | 0.1 deg | ||
| Slant Range Measurement Resolution: | 0.1m | ||
| Transmit Acoustic Power: | 185 dB typical (re 1uPa @ 1 m) | ||
| Mk II | Mk III | Mk V | |
| Mass: | 300g | 300g | 440g |
| Weight in Water: | -100g | -100g | 170g |
| Max Depth: | 300g | ||
| Vin Power: | 5 – 28V 1.4W @ 5V 1.6W @ 28V |
5 – 28V 1.7W av, 2.9W peak @ 5V 1.3W av, 4.1W peak @ 16V |
10 – 28V 3W @ 16V |
| Transmit Acoustic Power: | 185 dB typical (re 1uPa @ 1 m) | ||
