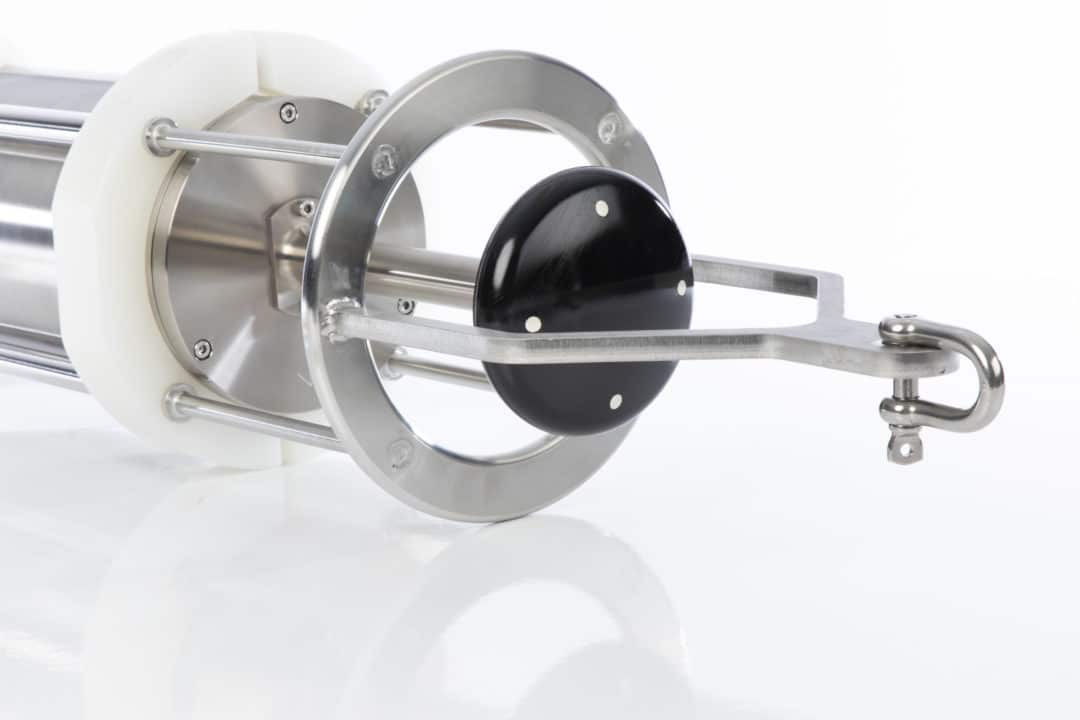

MIDAS ECM
The MIDAS ECM is a multiparameter current meter that can be deployed autonomously or with up to several thousand metres of cable. The versatile electronics architecture allows for multiple additional sensors to be connected, with a variety of communications options.
The unit can be supplied with acetal or titanium housings, for operations down to 500 or 500 metres respectively.
Specifications:
| Dimensions (D x L) | 150 x 700 mm |
| Weight |
20 kg titanium 12kg acetal |
| Depth Rating |
5000m titanium 500m acetal |
| Power |
1.7W (sampling) <1mW (sleeping) |
| Current |
Range 0–5 m/s Accuracy +/-1% reading Resolution 0.001 m/s |
| Direction |
Range 0 – 360° Accuracy +/- <1° Resolution 0.001° |
| Temperature |
Range -5°C – +35°C Resolution 0.002°C Accuracy ±0.005°C |
| Pressure |
Range up to 500 bar Resolution 0.001% FS Accuracy ±0.01% FS |
| Conductivity |
Range 0-80 mS/cm Resolution 0.002 mS/cm Accuracy ±0.01 mS/cm |
| Turbidity |
Range 0 – 2000 FTU Accuracy +/- 2% Resolution 0.002% |
| Data Acquisition |
1, 2, 4 or 8 Hz continuous Burst, conditional and delay modes |
