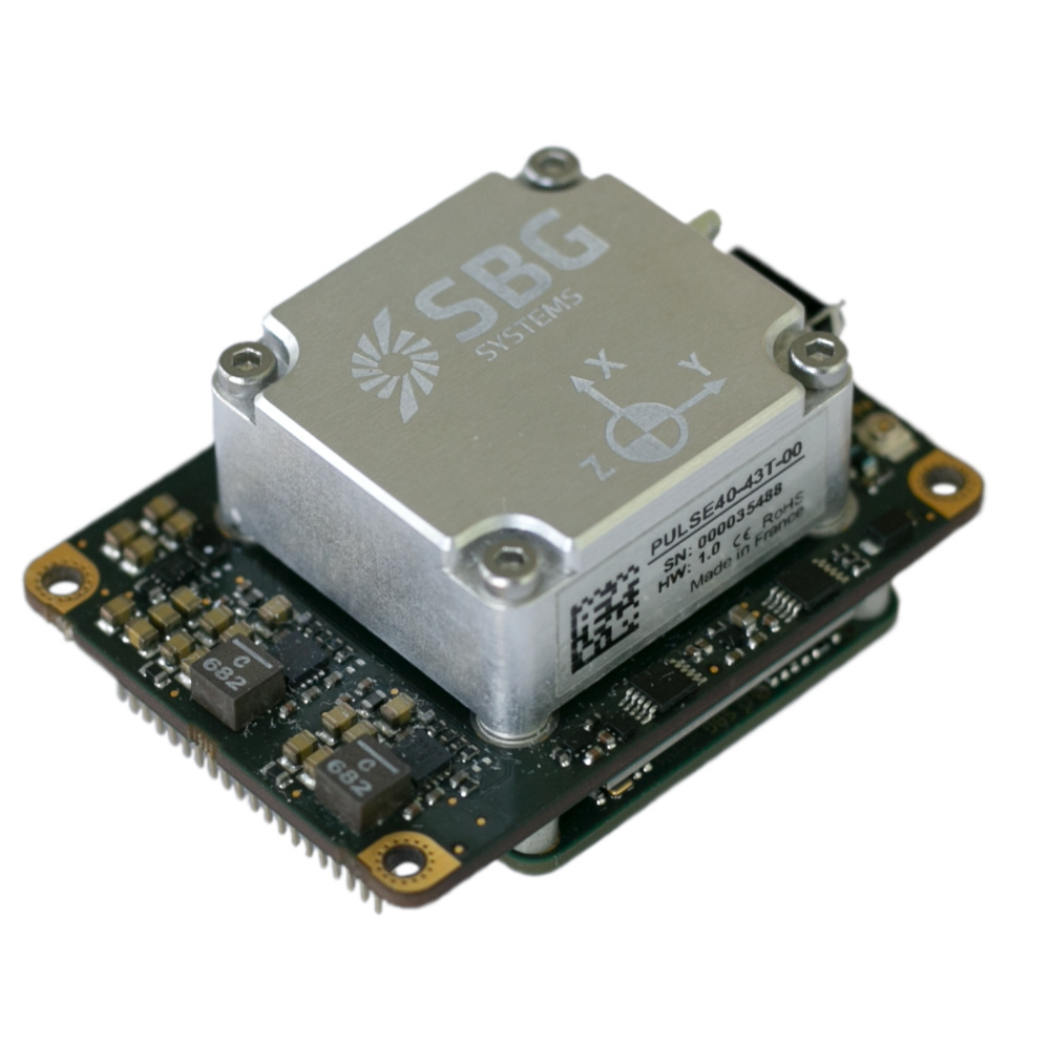

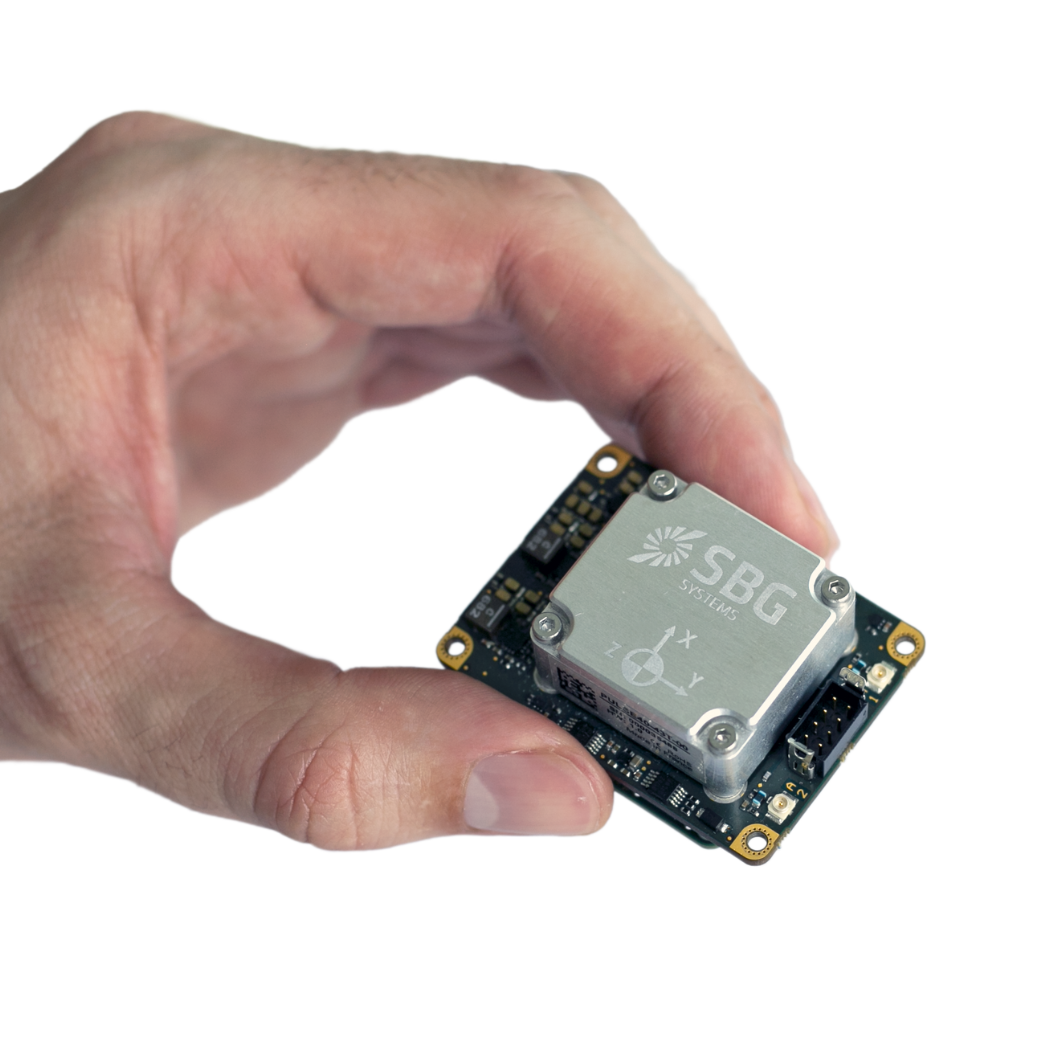

The Quanta Micro is a high-performance GNSS-aided inertial navigation system (INS) tailored for demanding marine, airborne, and land applications where space and weight are at a premium. Featuring a tactical-grade IMU coupled with a multi-frequency, quad-constellation, dual-antenna GNSS receiver, Quanta Micro delivers centimeter-level accuracy even in GNSS-challenged environments.
Designed specifically for marine LiDAR surveys and mapping, this OEM package INS ensures robust real-time georeferencing, precise photogrammetry, and reduced dependency on ground control points (GCPs). Quanta Micro operates flexibly in both single- and dual-antenna configurations, providing superior heading and position performance even under low dynamics or stationary conditions.
With professional-grade time synchronization protocols (PTP, NTP), 8 GB onboard data logging, and Qinertia post-processing integration, it offers high-precision and ease of integration across LiDAR, camera, and sensor payloads — making it the ideal choice for marine survey systems, USVs, and payloads where precision navigation is non-negotiable.
Specifications:
| RTK Horizontal Position: | 0.01 m + 1 ppm |
| RTK Roll/Pitch Accuracy: | 0.015° |
| RTK Heading Accuracy: | 0.08° |
| GNSS Receiver: | Internal dual-antenna |
| GNSS Constellations: | GPS, GLONASS, GALILEO, BeiDou, QZSS, SBAS |
| Motion Sensors: | 3 MEMS accelerometers, 3 MEMS gyroscopes |
| Motion Profiles: | 18 (Air, Land, Marine) |
| Weight: | 38 g |
| Dimensions (L×W×H): | 50 × 37 × 23 mm |
| MTBF (Computed): | 150,000 hours |
