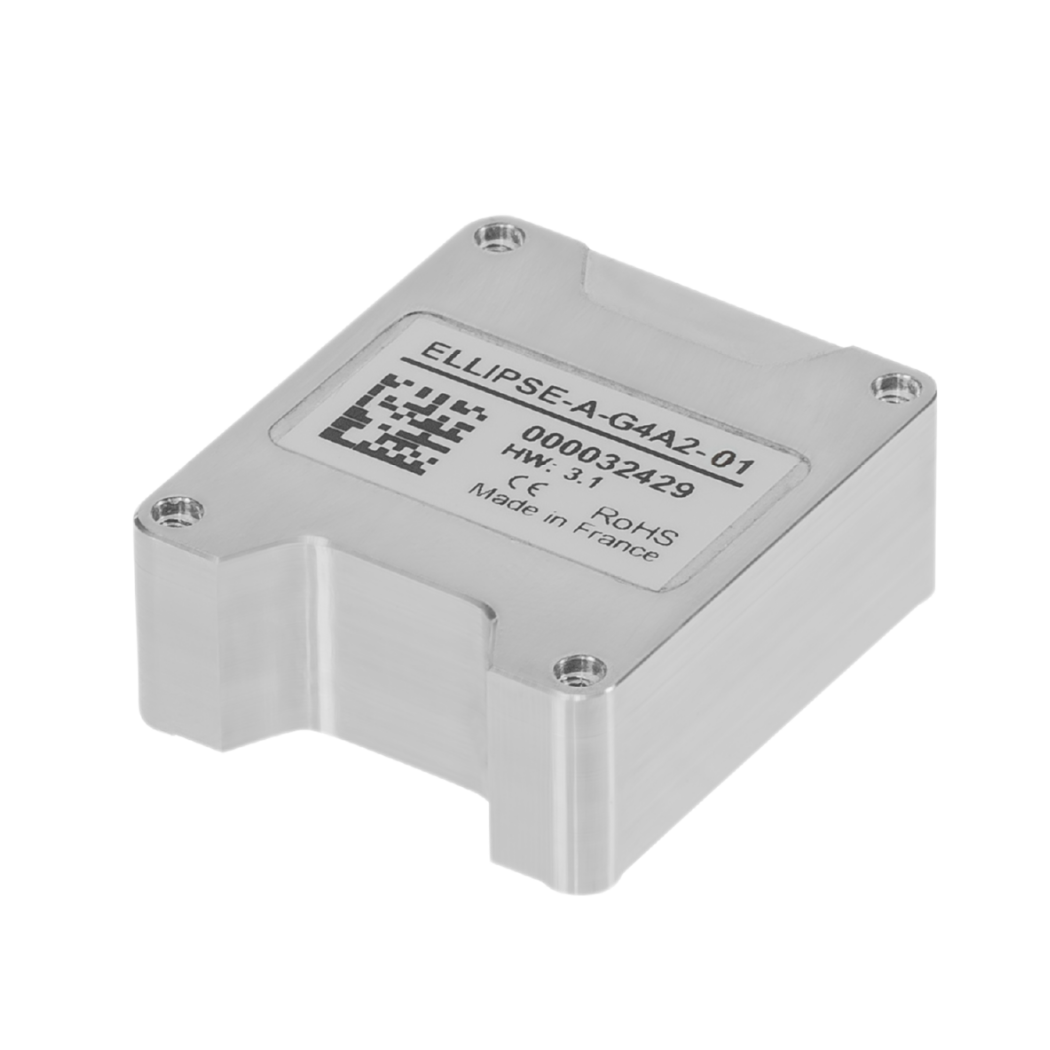

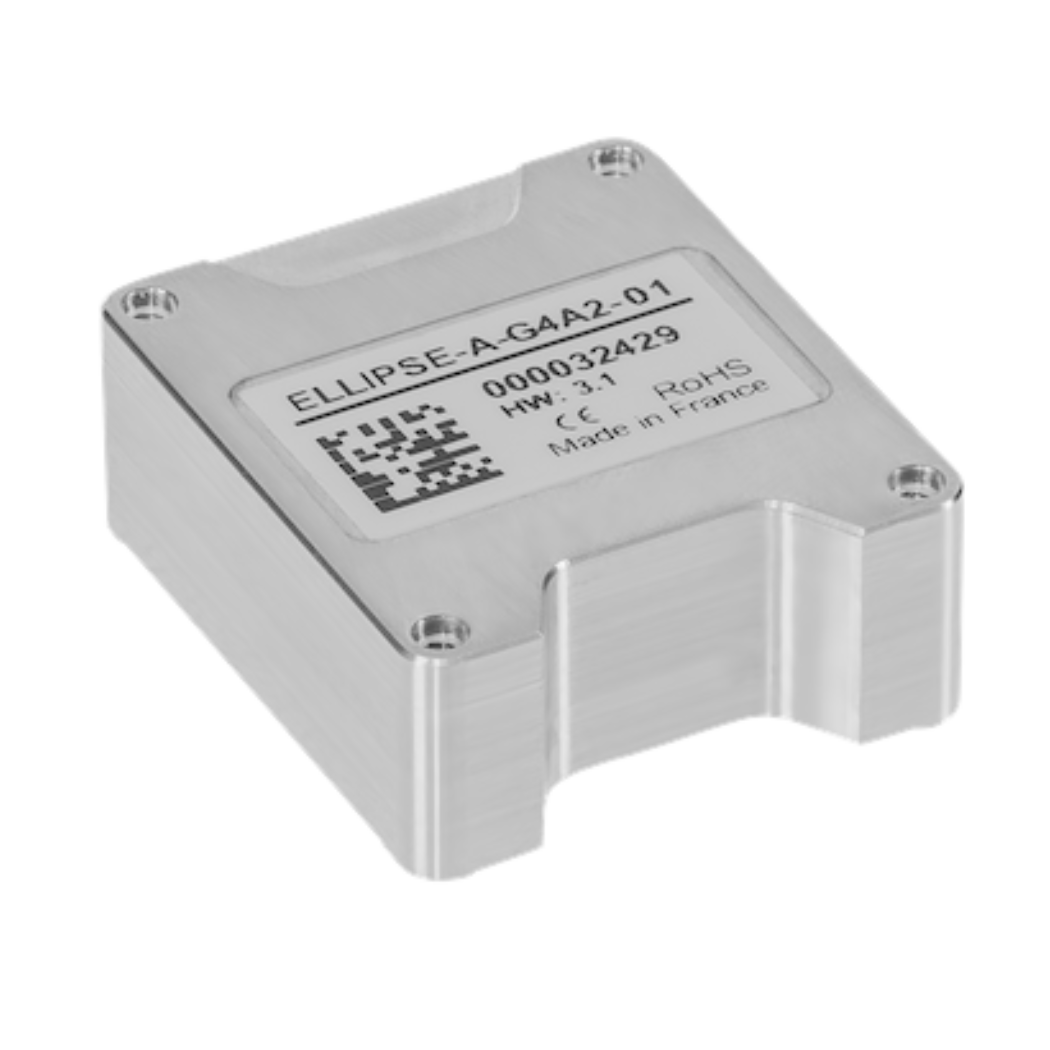

The OEM Ellipse-A is a compact, high-performance AHRS sensor module delivering precise orientation (roll, pitch, heading) and heave data for marine and offshore system integrators. Incorporating industrial-grade MEMS accelerometers, gyroscopes, and a built-in magnetometer, it combines cutting-edge calibration and filtering techniques to maintain outstanding performance across the full temperature range and under intense vibrations.
With IMU outputs up to 1,000 Hz, the OEM Ellipse-A is purpose-built for OEM integration where size, weight, and power efficiency are critical — ideal for applications like antenna tracking, USV navigation, subsea motion sensing, and SATCOM OTM systems.
Advanced sensor fusion algorithms ensure robust motion tracking, while an auto-adjusting heave algorithm refines vertical motion compensation in marine environments. Easy to configure via sbgCenter software, the OEM Ellipse-A provides reliable, real-time motion data that supports precise stabilization and pointing, even in dynamic offshore conditions.
Specifications:
| Roll/Pitch Accuracy: | 0.1° |
| Heading Accuracy (Magnetic): | 0.8° |
| Accelerometer Range: | ±40 g |
| Gyroscope Range: | ±450 °/s |
| Magnetometer Range: | 50 Gauss |
| IMU Output Rate: | Up to 1,000 Hz |
| Motion Profiles: | 18 (Air, Land, Marine) |
| Power Consumption: | 2.5 W |
| Weight: | 8 g |
| Dimensions (L×W×H): | 29.5 × 25.5 × 11 mm |
| MTBF (Computed): | 218,000 hours |
