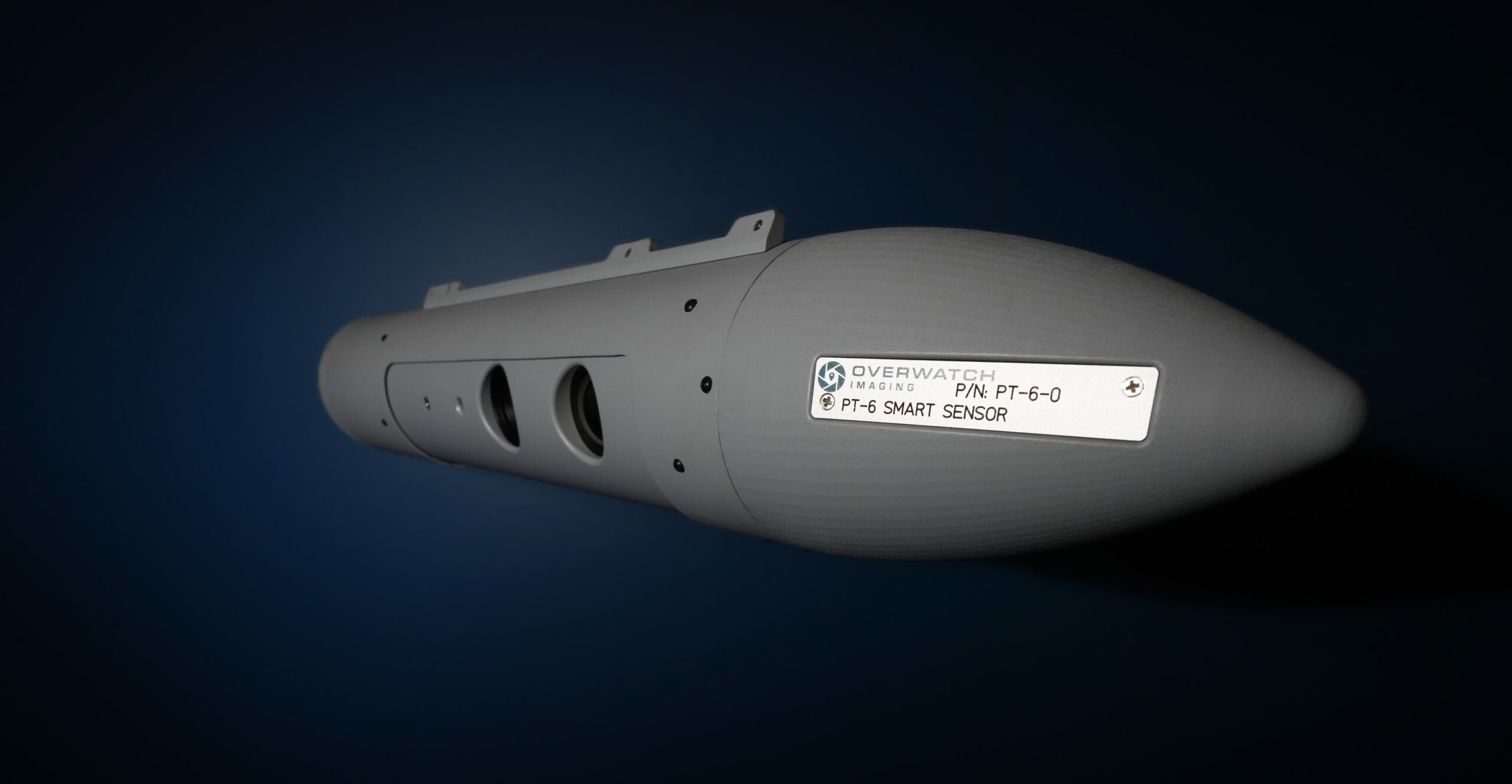

The PT-6 Smart Sensor is a compact, low-SWaP imaging payload engineered for rapid deployment across a broad range of UAS operating in maritime and coastal environments. Built around a roll-axis architecture similar to the TK Series, the PT-6 delivers adaptable performance for wide-area maritime search, vessel detection, and domain awareness, while also supporting land-based mapping and ISR tasks. The system integrates HD LWIR thermal imaging with RGB electro-optical sensing to provide step-stare imaging, and horizon-to-horizon coverage in both visible and infrared spectra, enabling consistent performance in day, night, and degraded visibility conditions.
Optimized for low SWaP, the PT-6 supports autonomous data collection, onboard analysis, and real-time delivery of actionable intelligence, supporting maritime domain awareness, search and rescue, and rapid mapping missions. As a passive sensing solution capable of functioning in communications-restricted environments, the system provides persistent monitoring while enabling sensor cross-cueing using Cursor-on-Target messaging for collaborative operations.
Specifications:
| Size: | 60 x 9.5 cm |
| Weight: | 2.5 kg |
| Avg. power: | 45 w nominal |
| Cameras: | HD LWIR & RGB |
