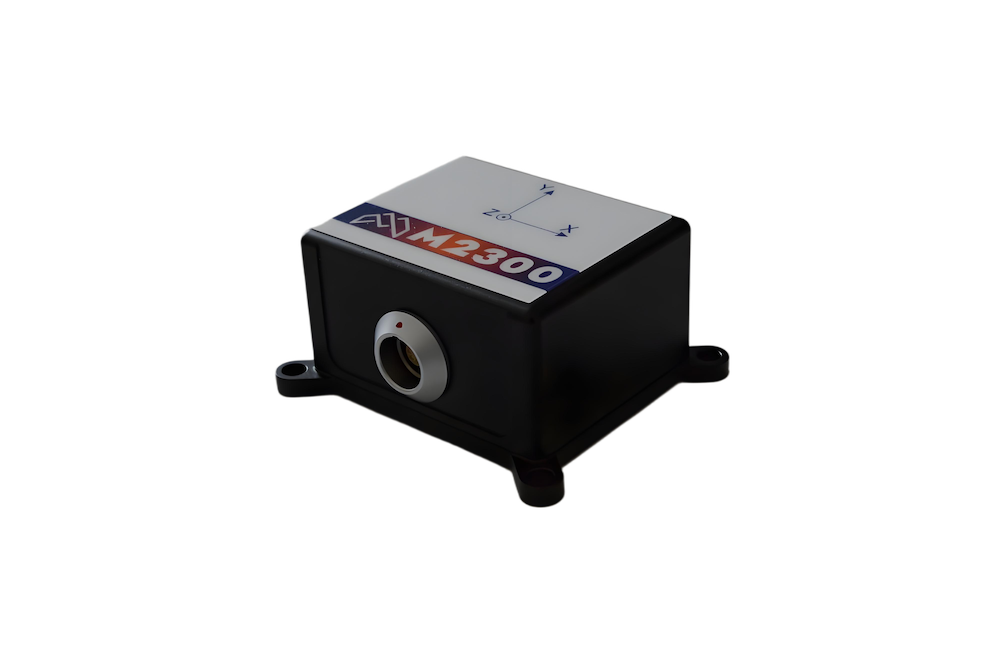

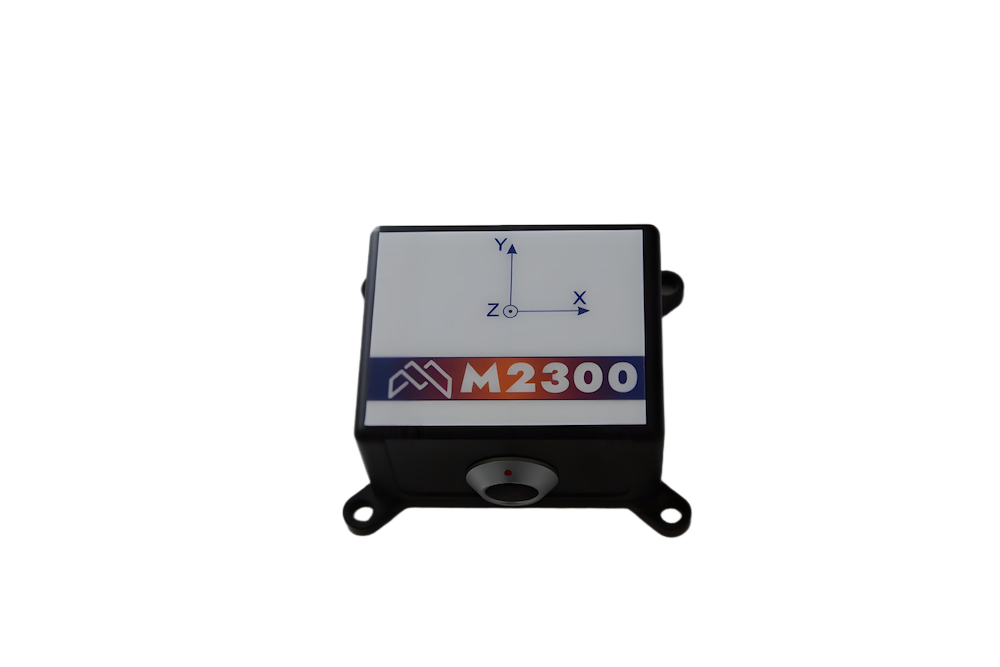

M2300
The M2300 is a MEMS-based inertial sensing system that is available as a GNSS-aided INS or as an MRU, providing three-dimensional data output that can be used for precision navigation and attitude control of small- and medium-sized crewed and uncrewed vessels as well as offshore equipment. High-performance processors and Extended Kalman Filters mitigate the effects of interference and inertial drift under highly dynamic conditions.
The compact and cost-effective unit is easy to install and is available in two different performance variants. Data can be output via serial RS-232/RS-422/RS-485 or via CAN.
Specifications:
| M2300-A (INS & GNSS) |
M2300-B (MRU) |
|
| Dimensions: | 108 x 78 x 51 mm | 70.5 x 60.5 x 33 mm |
| Weight: | 460g | 150g |
| Power: | ≤8W | ≤3W |
| Angular Velocity Range: | ±400o/s | |
| Acceleration Range: | ±8g | |
| North-Seeking Accuracy: (RMS, 1σ) |
≤3o sec ϕ (pure inertial 1h) | N/A |
| Heading Accuracy: (RMS, 1σ) |
≤3o (pure inertial) ≤0.1o (GNSS + INS, 2m baseline) ≤0.05o (GNSS + INS, 4m baseline) |
N/A |
| Attitude Accuracy: (RMS, 1σ) |
≤0.02o static ≤0.03o dynamic |
≤0.02o static ≤0.05o dynamic |
| Heave Accuracy: (RMS) |
≤5cm or 5% (take larger value) | |
| Data Output Frequency: | 0 – 200 Hz configurable | |
