Bayonet 150

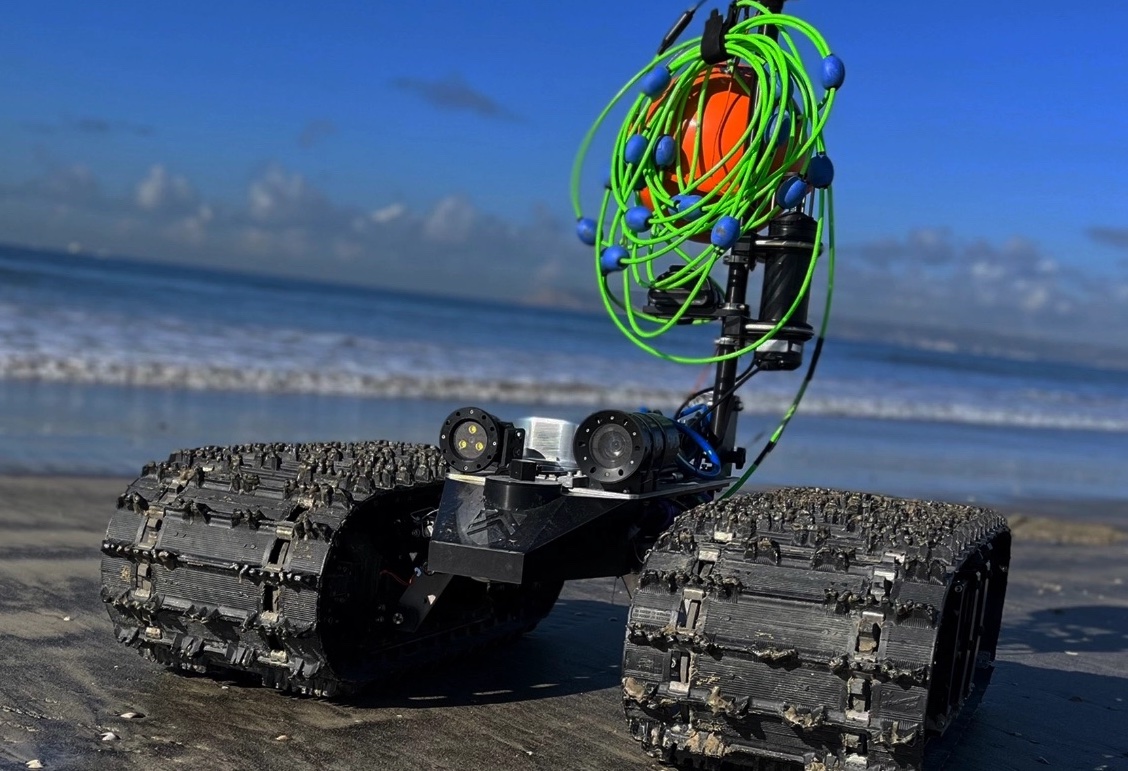

The Bayonet 150 is a rugged amphibious robotic crawler designed to undertake challenging operations on land, in the surf zone, and in underwater and seafloor environments. With a low profile and high stability, the vehicle is capable of withstanding waves of up to six feet and collecting data under harsh sea state and weather conditions. Thanks to its low power consumption, the system can remain in place as a long-term station-keeping capability for up to 100 days.

Designed to be two-person-portable and one-person operable, it can be programmed for fully autonomous operation or controlled via tether or RF link buoy. A fusion of single or dual RTK-capable GNSS receivers with advanced inertial navigation provides precise navigation even when submerged, and the built-in inclinometer and pressure sensor deliver high-accuracy depth measurements.

The Bayonet 150 can be equipped with a variety of payloads, and Greensea IQ can integrate custom sensors and equipment. The versatile vehicle is ideal for a wide range of applications including environmental monitoring, beach and coastal survey, offshore and energy facilities inspection, and EOD.

Dimensions: 33 x 20 x 10 inches
Standard Open Deck Space: 24 x 6 inches
Weight (With Batteries): 125 lbs
Range (dry/wet): 22 miles / 10 miles
Deck Capacity: 150 lbs (68kg)
Ground Pressure (dry/wet) 0.15 psi / 0.08 psi
Power Available: 5V (500mA), 12V (3A), 24V (3A), 48V
I/O: 2x RS232
1x RS485
2x non-isolated analog input
2x non-isolated analog output
2x isolated digital input
2x isolated digital output
4x Ethernet
