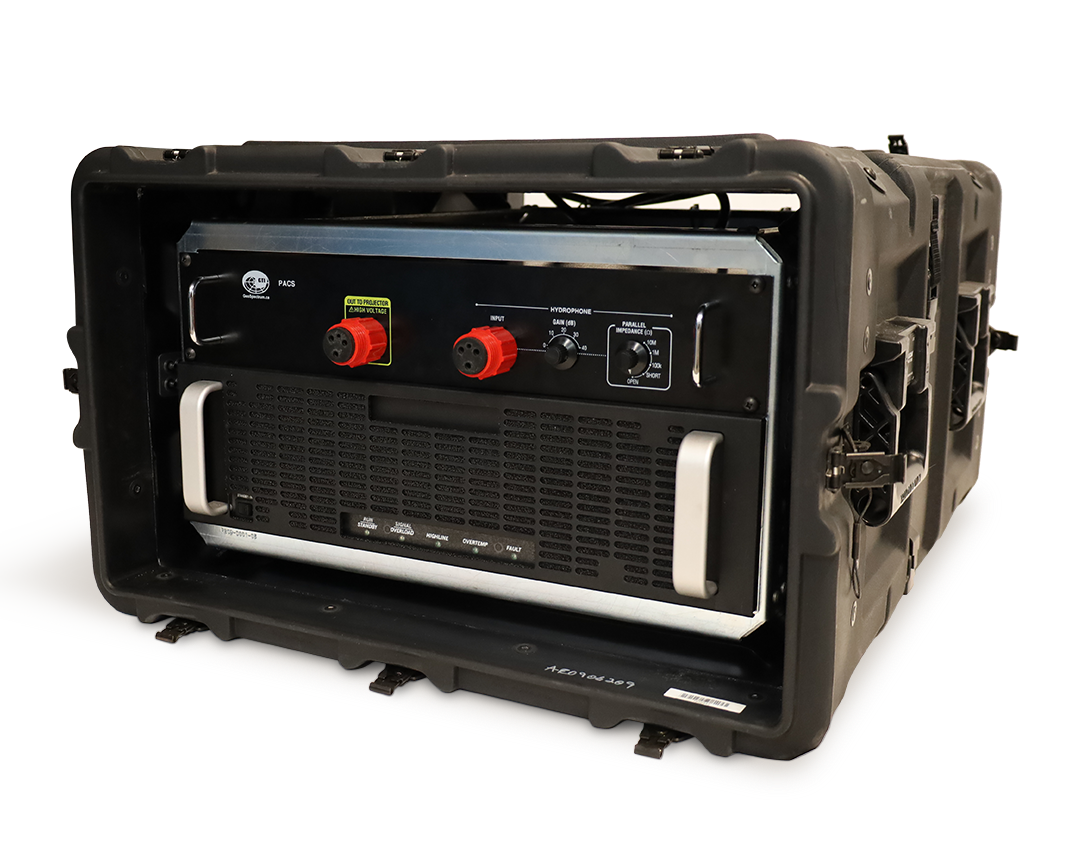

Portable Acoustic Calibration System
PACS (Portable Acoustic Calibration System) is a highly portable and easy-to-use testing system for acoustic sound sources, providing a variety of test capabilities. Thanks to its compact size, the convenient system can be deployed from vessels of opportunity, or utilized in in-house laboratory test tank setups.
System capabilities include:
- Transmitting Voltage Response (TVR) of sound sources
- Transmitting Current Response (TIR) of sound sources
- Receive sensitivity of hydrophones
- Source level measurements
- Complex impedance/admittance curves
Specifications:
| Dimensions: | 76 x 59 x 36 cm |
| Weight: | 56 kg |
| Frequency Range: | 5 Hz – 200 kHz |
| Max Drive Voltage: | 250V rms (higher available with step-up transformer) |
| Max Drive Current: | 60A rms |
| Max Drive Power: | 4 kW |
| DAQ: | 16-bit, 2MHz simultaneous sample rate |
