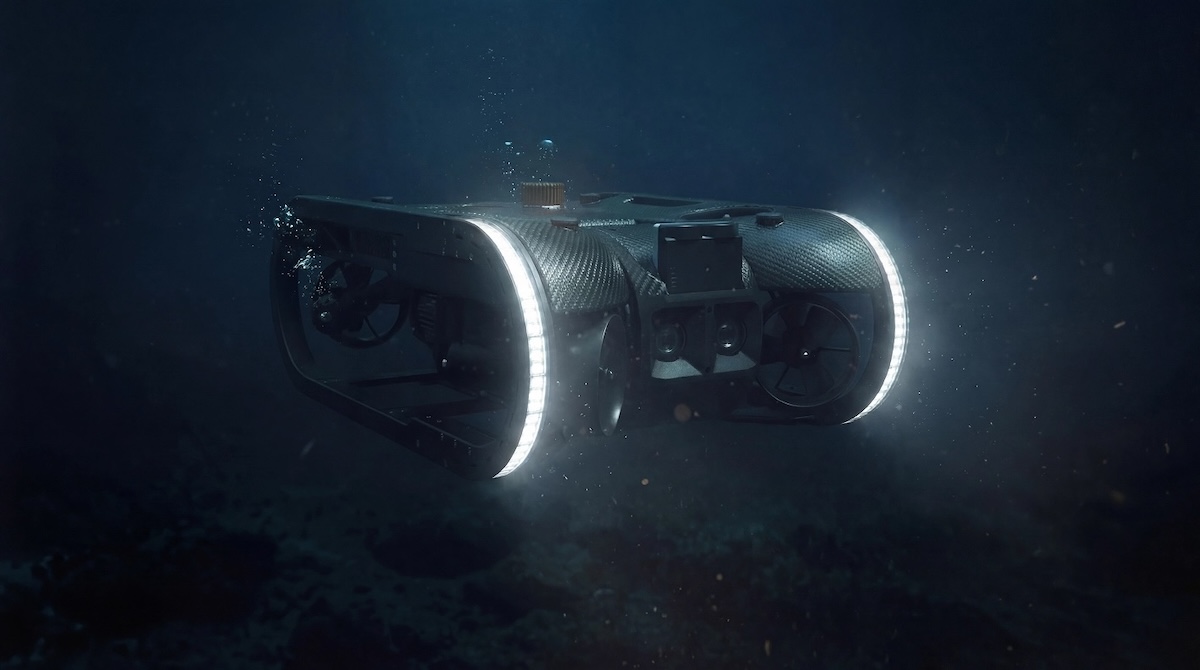

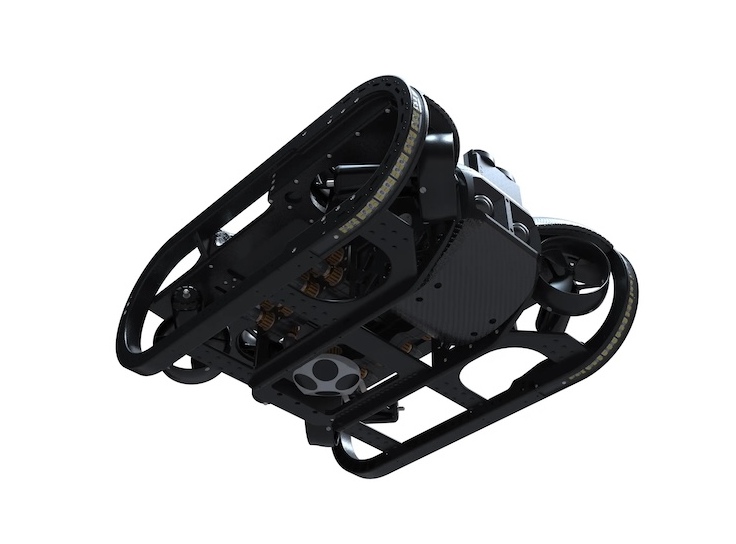

SPECTRA ROV is a remotely operated vehicle developed for offshore Inspection, Repair, and Maintenance (IRM) scopes of work, supporting subsea operations at depths down to 1,000 meters. The system maintains stable performance in currents up to 4 knots and is designed for rapid mobilization and modular servicing to support high-uptime deployment. Its configuration is suited to offshore asset inspection and survey activities across marine infrastructure environments.
The platform integrates real-time 3D sonar SLAM with photogrammetry to enable 3D mapping, asset visualization, defect measurement, and change detection in low-visibility or GNSS-denied conditions. Dual 4K stereo cameras and high-output lighting support detailed visual data capture, while integrated sonar systems provide situational awareness and mapping capability. These features enable repeatable survey workflows and consistent data collection for subsea inspection deliverables.
Specifications:
| Dimensions (L x W x H): | 790 x 586 x 296 mm (31.1 x 23.1 x 11.7 in) |
| Weight (in air): | 38 kg (84 lbs) |
| Depth rating: | 1,000 m (3,280 ft) |
| Operating temperature: | -10°C to 40°C (14°F to 104°F) |

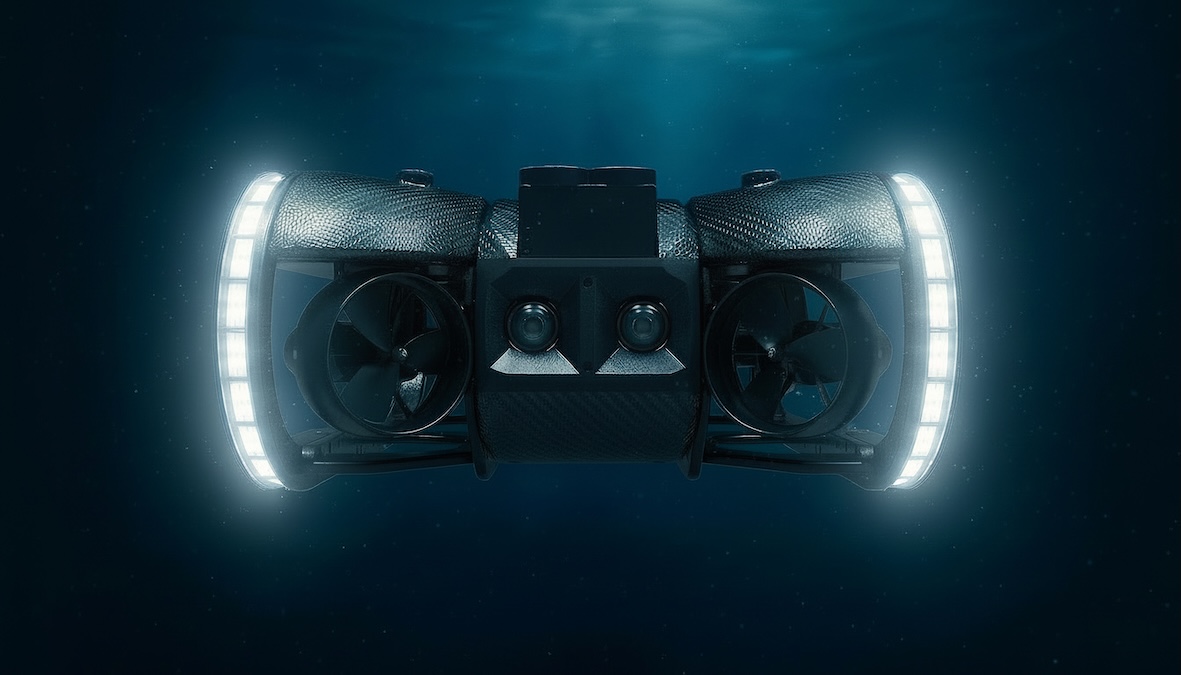

| Camera system: | Dual 4K video with 12 MP imaging |
| Lighting: | Dual LED light frame, 300,000 lumens total |
