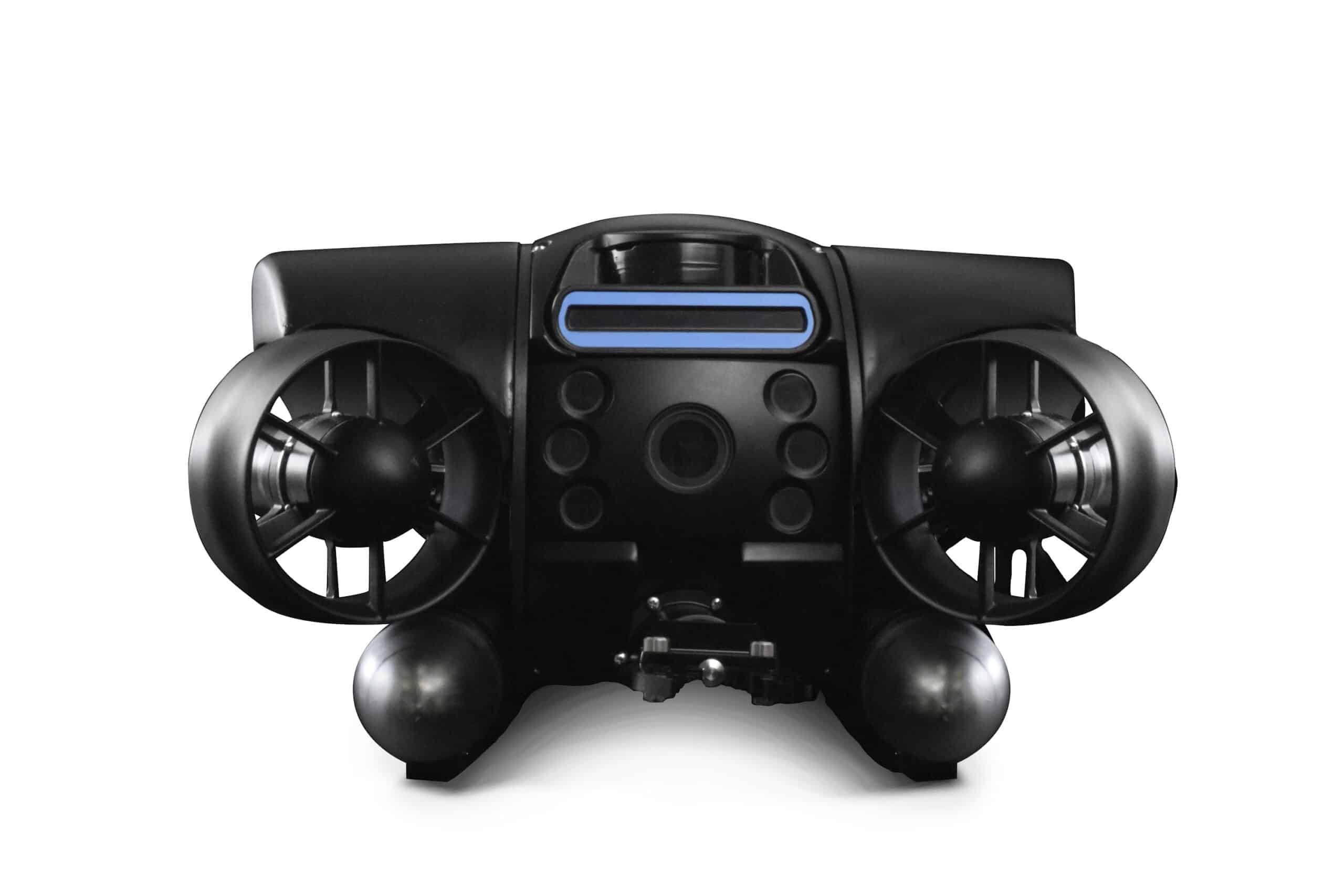

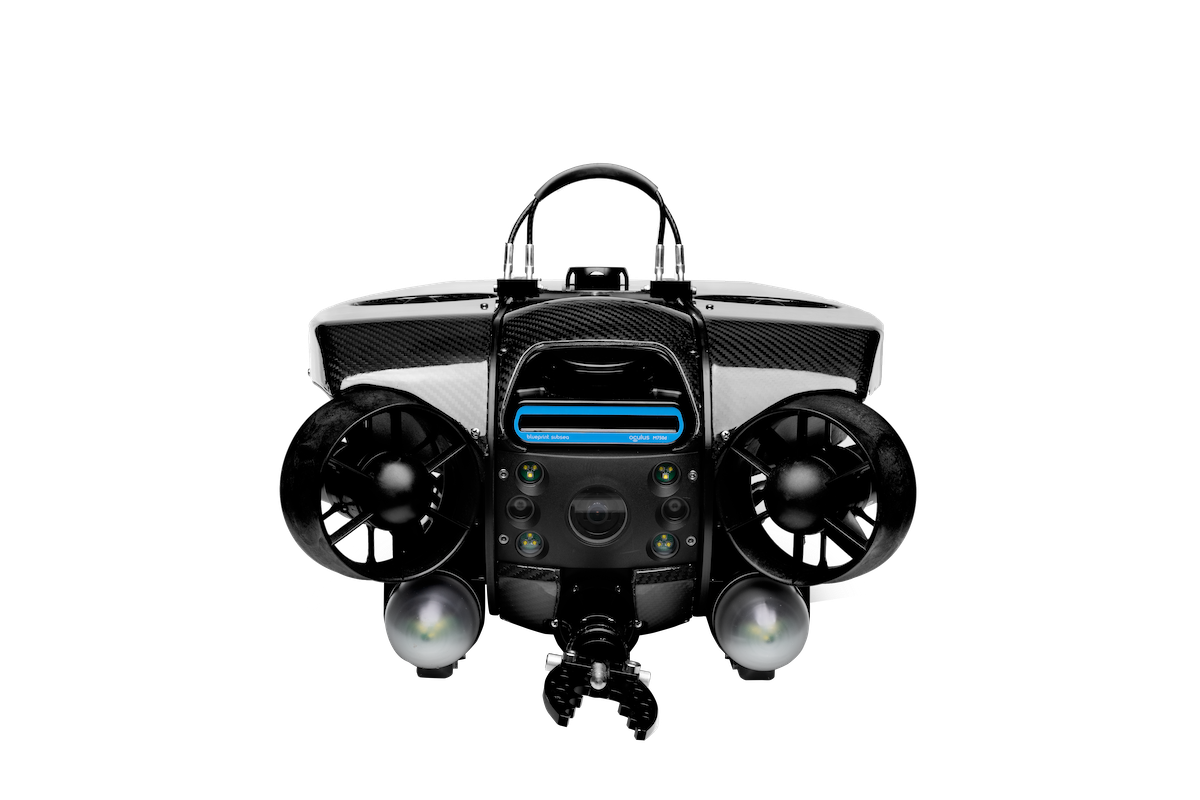

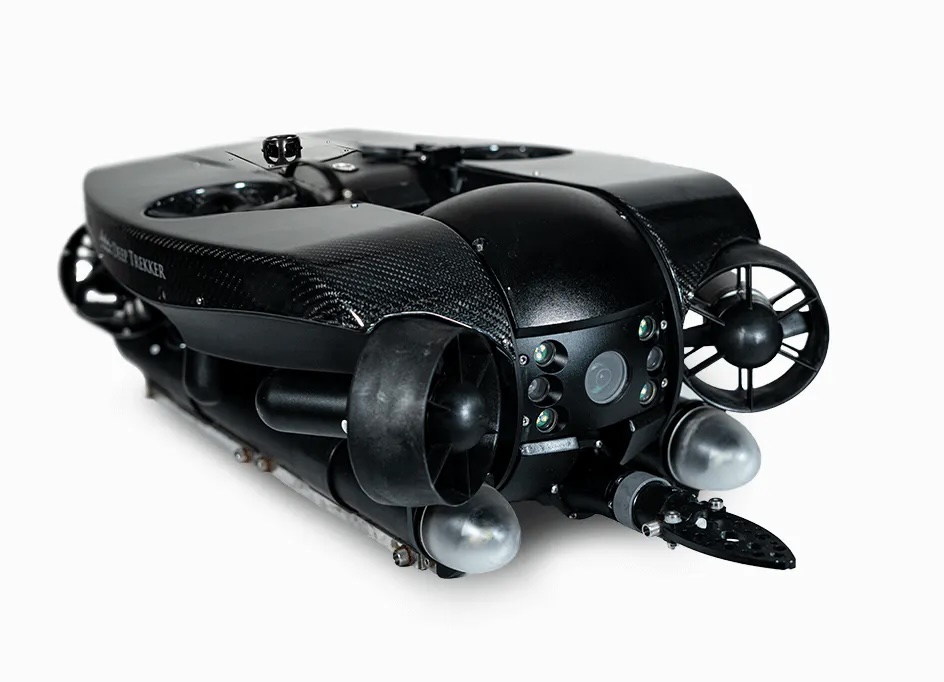

The REVOLUTION is a highly maneuverable and versatile ROV designed to undertake complex underwater missions, featuring a rugged carbon fiber shell and easily interchangeable lithium-ion batteries. It is equipped with six highly stable thrusters that can undertake vertical movements, depth holding, and lateral movements, ensuring excellent stability in heavy currents and allowing the vehicle to undertake fine adjustments during inspections.
The ROV is equipped with a 260-degree revolving camera head that allows a high-definition video feed to be viewed from the controller, as well as LED floodlights and a laser scaler. The vehicle also includes a two-function grabber with easily interchangeable claws, and can be optionally equipped with sonar for imaging even in murky water and poor visibility.
The REVOLUTION ROV is available in two different packages:

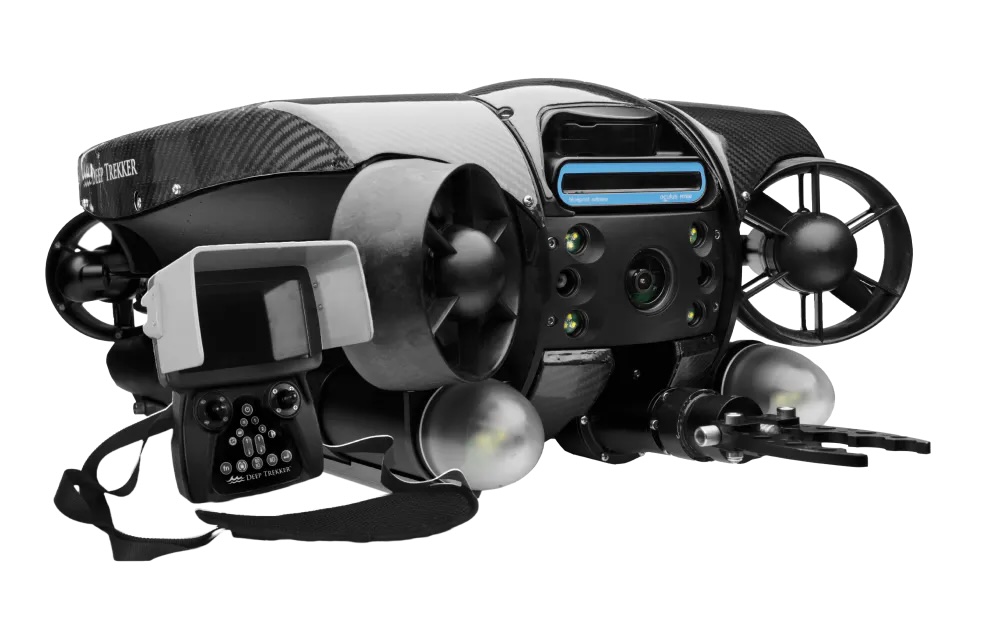

REVOLUTION BASE - includes the BRIDGE integrated controller, SD card, rotating camera head, grabber, LED floodlights, 10cm laser scaler, and a spare set of batteries for extended missions or a direct power option. The included 300m tether reel can be upgraded to 500m.
REVOLUTION NAV - adds advanced piloting features that allow you to plan missions and deploy pre-programmed routes, as well as USBL and DVL sensors that enable auto-depth and produce location data. The NAV package also includes a service kit and an extended two-year warranty.
| Dimensions (LxWxH) | 717x440x235 mm (28.2x17.3x9.3“) |
| Weight (in air) | 26 kg (57.3 lb) |
| Depth Rating | 305 m (1000 ft) |
| Operating Temperatures | -10°C to 50°C (14°F – 122°F) |
| Camera Specs | 4K30, 1080p30 30FPS 0.001 Lux |
| Lights | High-efficiency LED, fully dimmable 1000 lumens tracking with camera Optional 1000-4400 lumens add-ons |
