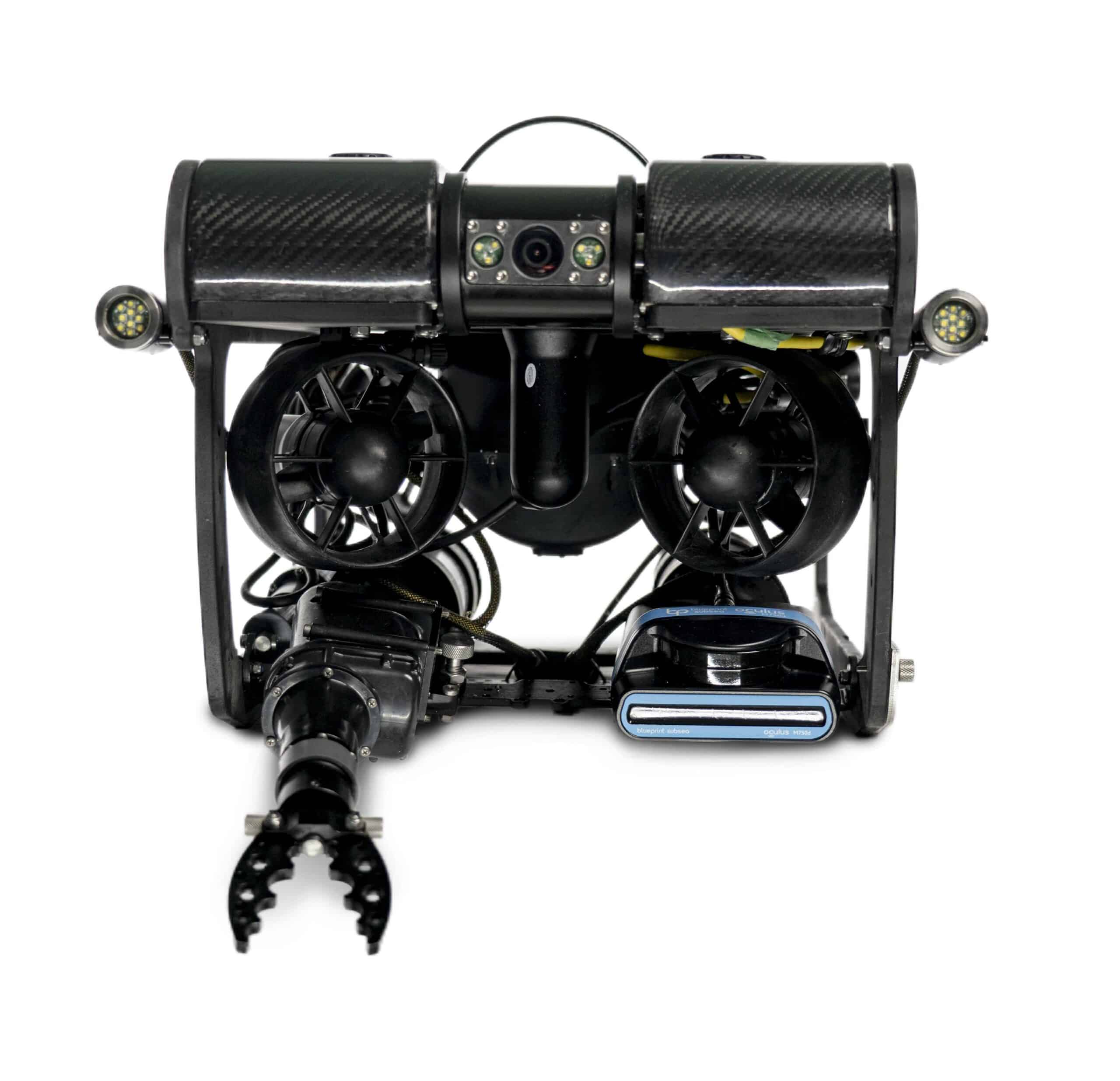

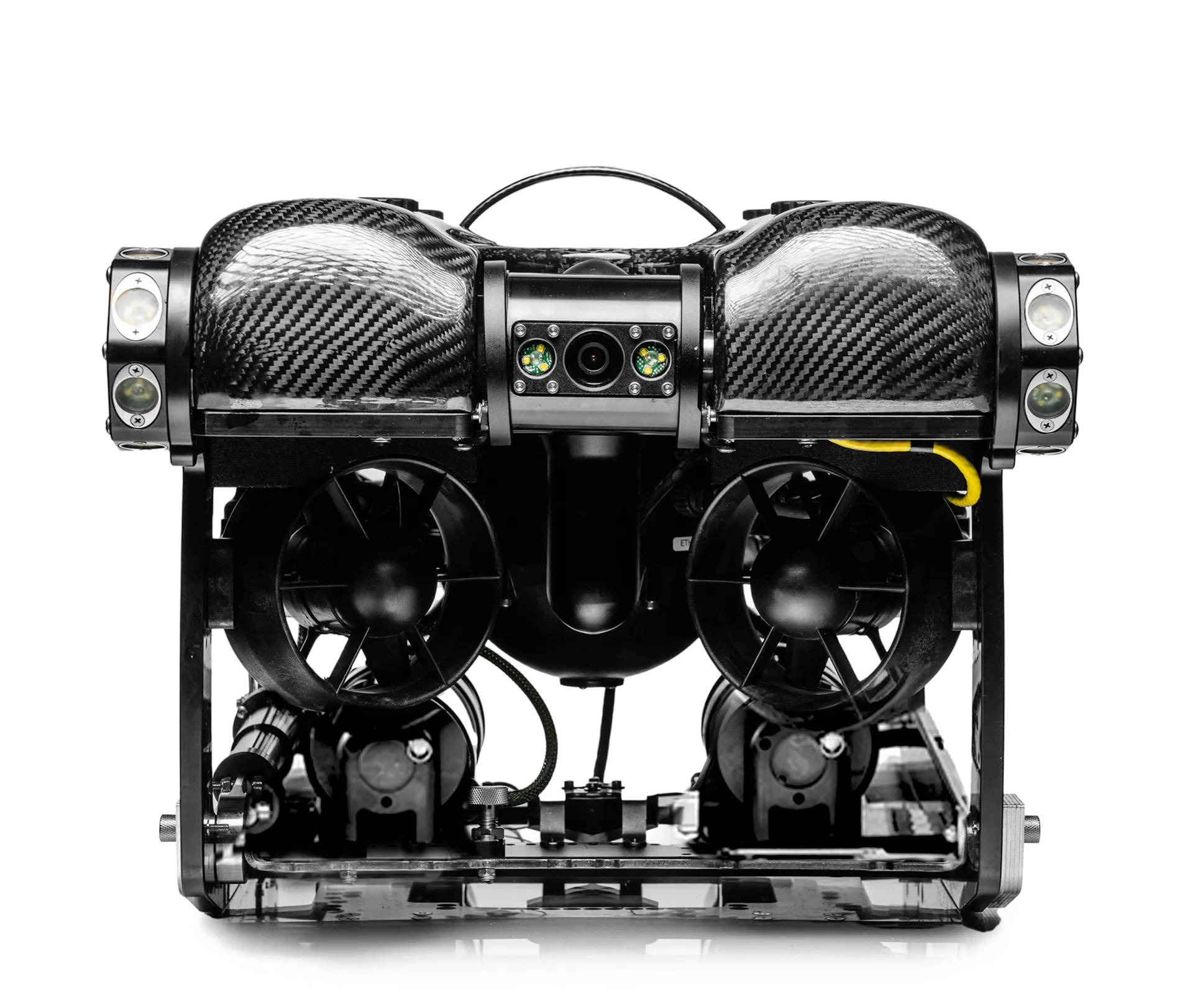

The PIVOT ROV is designed to provide an ideal balance between portability and power, weighing less than 37 lbs and featuring six thrusters for a high level of maneuverability. It is equipped with a 4K camera that can rotate up to 220 degrees, as well as an optional 97-degree rotating tool platform.
The robust vehicle is ideal for a wide range of applications, including inspection, mapping and surveying, and search and recovery. It can be equipped with sophisticated dead reckoning technology that allows operators to capture position, direction and path even in GPS and USBL-denied environments.
The PIVOT ROV is available in three different packages:
PIVOT Smart – includes a 100m tether on a reel, SD card, and one battery for immediate operation. This cost-effective package is ideal for basic visual inspections in high current.
PIVOT Expert – all components included in the Smart Package, plus a 97-degree tilting tool platform that can be equipped with a variety of add-ons, and a grabber claw. This package also includes a 150m tether and a spare battery set for extended missions.
PIVOT NAV – enables advanced navigation with USBL and DVL sensors and allows the system to generate GPX and CSV data for reports. This package provides a map of ROV positioning that allows the operator to set points of interest, and also includes a service kit, 300m tether, and an extended warranty for two years.
| Dimensions (LxWxH) | 576 x 360 x 310 mm (22.7 x 14.2 x 12.2 “) |
| Weight (in air) | 17 kg (37.5 lb) |
| Depth Rating | 305 m (1000 ft) |
| Operating Temperatures | -10°C to 50°C (14°F – 122°F) |
| Camera Specs | 4K30, 1080p30 30FPS 0.001 Lux |
| Lights | High-efficiency LED, fully dimmable 1000 lumens tracking with camera Optional 1000-4400 lumens add-ons |
