MiniPods

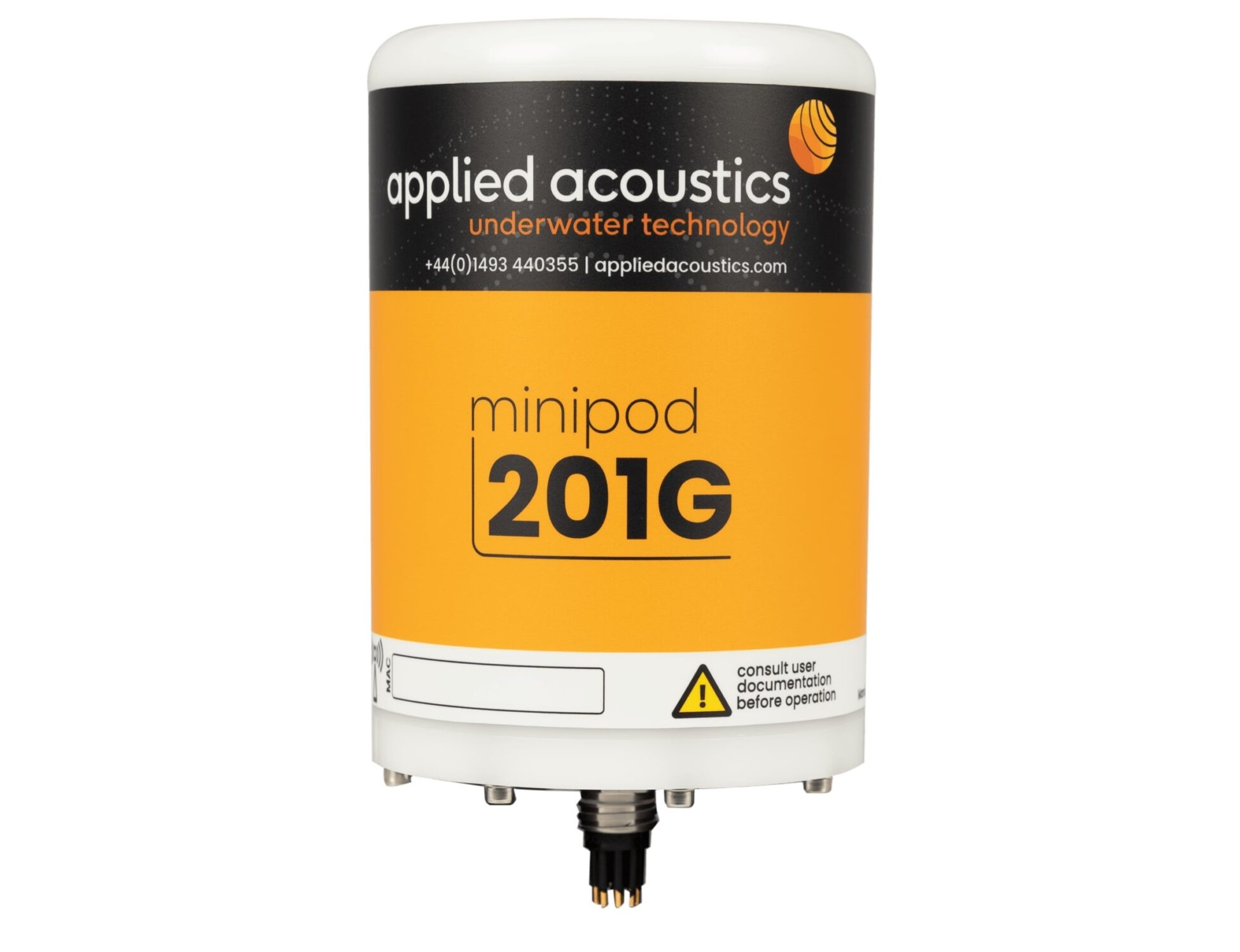

applied acoustics’ MiniPod submersible GNSS receivers provide precise positioning for vehicles and equipment once they have surfaced, with L1 and L2 signal tracking as well as options for GNSS corrections. The rugged receivers are designed to withstand the challenging conditions of the splash zone, and include internal and external shock mounts.
The receivers are ideal for a wide range of applications including remote asset monitoring and surface positioning for AUVs and ROVs, towed sensors and seismic sources. They can be equipped with wireless RF communications to transmit data back to the shore or a vessel, and the 107GS includes built-in SATCOM capabilities via the IsatData Pro service.
| 101G | 103G | 106G | 107GS | |
| Dimensions (D x L) | 115 x 170 mm | 125 x 218 mm | 119 x 289 mm | 203 x 285 mm |
| Weight (air/water) | 1.95 kg | 2.5 kg | 7 / 4 kg | 14 / 6.5 kg |
| Depth Rating | 50 m | 1000 m | 6000 m | 3000 m |
| Accuracy (dependent upon conditions) | RTK: H 8mm + 1 ppm, V 15mm + 2ppm SBAS (WAAS): H 0.3m, V 0.6m Unaided: H 1.2m, V 2.4m Atlas H10: H 0.04m Atlas H30: H 0.15m Atlas H100: H 0.50m |
Horizontal: GPS: 2.5-2.0m GLONASS: 4.0m BeiDou: 3.0m GPS + GLONASS: 2.5-2.0m GPS + BeiDou: 2.5-2.0m |
||
| Applications | Seismic streamer & source positioning Crane tip positioning Jetting & trenching Surface positioning of towed sensors |
Surface positioning of AUVs & ROVs Subsea excavation vehicles Seismic streamer & source positioning |
Deepwater to transition zone operations Sandbank UXO crawlers Surface positioning for vehicle recovery |
|
