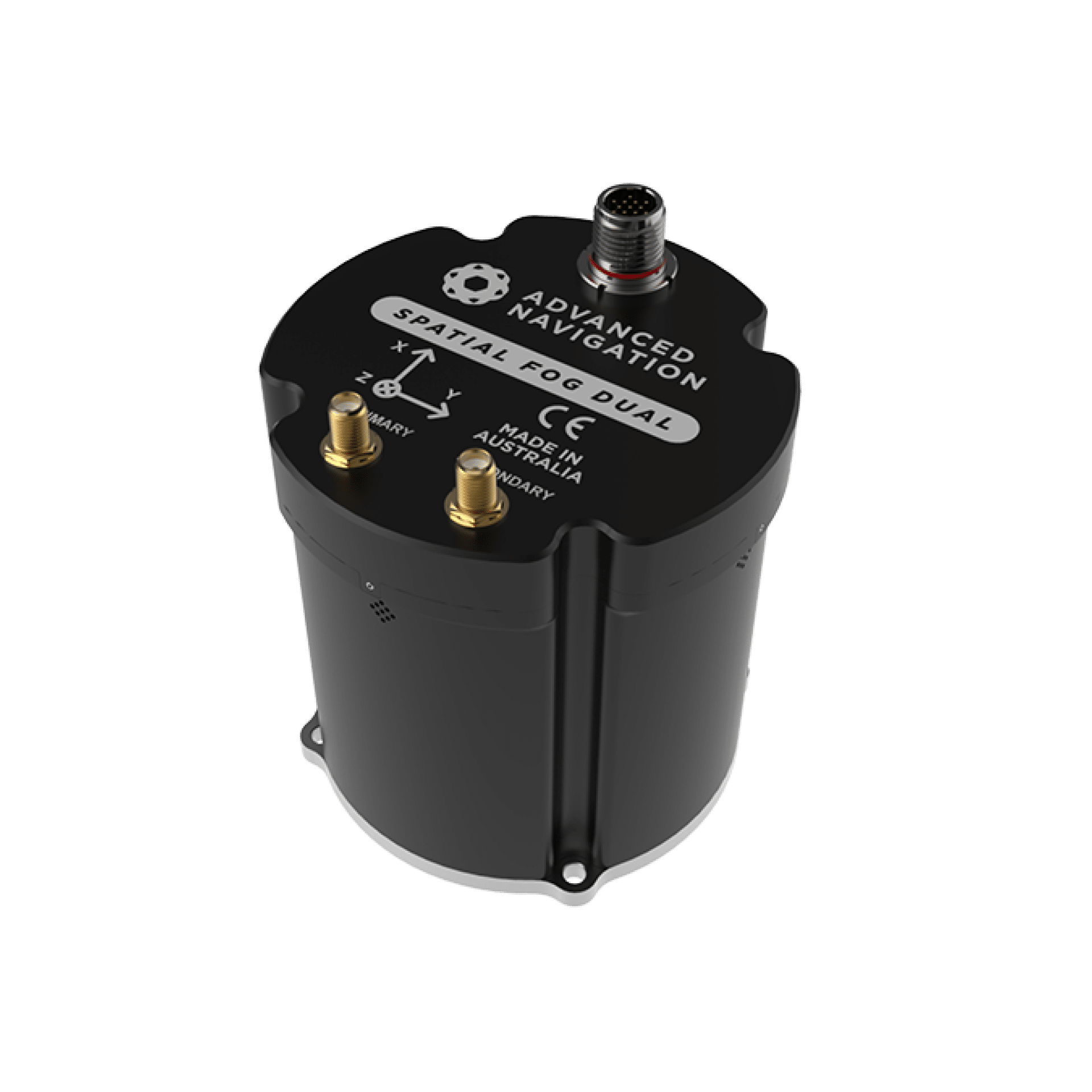

Spatial FOG Dual
The Spatial FOG Dual is a dual-antenna moving baseline RTK GNSS INS/AHRS solution. Featuring a cutting-edge fiber optic gyro IMU and a triple-frequency all-constellation Trimble RTK GNSS receiver, it provides accuracy of up to 8mm, and also supports the Omnistar service for even higher performance.
The versatile sensor is ideal for a wide range of marine and maritime applications, especially those requiring enhanced heading performance or facing high levels of magnetic interference. It can be easily interfaced to third-party peripherals such as DVLs and USBLs, NMEA sources, and more.
Specifications:
| Dimensions | 94 x 94 x 98 mm |
| Weight | 740g |
| Power Consumption | 6.1W |
| Roll & Pitch Accuracy | 0.01° |
| Heading Accuracy | 0.01° |
| Position Accuracy |
1.2m horizontal, 2.0m vertical 0.5m horizontal, 0.8m vertical (SBAS) 0.01m horizontal, 0.015m vertical (RTK/PPK) |
| Gyroscope Bias Instability | 0.1°/hr |
| Update Rate | 1000 Hz |
