XMI X

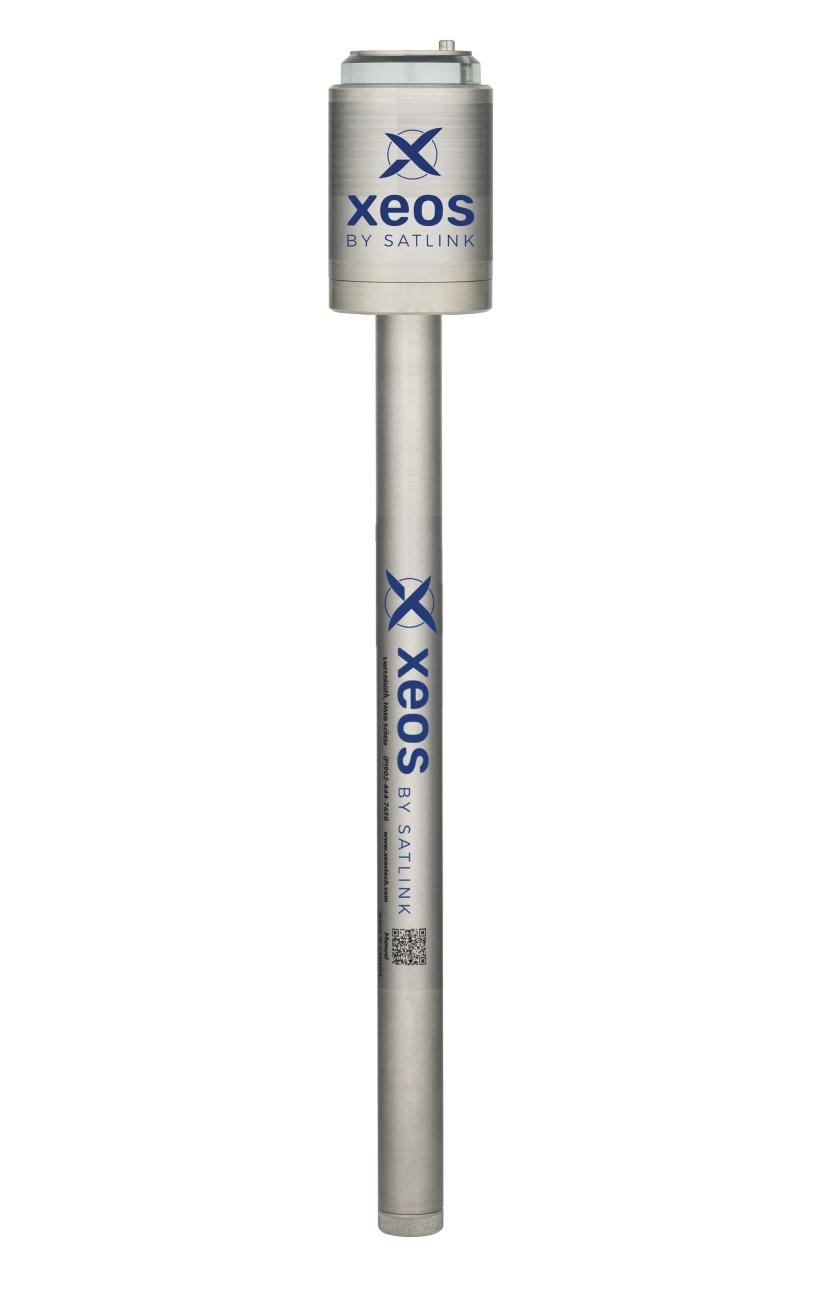

The XMI X is an independently powered submersible beacon that provides two-way communications via Iridium Short Burst Data (SBD). It enables tracking of high-value underwater assets such as AUVs, ROVs and sensor networks from anywhere in the world, utilizing a solid-state conductivity sensor to detect when the beacon breaks the surface of the water and trigger transmission of GPS position data.
The beacon is compatible with Xeos Technologies' XeosOnline monitoring software, allowing users to receive incoming messages, send remote configuration commands, and track and monitor all assets from a single intuitive interface. Local setup can be easily performed via Bluetooth.
Specifications:
| Dimensions (L x D): | Head: 8.08 x 5.08 cm (3.18 x 2.00”) Tube: 39.9 x 2.87 cm (15.72 x 1.13") |
| Weight: | 1322 g - in air 915 g - in water |
| Battery Supply: | 7 AA batteries (alkaline or lithium) |
| Depth Rating: | 11,000 m |
| Iridium TX Power: | 800 mW (avg 30 sec) |
| GNSS Power: | 204 mW (avg 30 sec) |
| Underwater Power: | 270 μW |
| Deployment Example: | 2 years subsurface 20 days at surface (GPS position & Iridium message interval 1 hr) |
