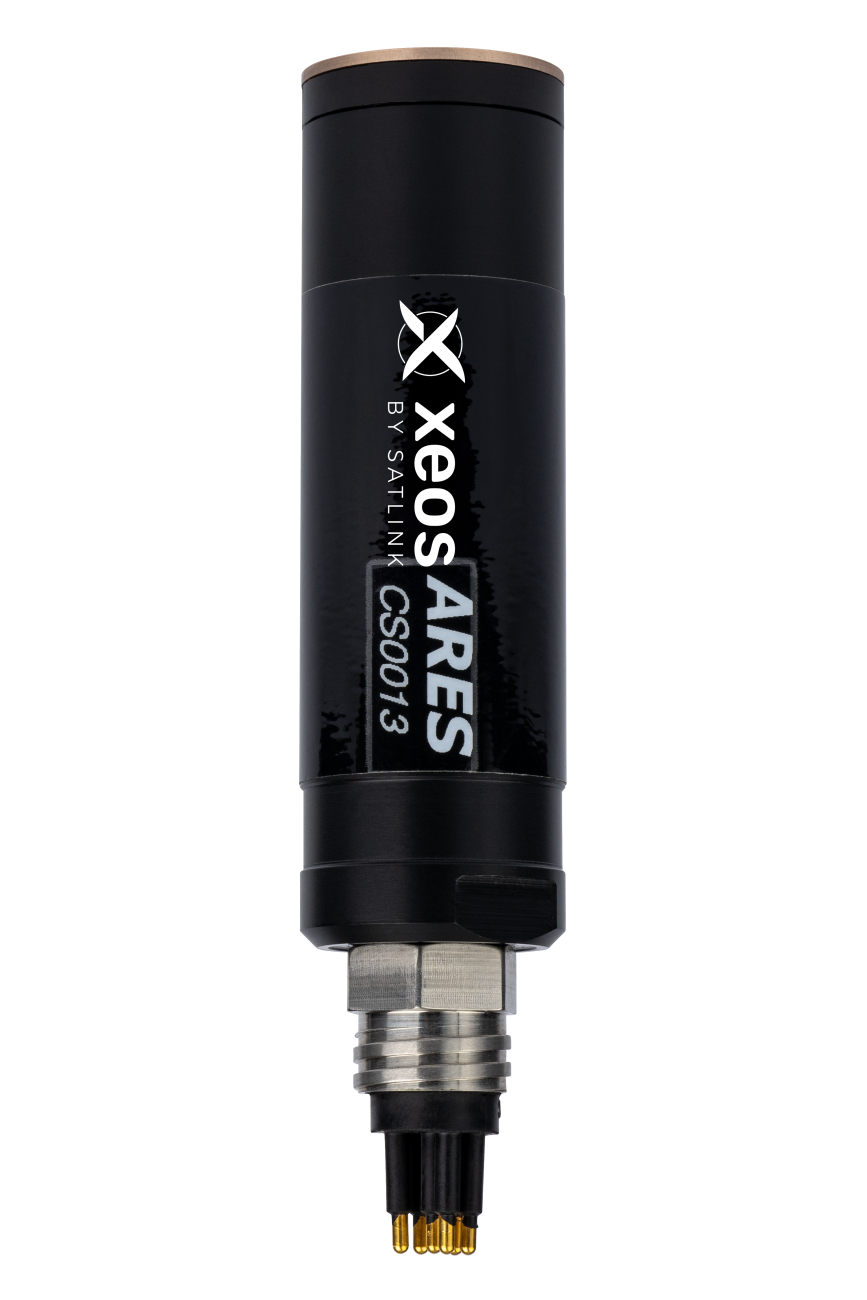

Ares Chlorophyll-a Sensor
The Ares Chlorophyll-A Sensor uses optical measurement via ultra-bright energy-efficient blue LEDs to provide indications of water quality via chlorophyll concentrations, and is ideal for environmental monitoring, oceanographic research, marine operations, and aquaculture. It offers both digital and analog outputs.
Each compact and low-power sensor is individually calibrated to laboratory standards, and is programmed with a response to red light produced via fluorescence by chlorophyll-a contained in algal cells.
Specifications:
| Dimensions (D x L): | 3.2 x 10.6 cm (1.25 x 4.17”) |
| Weight: | 135 g |
| Power Supply: | External 6 – 18 VDC |
| Current Draw (at 12V): | Analog sensor 18 mA Analog & digital sensors 20 mA |
| Depth Rating: | 500m |
| Optical: | Peak Excitation Wavelength 460 nm Excitation Bandwidth 18 nm Detection Wavelength Range 665-1000 nm |
| Resolution: | 0.1 µg/L (0-250 range) |
| Range: | Analog: Either 0-25 or 0-250 Digital: Both 0-25 and 0-250 |
