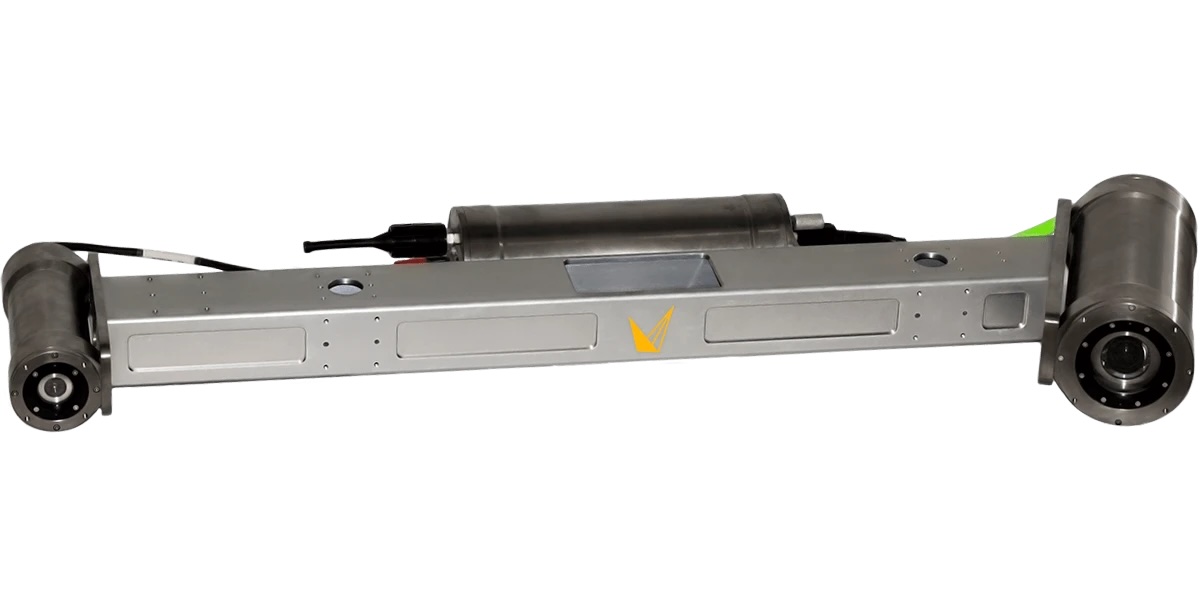

Insight Pro

The Insight Pro is a deep-sea underwater scanner designed to collect real-time high-accuracy 3D data for wide-area surveys. The unit's sensor is actively cooled to maintain a 5°C temperature, minimizing noise and enabling data collection ranges of up to 15 metres. The scanner provides 16-bit dynamic range laser data, allowing it to capture both high- and low-brightness targets.

Insight Pro can be supplied pre-calibrated with a documented accuracy specification, or calibrated on the vehicle for more complex integrations. The system has been proven on a wide variety of underwater vehicles at depths of up to 6000m, and has been used to scan more than 10,000km of subsea pipelines.

Specifications:

Scan Range 1.5 - 15m
Power Consumption 60W, 24-60 VDC Input
Points per Line 2048 data points | 50° angle of view
Profile Rate 90 Hz with Range Limiting
Depth Rating 4000m or 6000m
