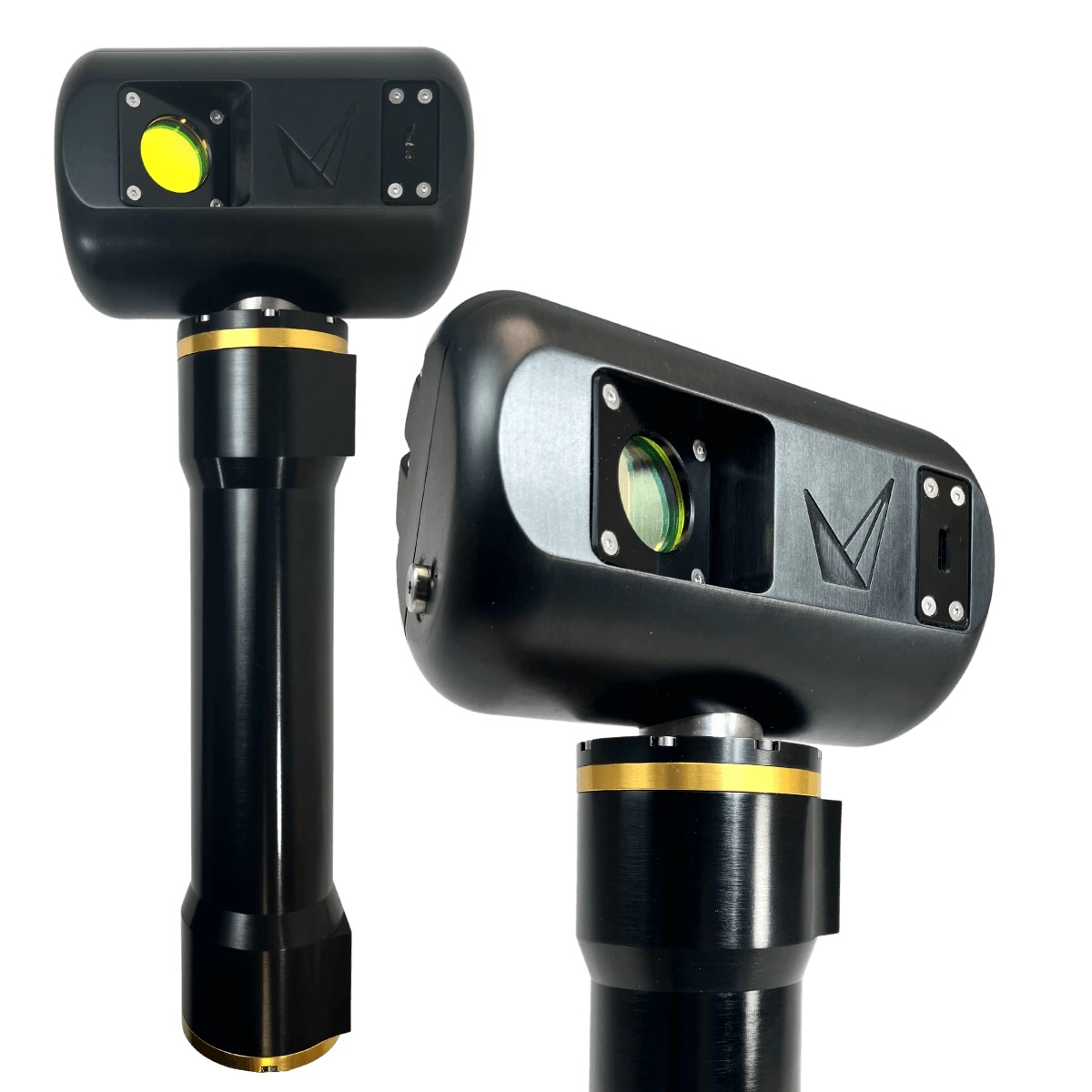

The Insight Nano is an underwater laser scanner designed to capture high-resolution 3D data in real time at short- to mid-range distances. The versatile solution provides continuous 360° scanning and streams 3D point cloud data to the control station in real-time for visualization and assessment.
With high angular resolution, Insight Nano provides sub-millimeter resolution both along and across laser profiles, resulting in ultra-precise measurements that can be used to create digital models with the utmost detail and without lengthy processing times.
The Insight Nano can be easily integrated with robotic pipe crawlers and ROV robotic arms or operated as a standalone capability, and is ideal for pipeline inspection, offshore energy applications, environmental survey, digital twin creation, and more.
Specifications:
| Scan Range |
0.13 - 1.0m 0.4 – 2.5m (Nano XR) |
| Power Consumption | 25W, 24V |
| Points per Line | 2064 data points | 50° (water) 70° (air) Angle of View |
| Profile Rate | 35 Hz (range limiting option for higher rates) |
| Depth Rating | 1000m |
