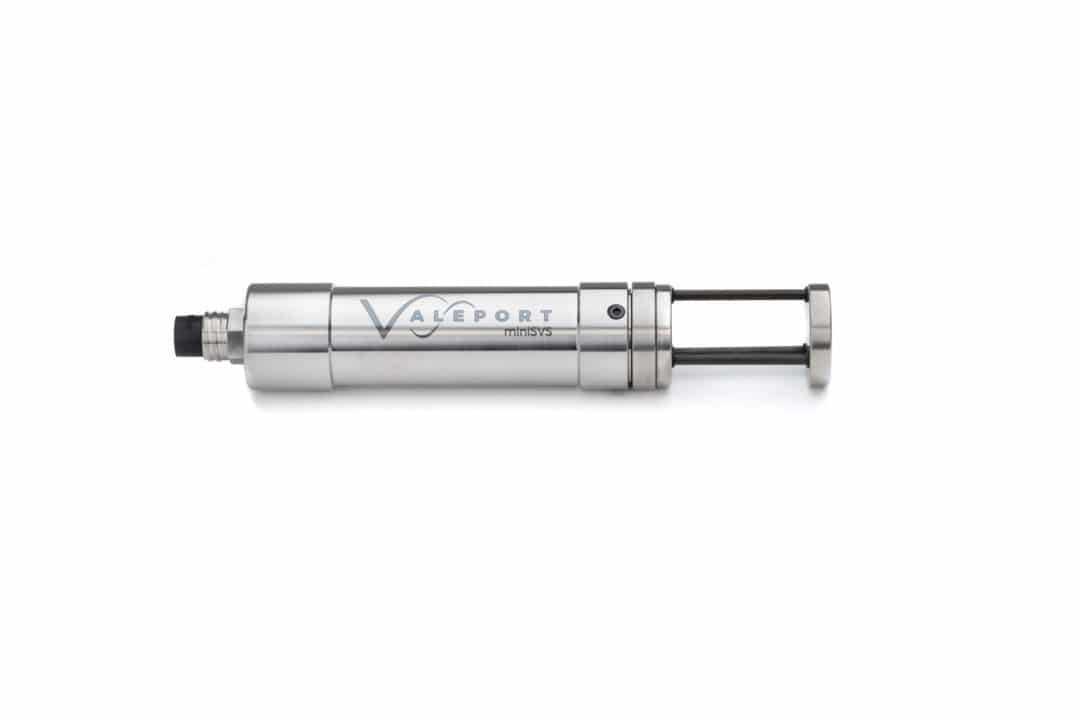

miniSVS
The miniSVS is a small form factor sound velocity sensor that uses proprietary time-of-flight technology to deliver low-noise and high-accuracy output with almost instantaneous response. A choice of data formats is provided to enable interfacing with legacy systems.
The miniSVS can be optionally equipped with either a pressure or temperature sensor. Valeport can provide the unit as an OEM configuration, and can also undertake some customization.
Specifications:
| Dimensions (D x L) | Dependent on configuration |
| Weight | 1kg (enclosed) |
| Power | 0.25 W (SV only) 0.35 W (SV + Pressure) |
| Depth Rating | 6000m |
| Sound Velocity |
Range 1375-1900 m/s Resolution 0.001 m/s Accuracy dependent on sensor size |
| Temperature |
Range -5°C – +35°C Resolution 0.001°C Accuracy ±0.01°C |
| Pressure |
Range 5, 10, 20, 30, 50, 100 or 600 Bar Resolution 0.001% FS Accuracy ±0.05% FS |
| Computed Parameters |
Salinity ±0.05 PSU Density ±0.05 kg/m³ |
