miniIPS2 Bathymetric sensor with interchangeable pressure module
miniIPS2

Bathymetric sensor with interchangeable pressure module

Visit Website Contact
Saved
Save
miniIPS2

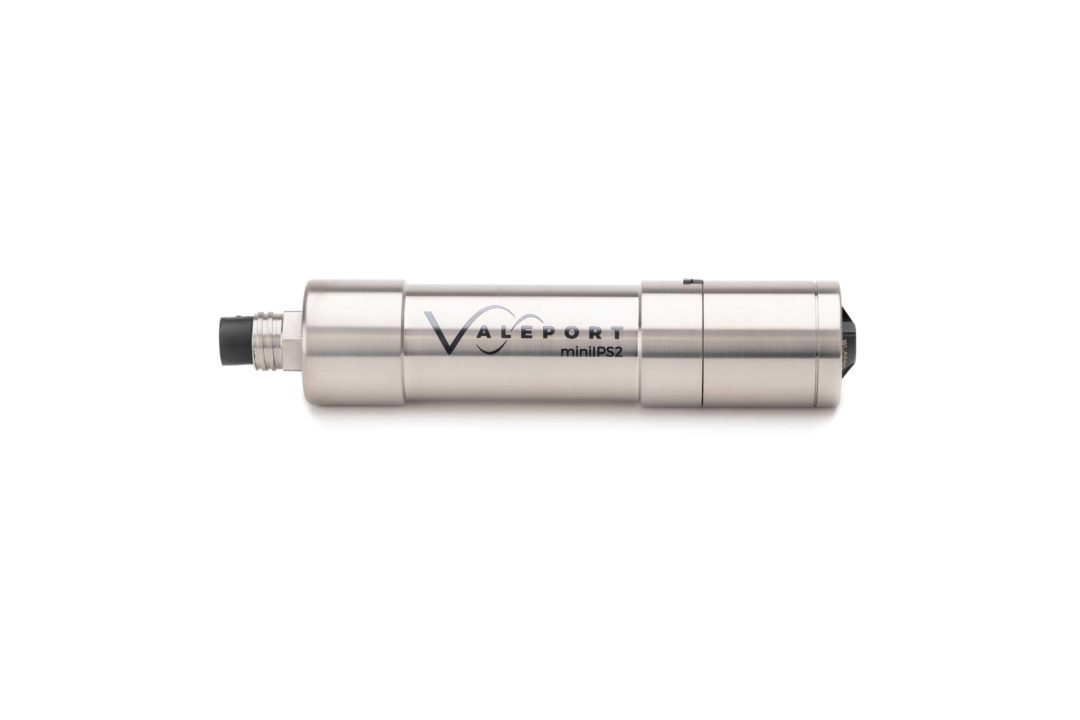

The miniIPS2 is a precision underwater pressure sensor designed to gather real-time depth information with excellent accuracy. Enclosed in a rugged 6000 metre-rated titanium housing, it can be easily integrated into a range of platforms.

The sensor can be fitted with a choice of easily-swappable transducers to suit specific depth requirements. It is compatible with Valeport’s MIDAS BathyPack and BathyLog software, allowing the depth data to be continually updated for density variations in the water column.

Specifications:

Dimensions (D x L) 40 x 190 mm
Weight 0.6kg in air
Depth Rating 6000m
Power Consumption <0.4W (40 mA @ 12VDC)
Pressure Sensor Range 10, 20, 30, 50, 100, 200, 300, 400 or 600 Bar
Accuracy ±0.01% FS
Resolution 0.001% FS
Data Rate 1, 2, 4, 8, 16, 32, 64 or 100Hz continuous, down to 1 sample per day bursting
Baud Rate 4800 - 115200
