Teledyne ODI Optical/Hybrid Submersible Connectors provide reliable fiber optic and electro-optical connectivity for demanding underwater applications. Designed for subsea systems requiring dependable transmission of data and power, these connectors support applications including subsea control modules, data transmission systems, umbilical terminations, and electrical/optical junction boxes. Available in ROV Mate, Stab Mate, and Manual Mate configurations, the product range includes wet mate connectors and termination solutions engineered for operation in high-pressure underwater environments.
The Optical/Hybrid Submersible Connectors range includes:
- 153 Series Fiber Optic Connectors – Fiber optic connectors designed for hostile environments, including miniature single-mode configurations.
- Hybrid FACT Cable Termination – Electro-optical subsea cable termination solution.
- Optical FACT Cable Termination – Optical cable termination assembly designed for deepwater applications.
- Gross Alignment Funnel / Enhanced Latch Indicator (GAF/ELI) – System designed to improve mating efficiency of ROV wet-mateable connectors.

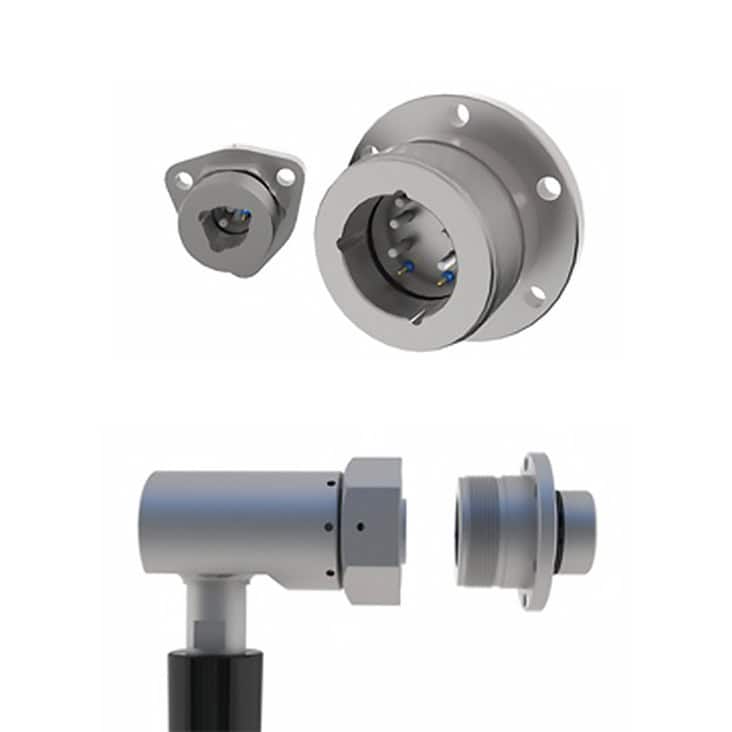

- Hybrid Dry Mate Connector – Connector designed to complement ODI wet-mate connector systems.
- Nautilus Rolling Seal Hybrid (NRH) Connector – Hybrid wet mate connector featuring electrical circuits rated to 30 amps each and multiple optical channels.
- Rolling Seal 4 (RS4) Optical Connector – Wet-mate optical connector with up to four circuits.

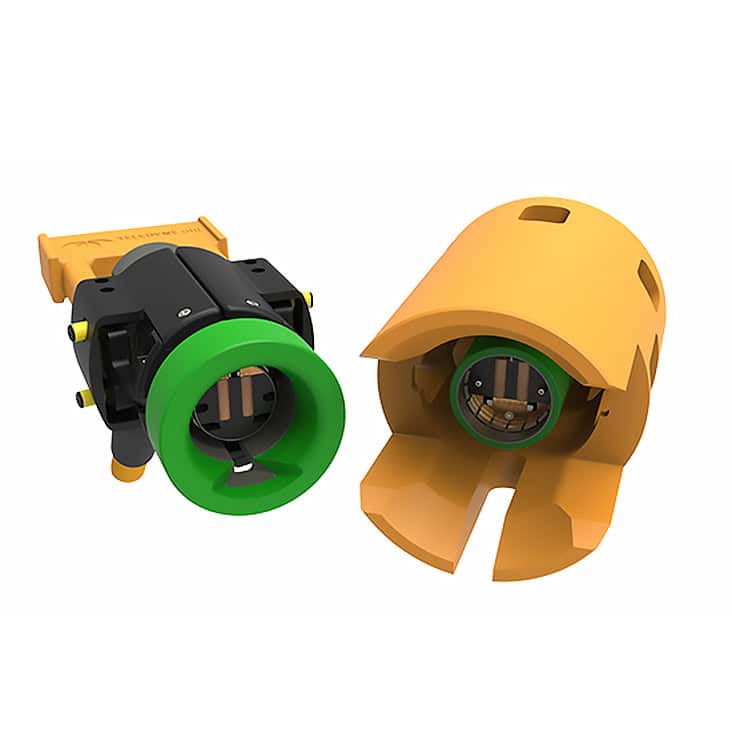

- Rolling Seal 8 (RS8) Optical Connector – Wet-mate optical connector supporting up to eight circuits.
- Rolling Seal 8 (RS8) Optical Connector – APC – Angled Physical Contact (APC) optical connector designed to reduce signal interference.

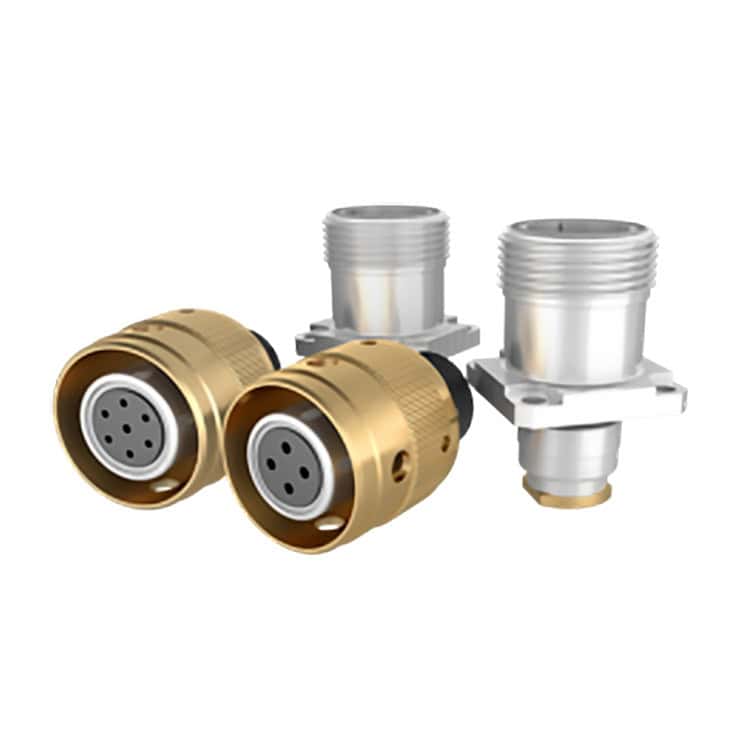

- Omega Fiber Optic Connector – Electro-optical connector supporting combinations of optical and electrical contacts.
- Omicron Fiber Optic Connector – Compact fiber optic subsea connector designed for a range of submersible applications.
- Optical 12,000 Meter Connector – Deepwater optical connector utilizing proven ferrule technology for extreme depth applications.
Teledyne ODI optical and hybrid connector solutions are engineered with features including differential pressure capability, pressure-balanced designs, low insertion loss, optional low return loss performance, and UPC or APC contact options. Qualified for ambient pressures up to 10,000 psi, these systems provide robust connectivity for marine platforms operating in challenging subsea environments.
