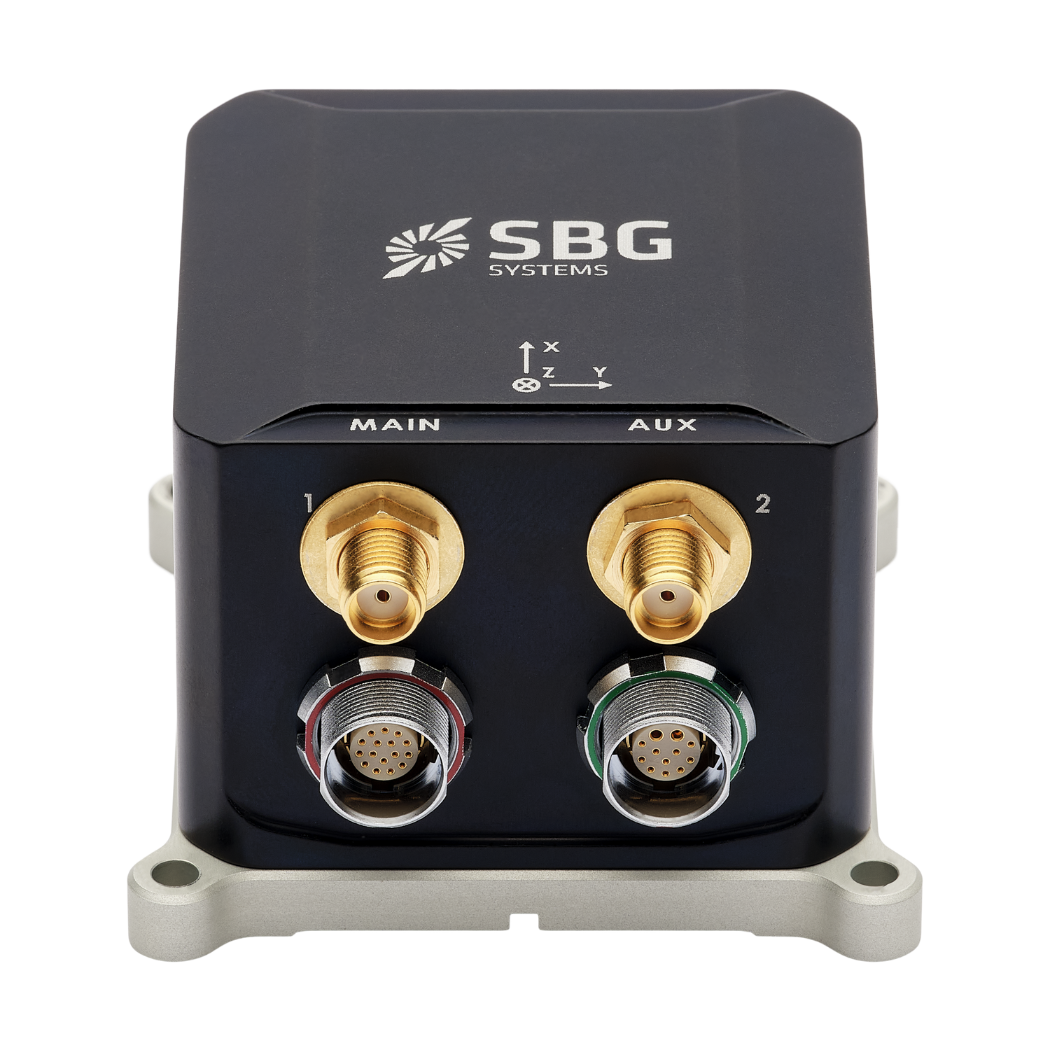

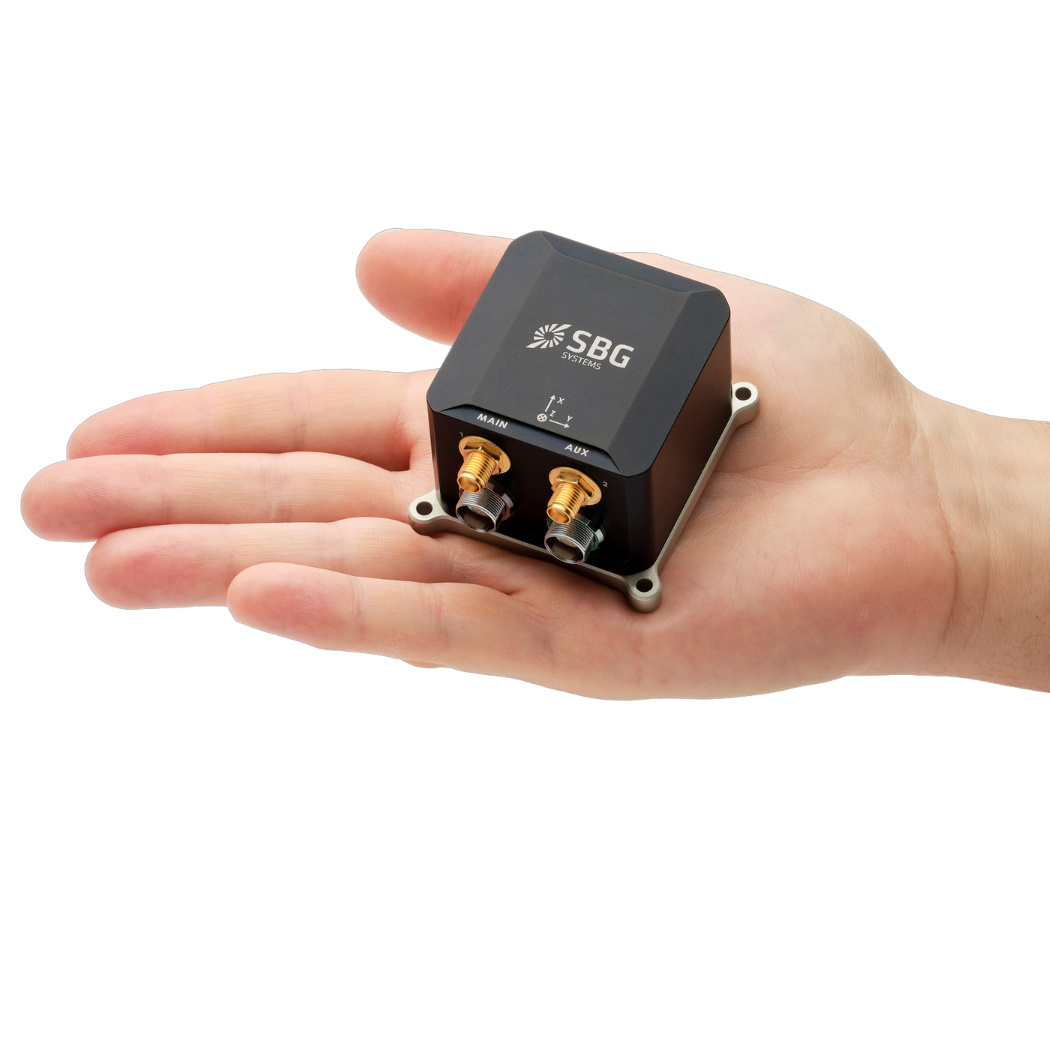

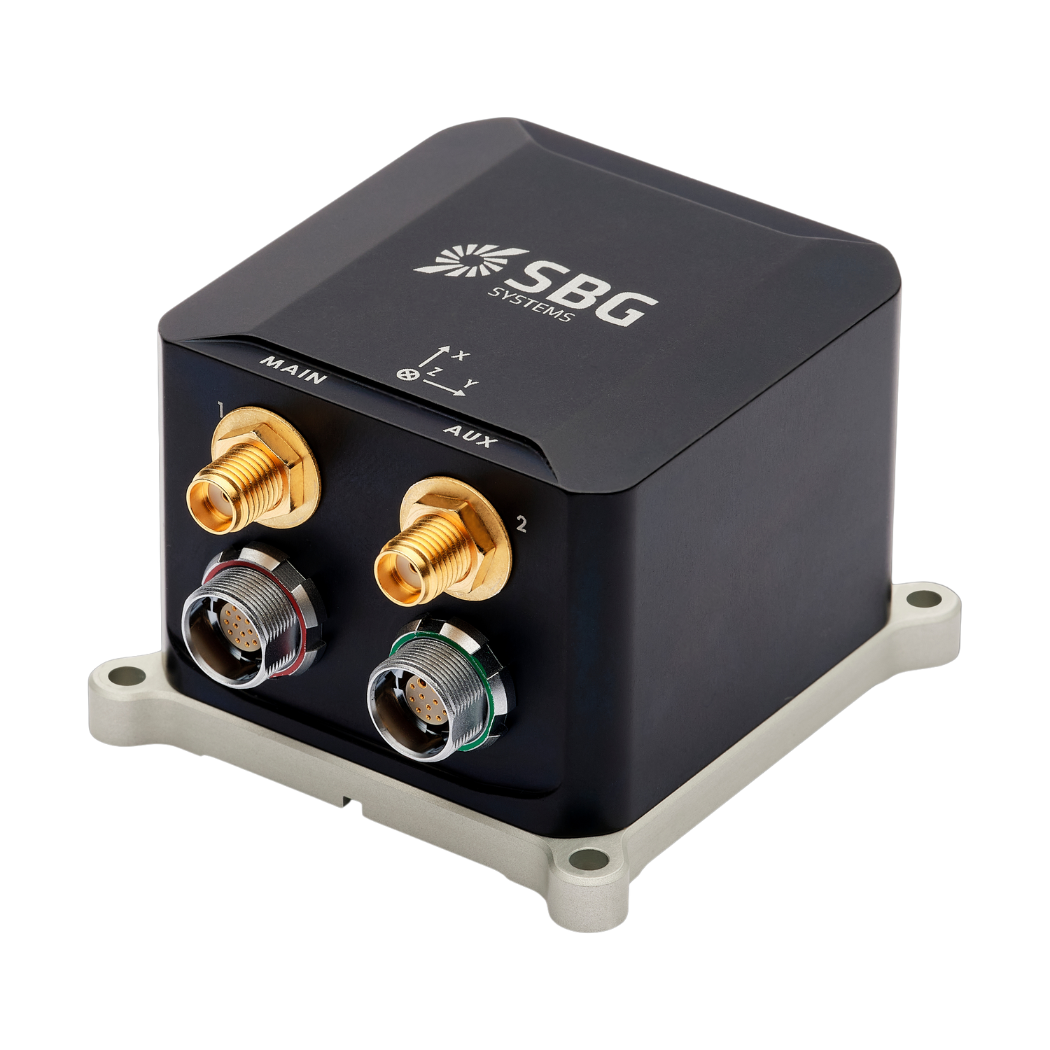

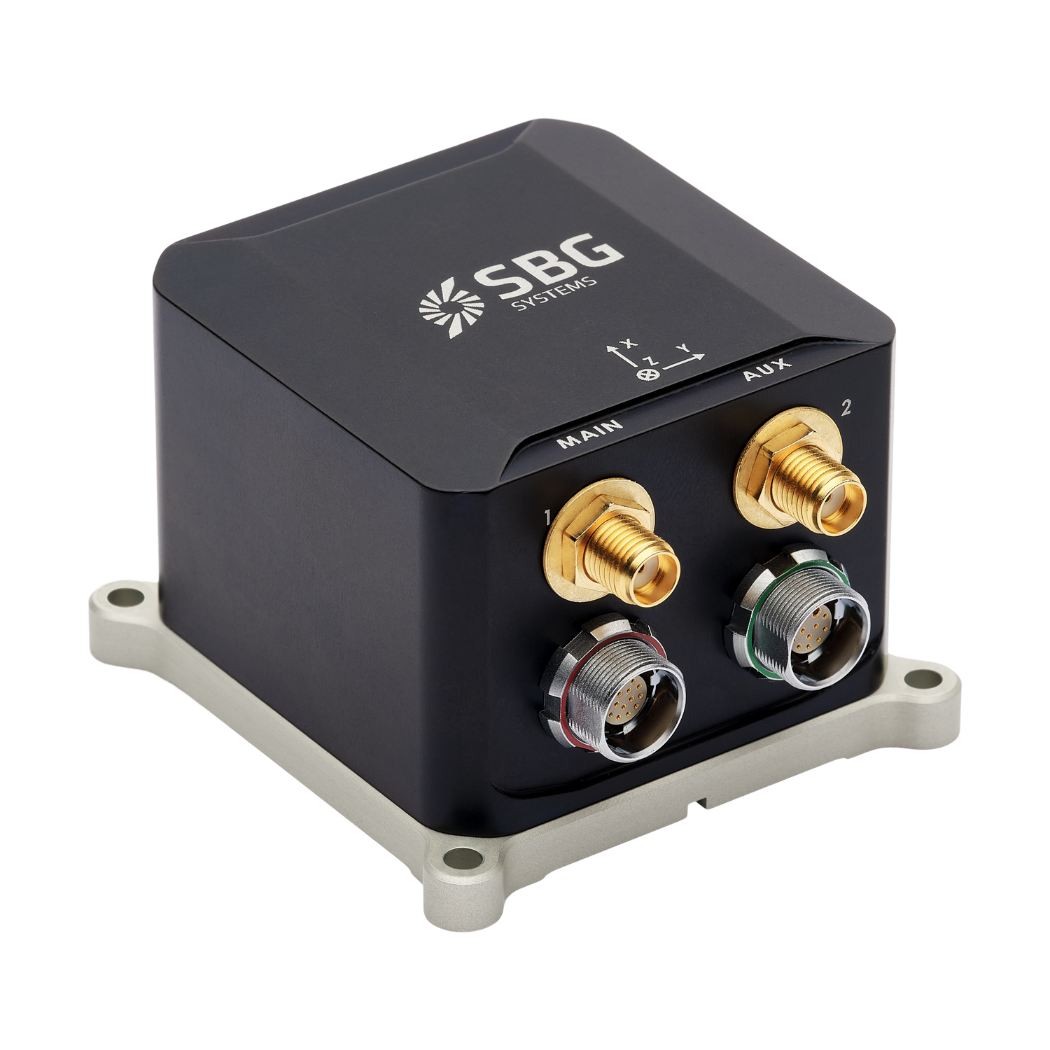

The Ekinox Micro is a powerful, compact GNSS-aided inertial navigation system (INS) designed for high-precision marine applications requiring exceptional resilience in harsh environments. Featuring a tactical-grade MEMS IMU and a multi-frequency, quad-constellation, dual-antenna GNSS receiver, it delivers centimeter-level positioning, ultra-low-noise orientation, and robust heading performance even in GNSS-denied conditions.
Fully qualified to MIL-STD-461, MIL-STD-1275, and MIL-STD-810 standards, Ekinox Micro thrives in high-vibration, extreme temperature, and mission-critical marine environments, making it ideal for USVs, instrumented buoys, battlefield management, and marine robotics.
With seamless Qinertia post-processing integration, an 8 GB internal data logger, and plug-and-play Ethernet connectivity (including PTP, NTP, REST API), Ekinox Micro offers easy configuration and integration for precision navigation tasks. Its pre-configured motion profiles ensure optimal performance across air, land, and marine operations, while its ITAR-free design ensures unrestricted global deployment — delivering accuracy and operational continuity wherever precise navigation is non-negotiable.
Specifications:
| RTK Horizontal Position: | 0.01 m + 0.5 ppm |
| RTK Roll/Pitch Accuracy: | 0.015° |
| RTK Heading Accuracy: | 0.05° |
| GNSS Receiver: | Internal dual-antenna |
| GNSS Constellations: | GPS, GLONASS, GALILEO, BeiDou, QZSS, SBAS |
| Motion Sensors: | 3 MEMS accelerometers, 3 MEMS gyroscopes |
| Motion Profiles: | 18 (Air, Land, Marine) |
| Data Logging: | 8 GB (up to 48 hours) |
| Ethernet Interfaces: | Full duplex (10/100 base-T), PTP, NTP, REST API |
| Compliance: | MIL-STD-461, MIL-STD-1275, MIL-STD-810 |
| Weight: | 165 g |
| Dimensions (L×W×H): | 42 × 57 × 60 mm |
