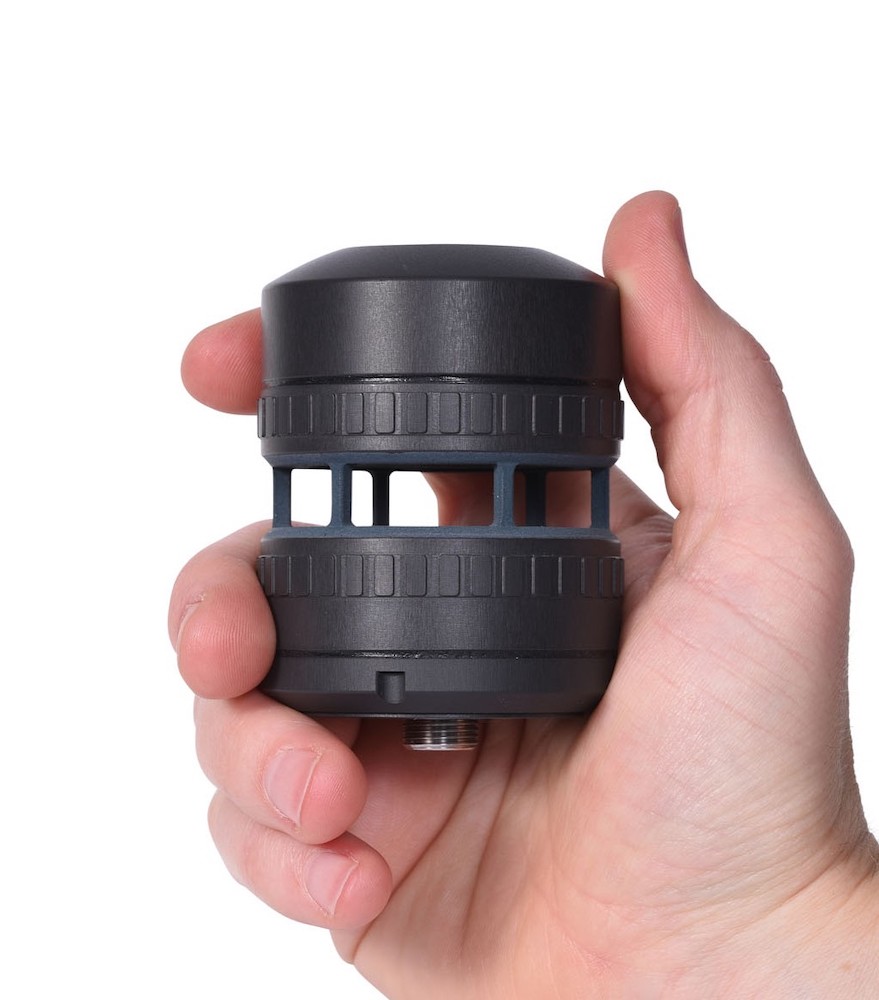

The FT743-SM is an advanced wind sensor designed to withstand the harshest of offshore and sea-going environments. Measuring wind speeds up to 75 m/s with 360° direction measurement, it is constructed from lightweight corrosion-resistant anodized aluminum and features a powerful thermostatically-controlled full-body heating system that ensures reliable and maintenance-free operation in icy conditions.
Based on FT Technologies’ proprietary Acu-Res® technology, the innovative sensor delivers an excellent signal-to-noise ratio and high levels of data availability even under challenging environmental conditions such as shock, vibration and heavy rain. It is available with digital RS-485 or analog 4-20mA interfaces.
The rugged sensor weighs just 252g, and is ideal for vessels and platforms operating in the most challenging of waters.
Specifications:
Dimensions (D x H):
|
56 x 71.2 mm |
|
| Weight: | 252g |
| Supply Voltage: | 6 - 30 VDC |
| Current: |
Heater off: 25 mA typical, 29 mA with compass enabled Heater on: 2A |
| Wind Speed Measurement: |
Range 0 - 75m/s Resolution 0.1m/s Accuracy: ±0.3m/s (0-16m/s) ±2% (16-40m/s) ±4% (40-75m/s) |
| Wind Direction Measurement: |
Range 0 to 360° Resolution 1° Sensor Accuracy 4° RMS Compass Accuracy 5° RMS |
| Acoustic Temperature Measurement: |
Resolution 0.1° Accuracy ±2° under the following conditions: Speed Range 5m/s - 60m/s Operating Range -20°C to +60°C Temperature Difference <10°C (between the air temperature and the actual temperature of the sensor) |
| Pressure Measurement: |
Range 260 - 1260hPa Resolution 0.0001hPa Accuracy ±0.5% |
| Data Update Rate: | Up to 10 Hz |
