Octopulse is a revolutionary imaging sensor based on ELWAVE's proprietary CEDAR technology, which draws inspiration from electrical sensory perception of tropical freshwater fishes. The compact and lightweight system is ideal for incorporation into a wide range of underwater vehicles, and is also highly suited to fixed-site installation.

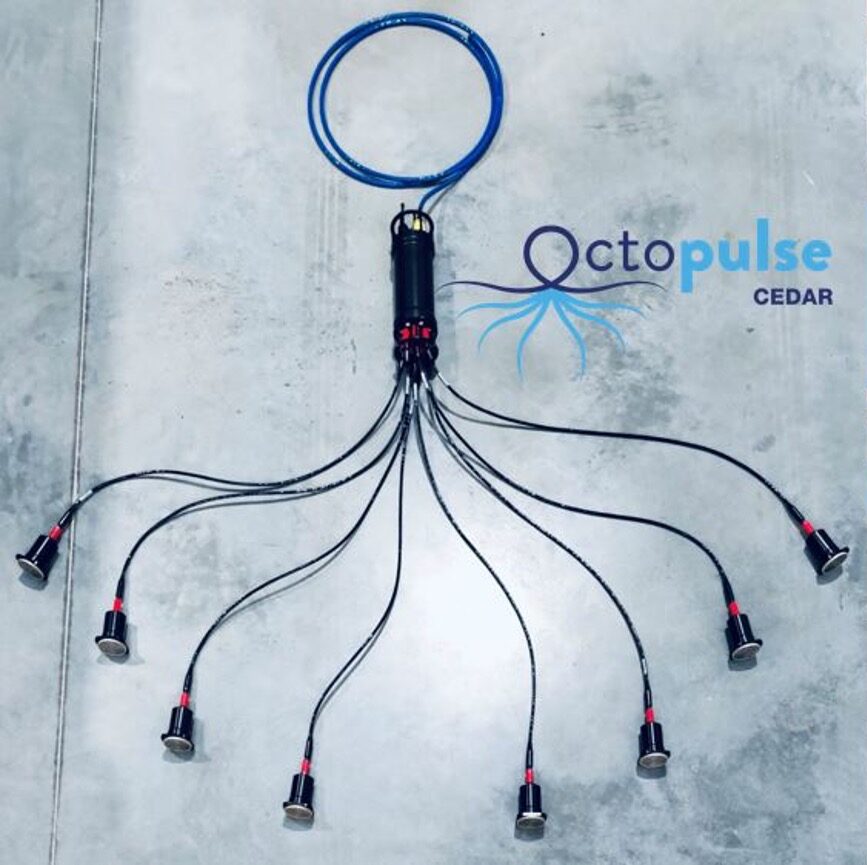

Utilizing an array of up to eight electrodes with cables up to 7 metres in length, the modular system provides highly effective detection, localisation and classification of metallic and non-metallic objects and surfaces, as well as buried objects at depths of 1 to 2 metres. It provides robust performance in water or in air, and in highly noisy environments.

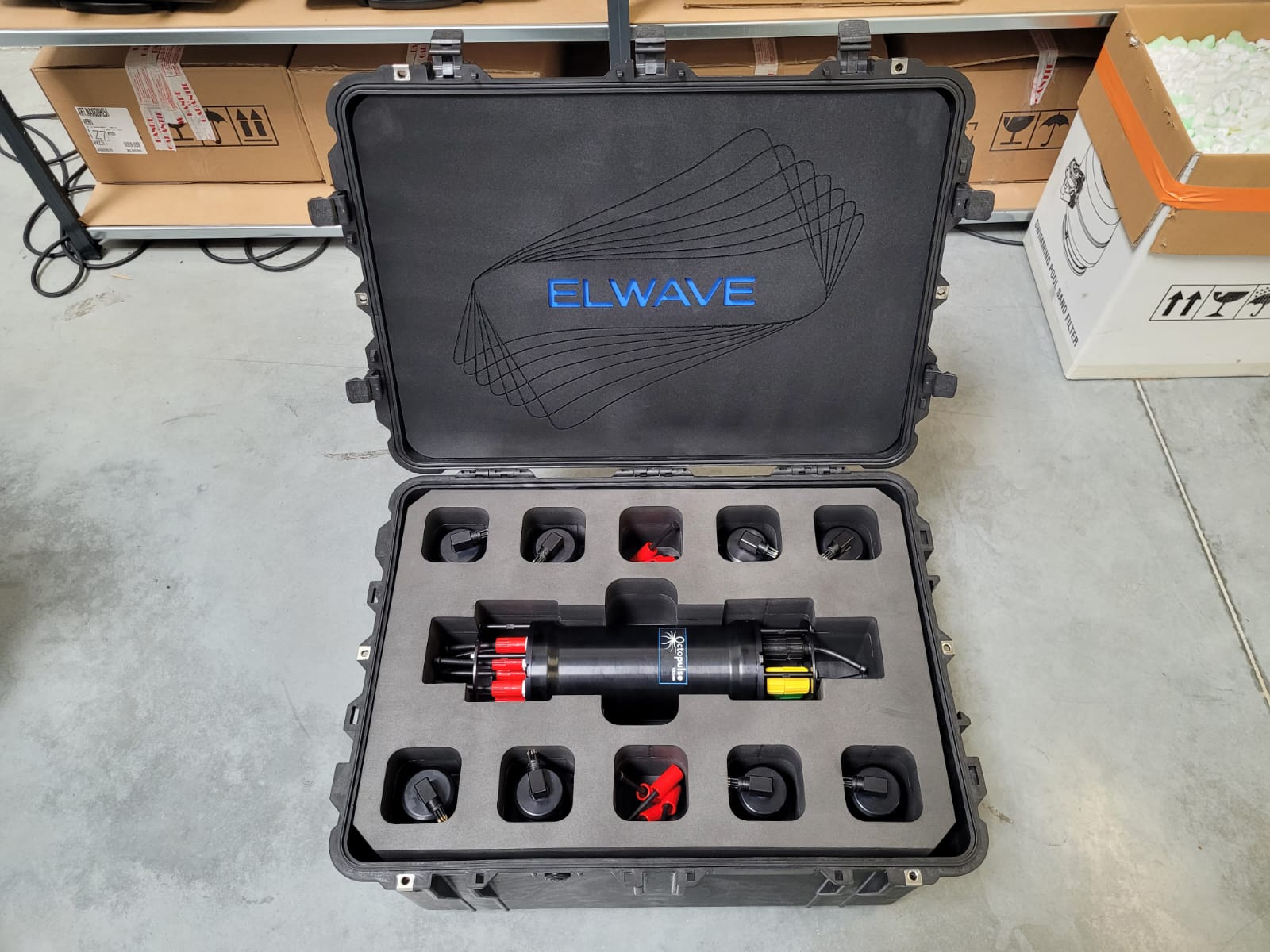

The export restriction-free Octopulse is provided as a complete kit comprising the sensor pod, up to eight electrodes and cables, and all necessary firmware and user interface software.
Specifications:
| Dimensions (D x L) |
145 x 450 mm (sensor pod) 90 x 120 mm (electrode) |
| Weight (in air/water) |
6.5 kg / 1.3 kg (sensor pod) 0.85 kg / 0.35 kg (electrode) |
| Power | 12-48 VDC, <70W |
| Depth Rating | 300 m |
| Operational Frequency Range | 100Hz - 20kHz |
| Max Emitted Signal | 2A, 24V |
| Image Resolution | ~1/10 to 1/100 of inter-electrode distance |
