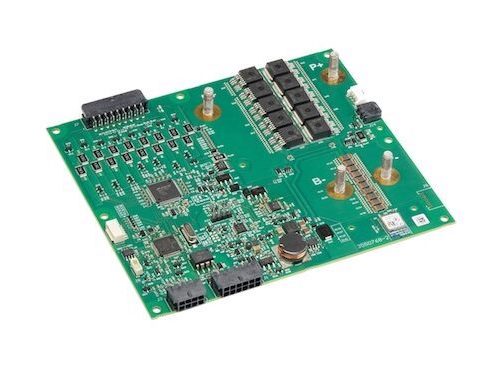

The IQ Power (V04306) is a compact Battery Management System (BMS) controller for integrated packs requiring high-current sensing and configurable protection. It supports 3S to 16S arrangements, monitors up to five NTC temperature inputs, and provides 100 mA cell balancing as standard or 180 mA as an option. The controller measures cell voltage, temperature, and pack current while supporting designs both with and without contactor driving. Configuration can be adjusted for different battery chemistries and pack sizes.
Current and high-voltage measurements are provided through the V07043 Power Sensing Module family, with 100 A, 200 A, and 300 A options available. The sensing hardware can be integrated with the V04306 for reduced wiring and a smaller installed footprint. It can also be mounted separately and connected by a standard harness to accommodate different mechanical layouts. Optional secondary protection supplements the controller’s internal safety circuits, while multiple CAN interfaces, BLE, Wi-Fi, programmable GPIO, and LED status output support integration, control, and diagnostics.
Specifications:
| Cell Voltage Sensing: | 3S to 16S |
| Cell Temperature Sensing: | Up to 5 NTC inputs |
| Cell Balancing: | 100 mA standard 180 mA optional |
| Safety Protections: | Redundant OVP Redundant UVP Redundant OTP Redundant UTP |
| Current and Thermal System Management: | Heater drive 5 A current sensing |
| I/O Control: | On/off control input 4 programmable GPIO |
| Energy and Health Algorithms: | μP-based SOC / SOH estimation |
| Contactor / Fuse Control: | Redundant OCC / OCD / SC protection High-side MOSFET drive Controllable fuse drive |
| Current Measurement: | R-shunt based current sensing |
| Connectivity: | 1 non-isolated CAN 3 isolated CAN 1000 V isolation |
| Wireless and User Interface: | BLE and Wi-Fi support LED status output |
| Functional Safety: | All safety functions fully supported by internal circuits |
