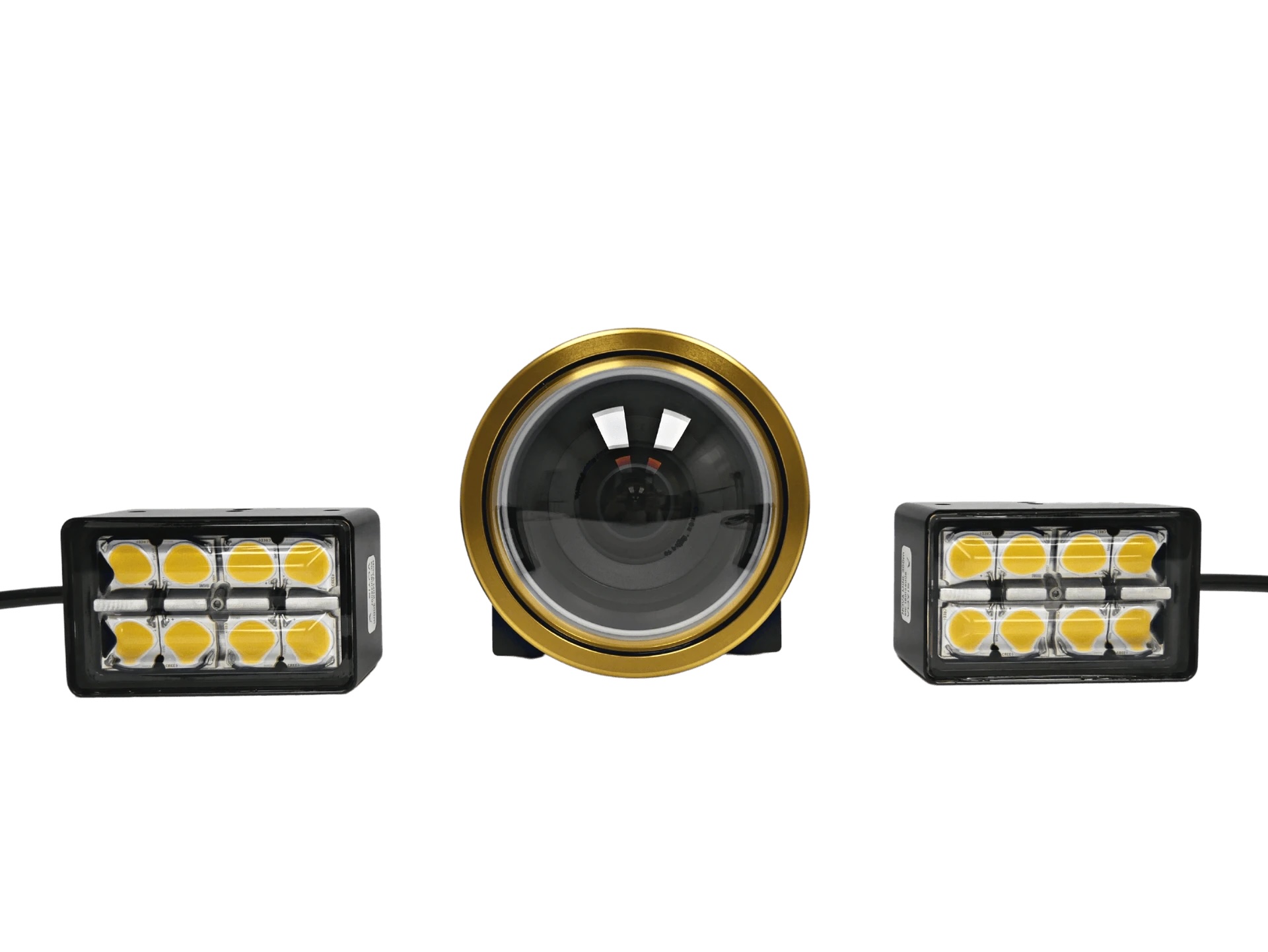

The Discovery Vision System provides ROVs with low-latency 4K video capabilities that can be used for enhanced situational awareness during piloting, as well as for high-resolution still image capture for 3D modelling. The system tightly integrates and synchronizes Voyis' high-intensity Nova Mini Lights with advanced cameras to provide the sharpest and clearest possible underwater imaging with even illumination.
Onboard edge computing allows users to do away with the need for expensive third-party processing. The system can be easily integrated into a wide range of subsea vehicles, with an API that directly supports ROS2 operating systems. Discovery also support DDS (data distribution standard), allowing all data outputs to be published over the vehicle network for streaming to multiple endpoints.
Specifications:
| Power |
Input: 24 VDC (21-28V) Camera: 35W @ 30Hz LEDs: 43W @ 20 FPS, 2ms Strobe |
| Range | 0.5 – 5.0 m |
| Camera |
8.1MP (2816x2816) Colour sensor 20 FPS (1:1), 30 FPS (16:9) |
| Lens | 130°x130° - Fixed Focus, Digital Zoom |
| Lighting | 125,000 lumens with 2x Nova Mini Lights |
| Depth Rating | 300m |
