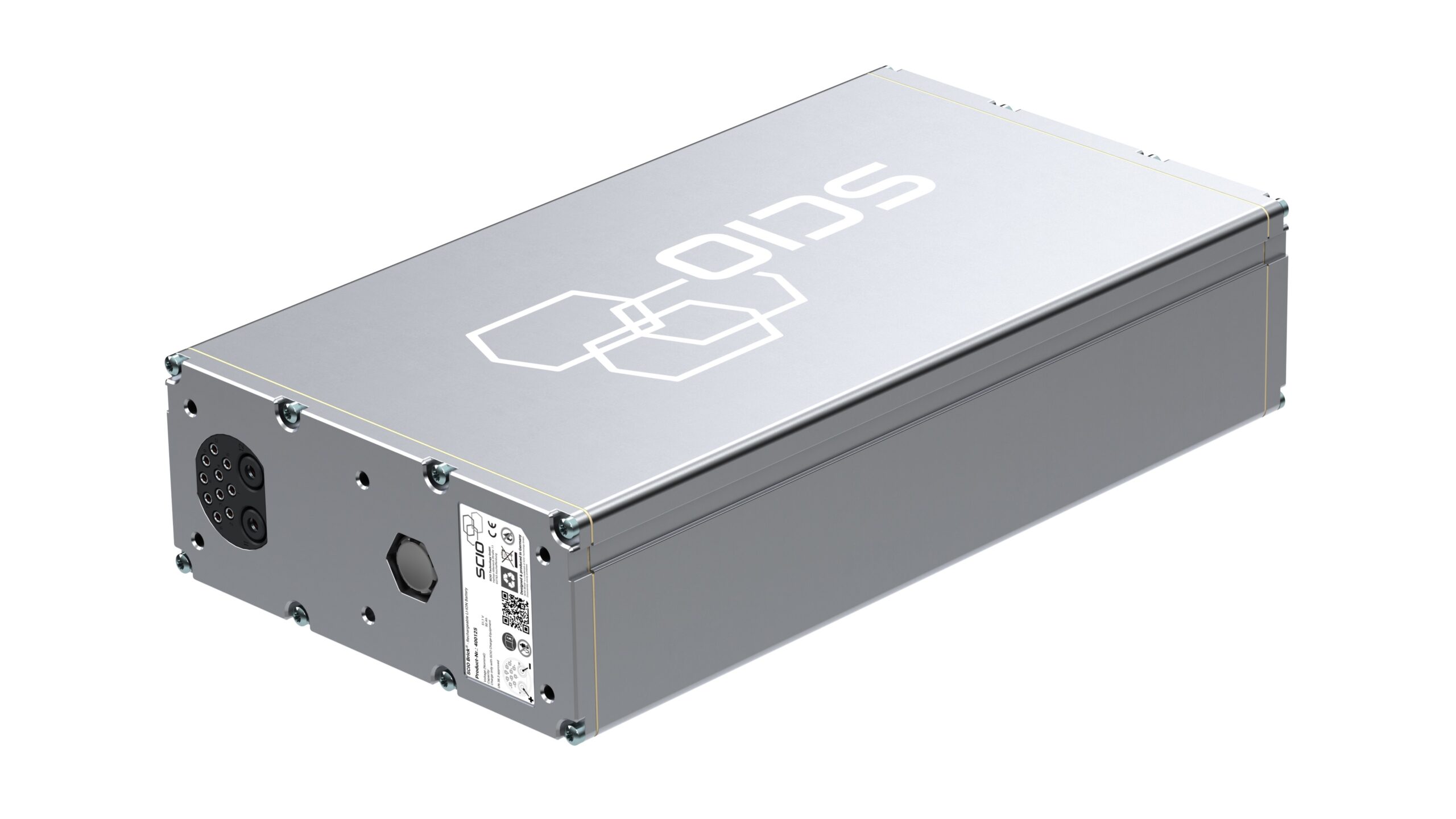

The SCIO Brick® 2.5 is a compact and lightweight high-density battery unit delivering 48V output and 2.5 kWh of energy. Designed with a modular and scalable architecture, it allows up to six units to be combined together to tailor a power solution to your specific requirements. Featuring rugged IP67-rated housing, the SCIO Brick® is designed to withstand harsh operating environments and is ideal for a variety of marine vessel and onshore charging infrastructure applications.
Designed from the ground up to ensure the utmost in safety and reliability, the SCIO Brick®'s advanced BMS delivers cell-level monitoring and real-time diagnostic information that allows preventative action to be taken before critical temperatures are reached. It is also equipped with an integrated barrier that effectively prevents fire propagation between cells even under highly demanding conditions.
Specifications:
| 1 Brick | 2 Bricks | 6 Bricks | |
| Dimensions (L x W x H per brick) | 399 x 220 x 92 mm | ||
| Total Weight: | 15.7 kg | 31.4 kg | 92.4 kg |
| Voltage: | System 48V Nominal 51.1V Range 42 - 58V |
||
| Capacity: | 50 Ah gross 45 Ah net |
100 Ah gross 90 Ah net |
300 Ah gross 270 Ah net |
| Energy: | 2.5 kWh | 5.0 kWh | 15 kWh |
| Discharge Current: | Max 140A Nominal 50A |
Max 280A Nominal 100A |
Max 840A Nominal 300A |
| Charging Current: | 25A | 50A | 125A |
| Number of Cycles: | 1500 - 3000 | ||
