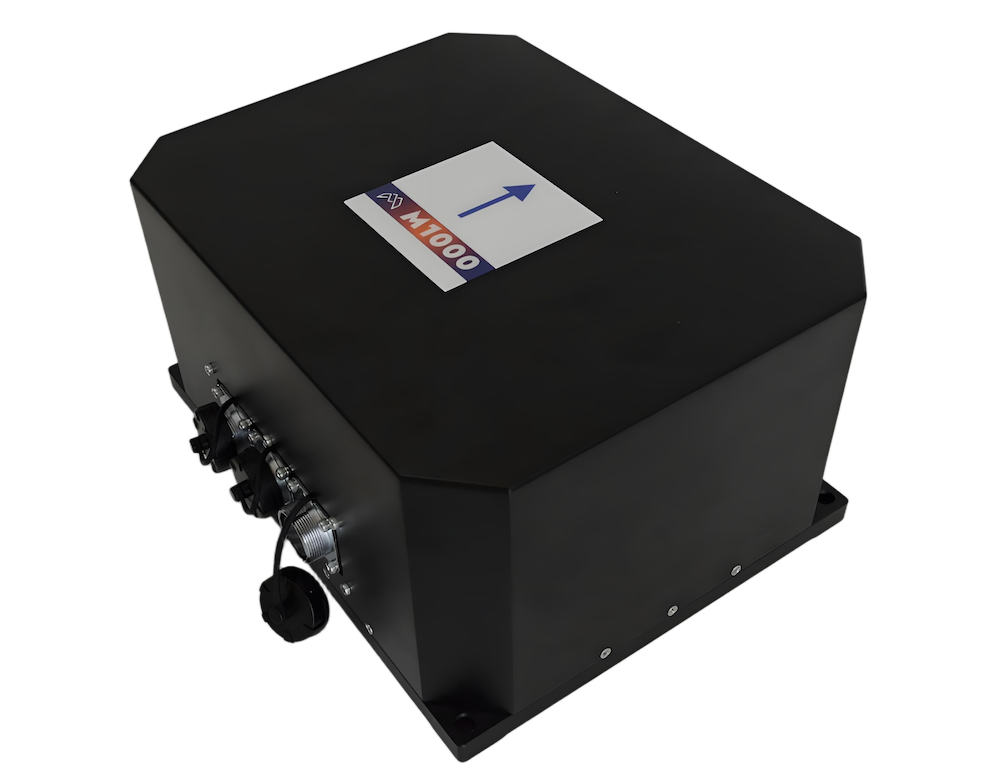

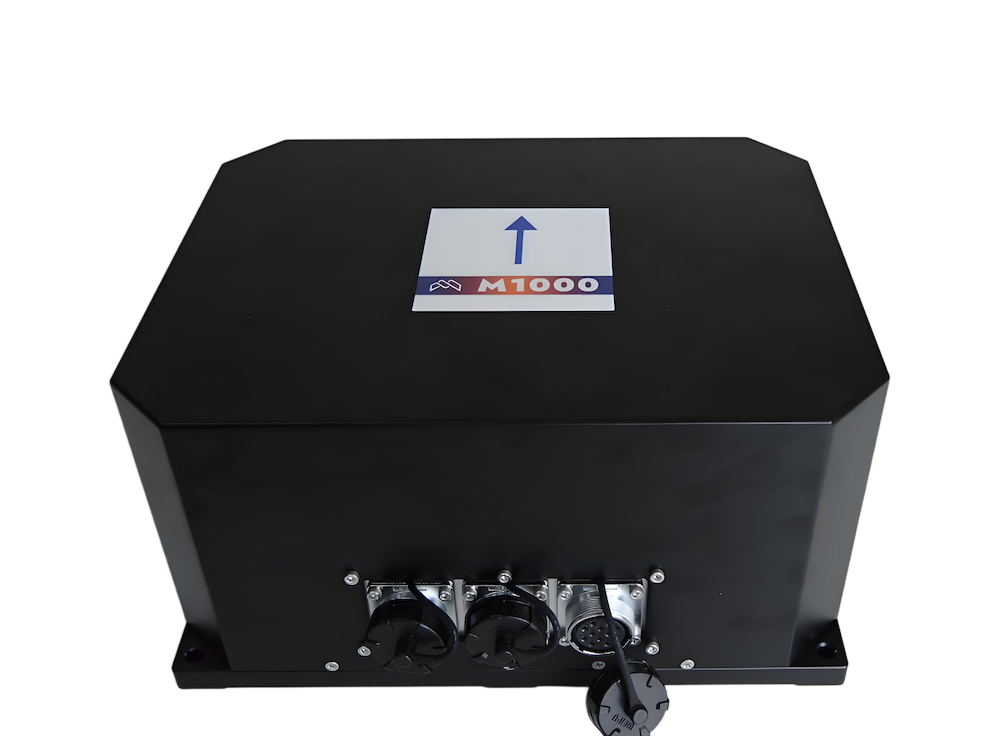

M1000
The M1000 is an advanced FOG-based compass that automatically and precisely measures vessel angular motion, outputting critical heading, pitch and roll information for navigation and control of crewed and uncrewed vessels and marine equipment.
The robust unit is maintenance-free with a long service life, doing away with the need for regular gyro replacements. Data can be output via serial interfaces, using RS-232, RS-422 or NMEA 0183 protocols.
Specifications:
| Dimensions: | 177 x 202 x 138 mm |
| Weight: | ≤5 kg |
| Power: | ≤20W |
| Heading Accuracy: (RMS, 1σ) |
≤0.5o sec ϕ (pure inertial 1h) |
| Attitude Accuracy: (RMS, 1σ) |
≤0.02o static ≤0.05o dynamic |
| Heave Accuracy: (RMS) |
≤5cm or 5% (take larger value) |
| Data Output Frequency: | 0 – 100 Hz configurable |
