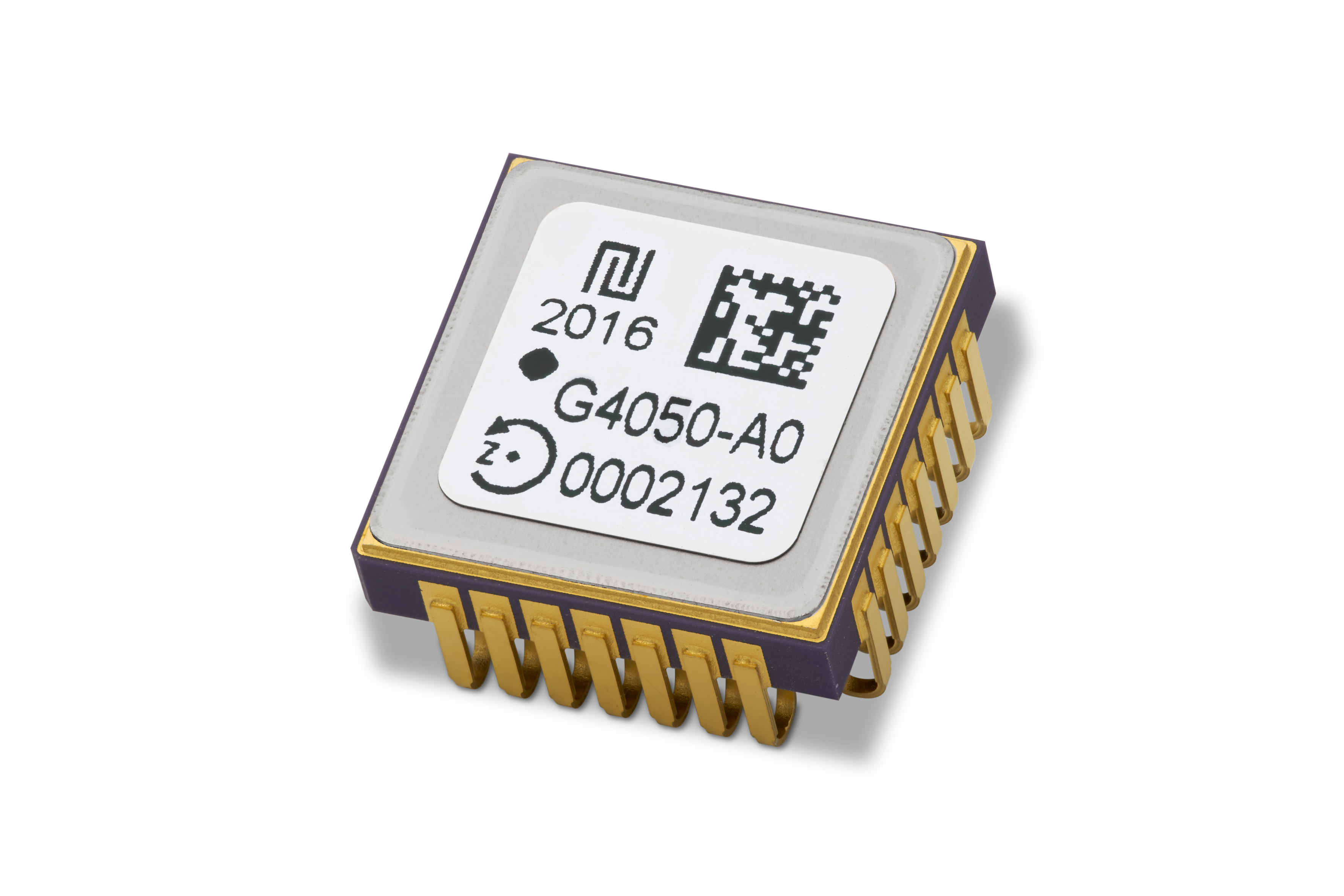

The GYPRO®4050 is a single-axis closed-loop digital MEMS gyroscope with extremely low noise, providing an ideal alternative to costlier and bulkier FOG (fiber optic gyro) and DTG (dynamically tuned gyro) systems. Housed in a miniature and lightweight hermetically-sealed ceramic SMD package, it is available in three resonant frequency configurations, allowing designers to minimize mechanical cross-coupling when creating multi-axis systems.
The versatile device provides a 24-bit SPI interface for easy integration into electronic designs, and features built-in temperature compensation for precise output under the entire temperature range. The unit's self-test capability enables verification of sensor operation without needing to remove it from the system.
With enhanced performance, stability and high-precision angular rate measurement, the GYPRO®4050 is an excellent choice for MRUs, VRUs, IMUs and INS designed to serve marine applications such as heave compensation and dynamic positioning.
Specifications:
| Dimensions: | 12 x 12 x 5.5 mm |
| Weight: | 1.4 g |
| Power: | 5V, 25 mA |
| Input Range: | ±14 g |
| Scale Factor Residual Temperature Error: | 600 ppm |
| Bias Instability: | 0.2 °/h |
| Bias In-run Stability: | 7 °/h |
| ARW: | 0.02 °/√hr |
| VRE: | 1 °/h/g² |
